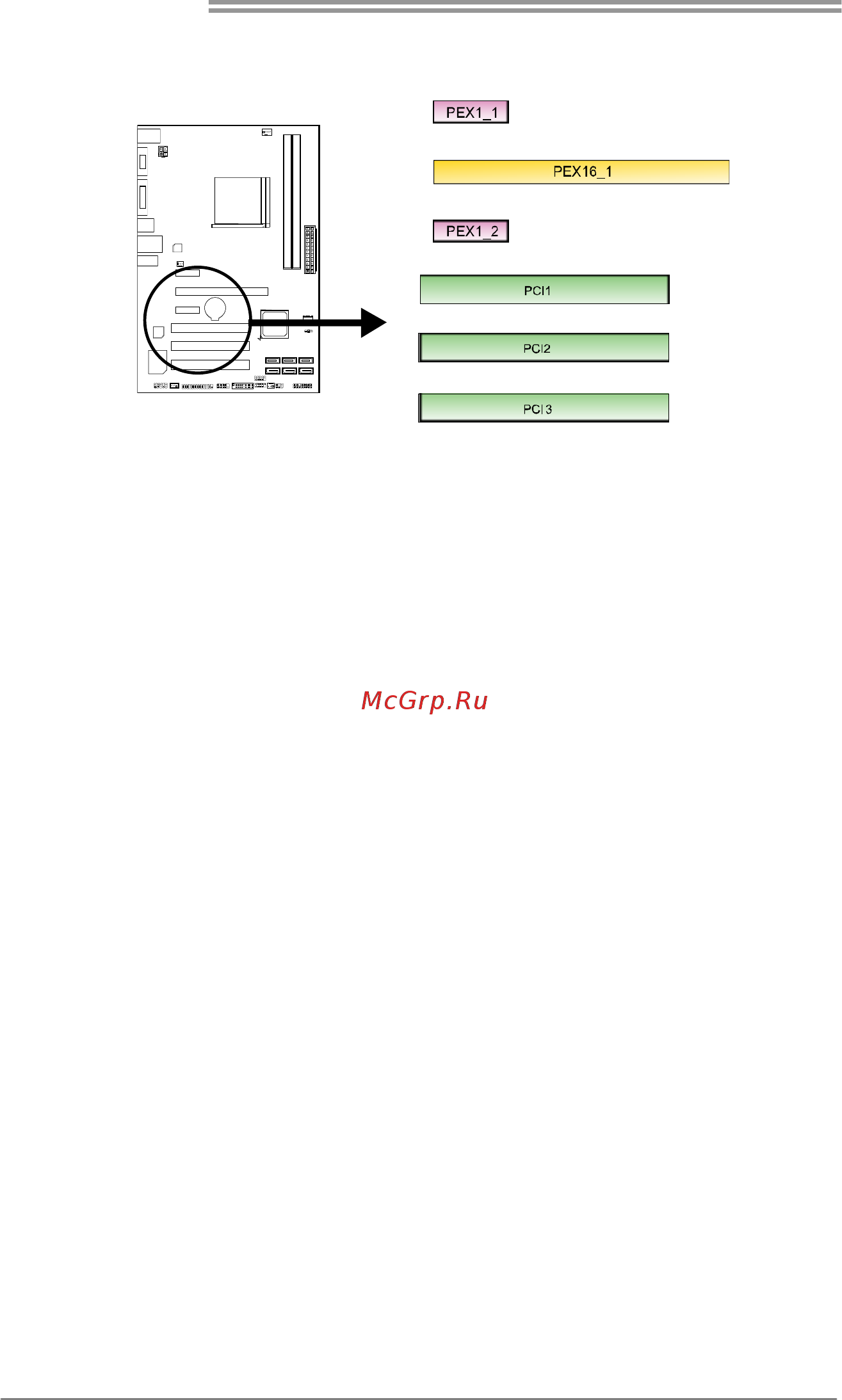

2.5 Expansion Slots

PEX16_1: PCI-Express Gen3 x16 Slot

- PCI-Express 3.0 compliant.

- Maximum theoretical realized bandwidth of 16GB/s simultaneously per

direction, for an aggregate of 32GB/s totally.

- Only FM2+ processors can support PCIe 3.0.

PEX1_1/1_2: PCI-Express Gen2 x1 Slot

- PCI-Express 2.0 compliant.

- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total

PCI1/ PCI2/ PCI3: Peripheral Component Interconnect Slot

- The PCI slots support cards used in PCs include: LAN cards, sound cards,

modems, TV tuner cards and other cards that comply PCI standard.

Install an Expansion Card

You can install your expansion card by following steps:

1. Read the related expansion card's instruction document before install the

expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the

computer.

3. Place a card in the expansion slot and press down on the card until it is

completely seated in the slot.

4. Secure the card’s metal bracket to the chassis back panel with a screw.

5. Replace your computer's chassis cover.

6. Power on the computer, if necessary, change BIOS settings for the

expansion card.

7. Install related driver for the expansion card.
