Biostar TA70U3-LSP Версия 6.x [5/42] Rear panel connectors

TA70U3-LSP

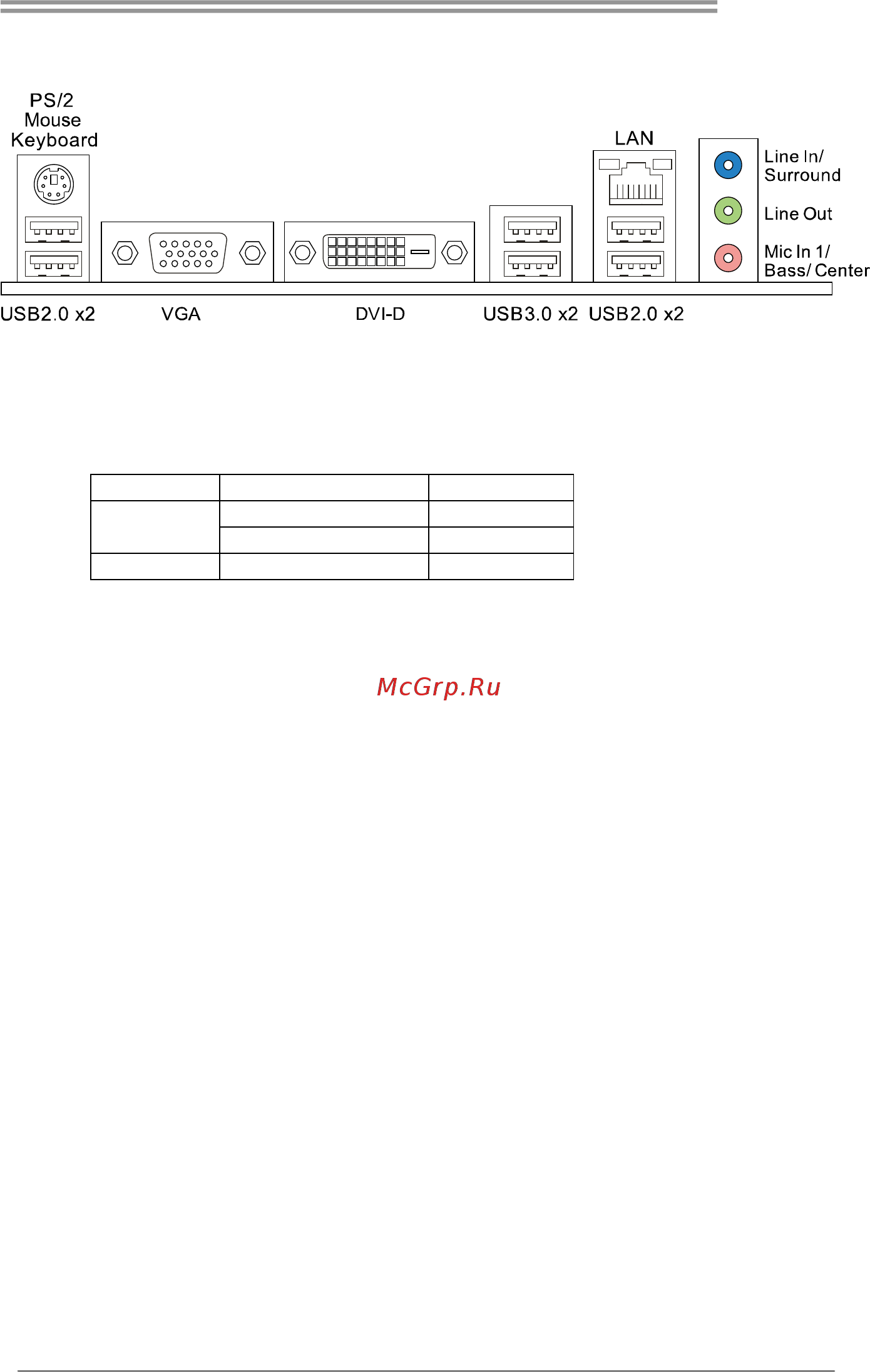

1.4 Rear Panel Connectors

Note 1: DVI-D / VGA Output require an AMD family processor with intedrated graphics.

Note 2: Since the audio chip supports High Definition Audio Specification, the function of each

audio jack can be defined by software. The input / output function of each audio jack

listed above represents the default setting. However, when connecting external

microphone to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.

Note 3: Maximum resolution:

Outputs Maximum resolution Bit Depth

DVI-D

1920 x 1200 @60Hz 30 bpp

2560 x 1600 @60Hz 24 bpp

VGA 1920 x 1600 @60Hz --
