Planet FT-902S15 [12/40] Chassis installation and rack mounting

-9-

2.2.2 Chassis Installation and Rack Mounting

To install the media converter in a 10-inch or 19-inch with standard rack, follow the instructions described below.

Step 1: Place your FT-90X on a hard flat surface, with the front panel positioned towards your front side.

Step 2: Carefully slide in the module until it is fully and firmly fitted into the slot of the chassis.

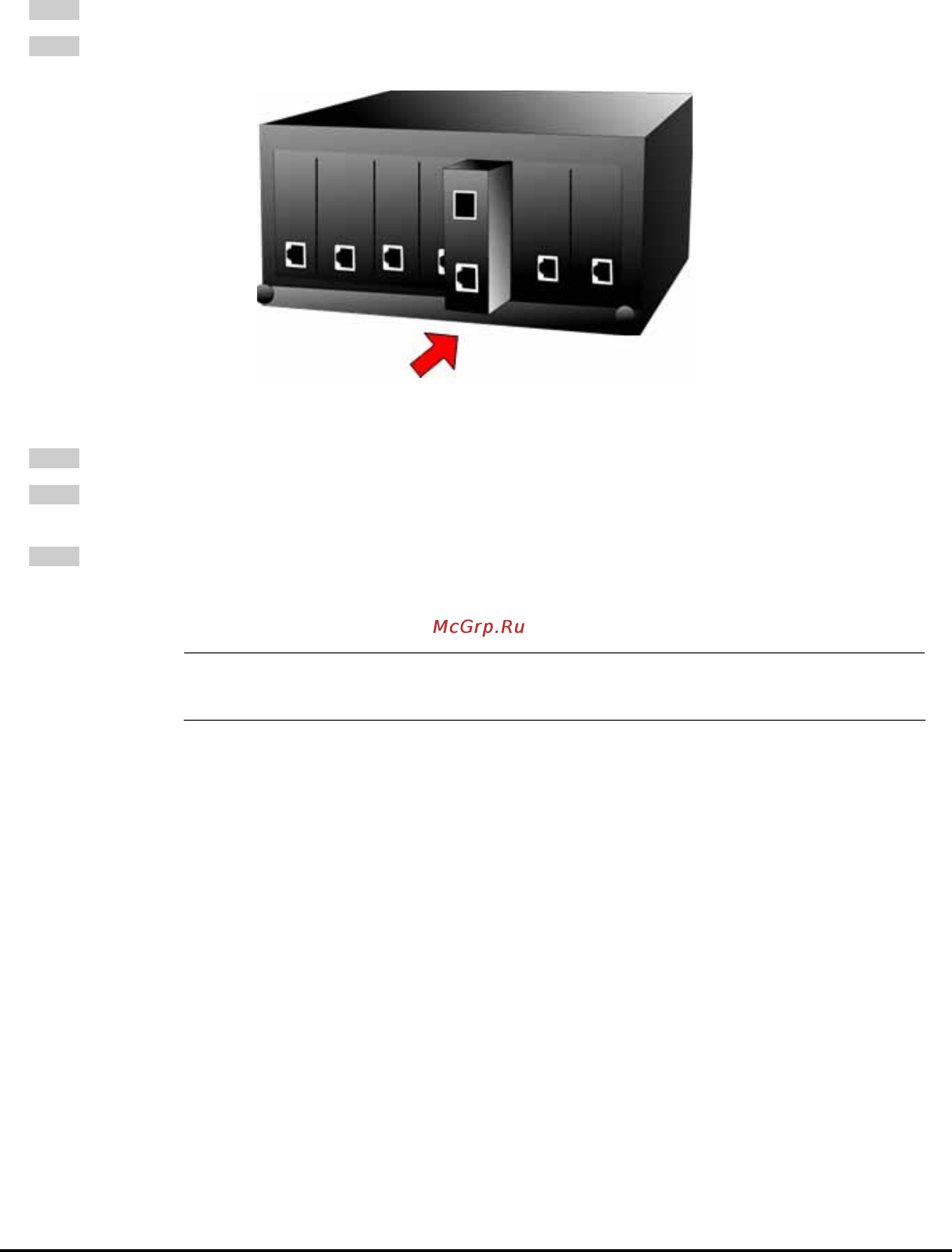

Figure 2-1: Insert a media converter into an available slot

Step 3: Attach a rack-mount bracket to each side of the Chassis with supplied screws attached to the package.

Step 4: After the brackets are attached to the chassis, use suitable screws to securely attach the brackets to the rack, as

shown in Figure 2-2.

Step 5: Precede with the steps 4 and steps 5 of session 2.2.1 Stand-alone Installation to connect the network cabling

and supply power to your switch.

Caution:

You must use the screws supplied with the mounting brackets. Damage caused to the parts by using

incorrect screws would invalidate your warranty.
