-20-
4.4 Converter Configuration
This page allows setup Management Port, Loop Back Reply, Broadcast Storm Control, Class of Services and LLR
Mode. Press the “Apply” button to take affect. The screen in Figure 4-8 appears.

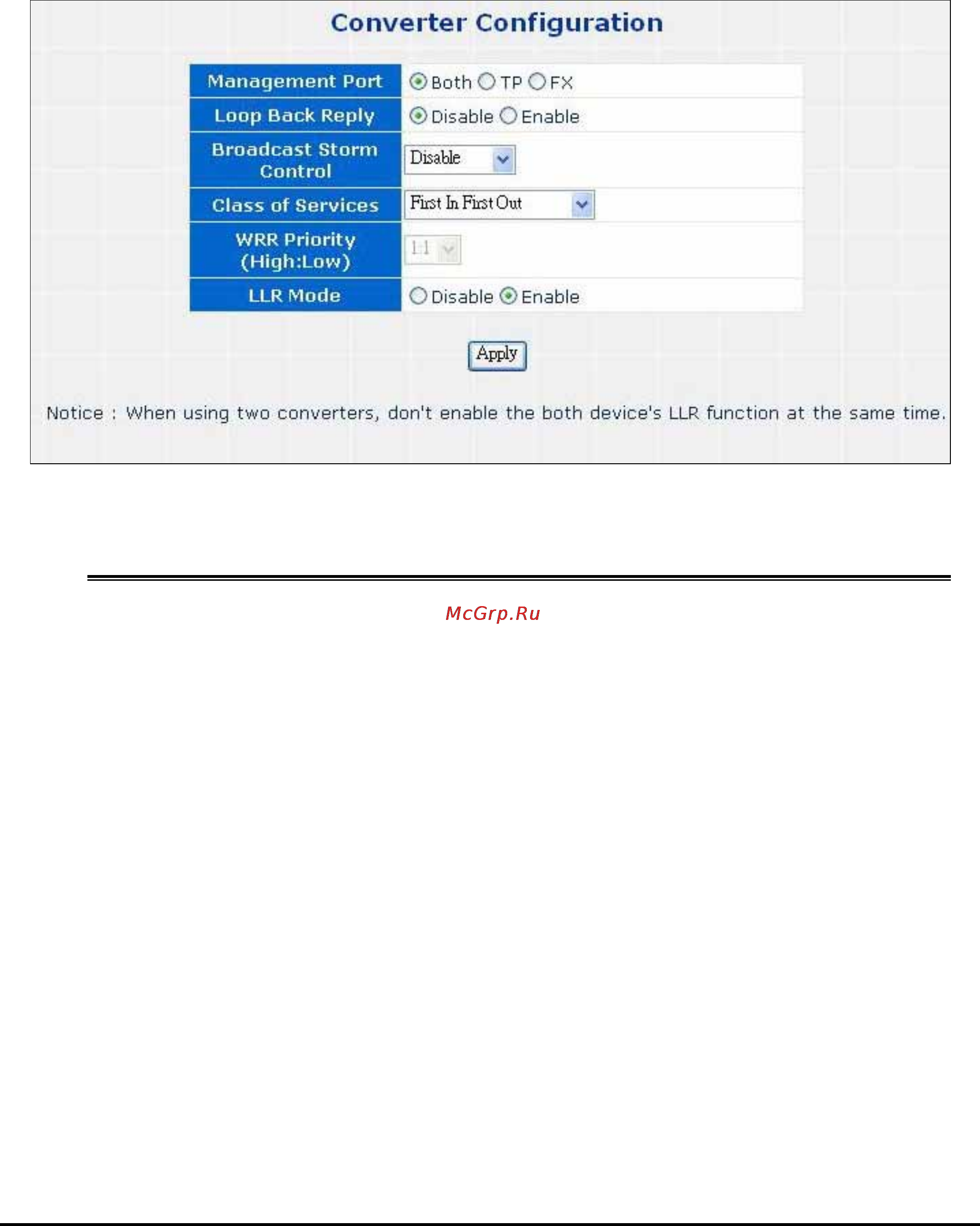

Figure 4-8 Converter Configuration screen
The page includes the following fields:
• Management Port
Allow to filter the Web management packets for this converter by income port.
The possible field values are:
• Both – Accept management packets from both TP and Fiber ports
• TP – Accept management packets only from TP port
• FX– Accept management packets only from Fiber port
The default value is Both.
• Loop Back Reply
Allow the converter to reply for Loop Back Test or not.
For more detail about the Loop Back Test and Loop Back Reply function, please
refer to chapter 4.7.1.
• Broadcast Storm
Control
Allow disable or enable broadcast storm control on the converter. The possible
field values are:
• Disable
• Allow 20%
• Allow 50%
• Allow 80%
The default value is Disable.
• Class of Services
Allow to choose different policy for Class of Service on the converter. The
possible field values are:
