8

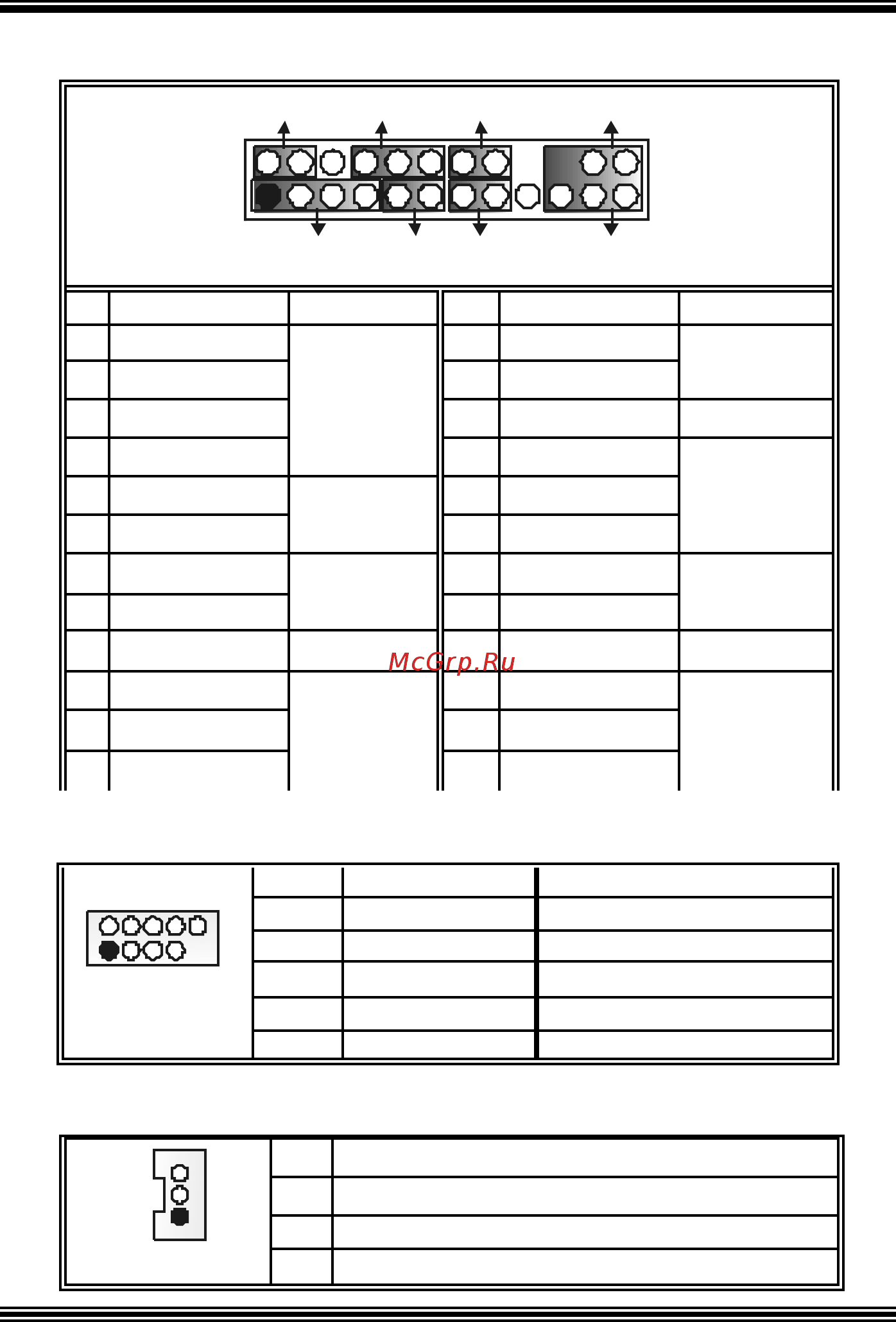

Front Panel Connector: JPANEL1
Front USB Header: JUSB1/2
Pin Assignment Pin Assignment
1
+5V(fused)
2
+5V(fused)
3
USBP4-
4
USBP5-
5
USBP4+
6
USBP5+
7
Ground
8
Ground
2
1
1
0
9
JUSB1/2
9 KEY 10 NA
Wake On LAN Header: JWOL1
Pin Assignment
1 +5V_SB
2
Ground
1
JWOL1
3 Wake up
SPK
PWR_LED
HLED
SLP
RST
2
24
IR
123
IRON/OFF
(+) (-)
(+) (-)(+)
Pin Assignment Function Pin Assignment Function
1 +5 V 2 Sleep Control
3 NA 4 Ground
Sleep
Button
5 NA 6 NA NA
7 Speaker
Speaker
Connector
8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-)
Hard Drive
LED 12 Power LED (-)
POW ER
LED
13 Ground 14 Power Button
15 Reset Control
Reset
Button
16 Ground
Power-on
Button
17 NA 18 KEY
19 NA 20 KEY
21 +5 V 22 Ground
23 IRTX
IrDA
Connector
24 IRRX
IrDA
Connector
JPANEL1
