9

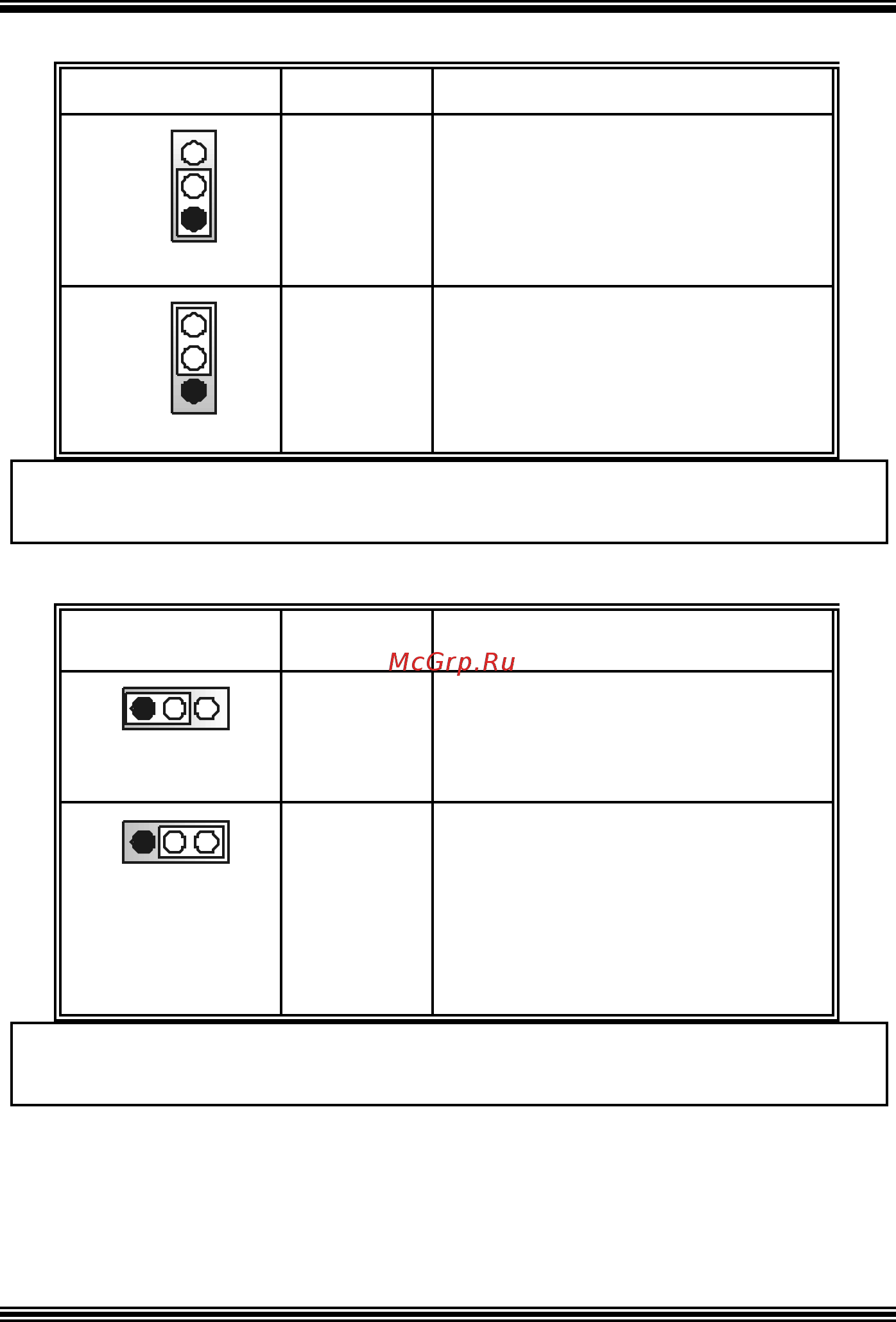

Power Source Selection for Keyboard/ Mouse: JKBV1
JKBV1 Assignment Description
1
3
Pin 1-2 c los e
+5V
+5V for key board and mouse
1
3
Pin 2-3 c los e
+5V Standby
Voltage
PS/2 Mouse and PS/2 Keyboard are
powered with +5V standby voltage
Note: In order to power-on keyboard and mouse function, “JKBV1” jumper
cap should be placed on pin 2-3.
Power Source Selection for USB: JUSBV1/ JUS BV2/ JUS BV4
JUSBV1/JUSBV2/
JUSBV4
Assignment Description
1 3
Pin 1-2 close
+5V
JUSBV1: 5V for JUSB1 port
JUSBV2: 5V for JUSBLAN1 port
JUSBV4: 5V for JUSB2 port
1 3
Pin 2-3 close
+5V Standby
Voltage
JUSBV1: JUSB1 port powered with
standby v oltage of 5V
JUSBV2: JUSBLAN1 port powered wit
h
standby v oltage of 5V
JUSBV4: JUSB2 port powered with
standby v oltage of 5V
Note: In order to power-on USB devices function, “JUSBV1/JUSBV2/
JUSBV4” jumper cap should be placed on pin 2-3 respectively.
