4
PS/2 mouse and PS/2 keyboard.
2 USB2.0 ports.
b. Front Side
1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
4 USB2.0 ports.
1 front audio header.
Dimensions
ATX Form Factor: 24.4cm X 30.4cm (W X L)
B. BIO S & Software
BIOS
Award legal Bios.
APM1.2.
ACPI.
USB Function.
Software
Supports CPU Savior
TM
, 9t h Touc h
TM
, FLASHER™, WinFlasher
TM
, StudioF un!
TM
(opt ional) and W atc hdog
TM
.
Off ers the highest performance for Windows 98 SE, Windows 2000, Windows Me,
Windows XP, SCO UNIX etc.
Package contents
HDD Cable X1
FDD Cable X1
User’s Manual X1
USB Cable X1 (optional)
Rear I/O Panel f or ATX Case X1 (optional)
Fully Setup Driver CD X1
StudioFun! Application CD X1 (optional)

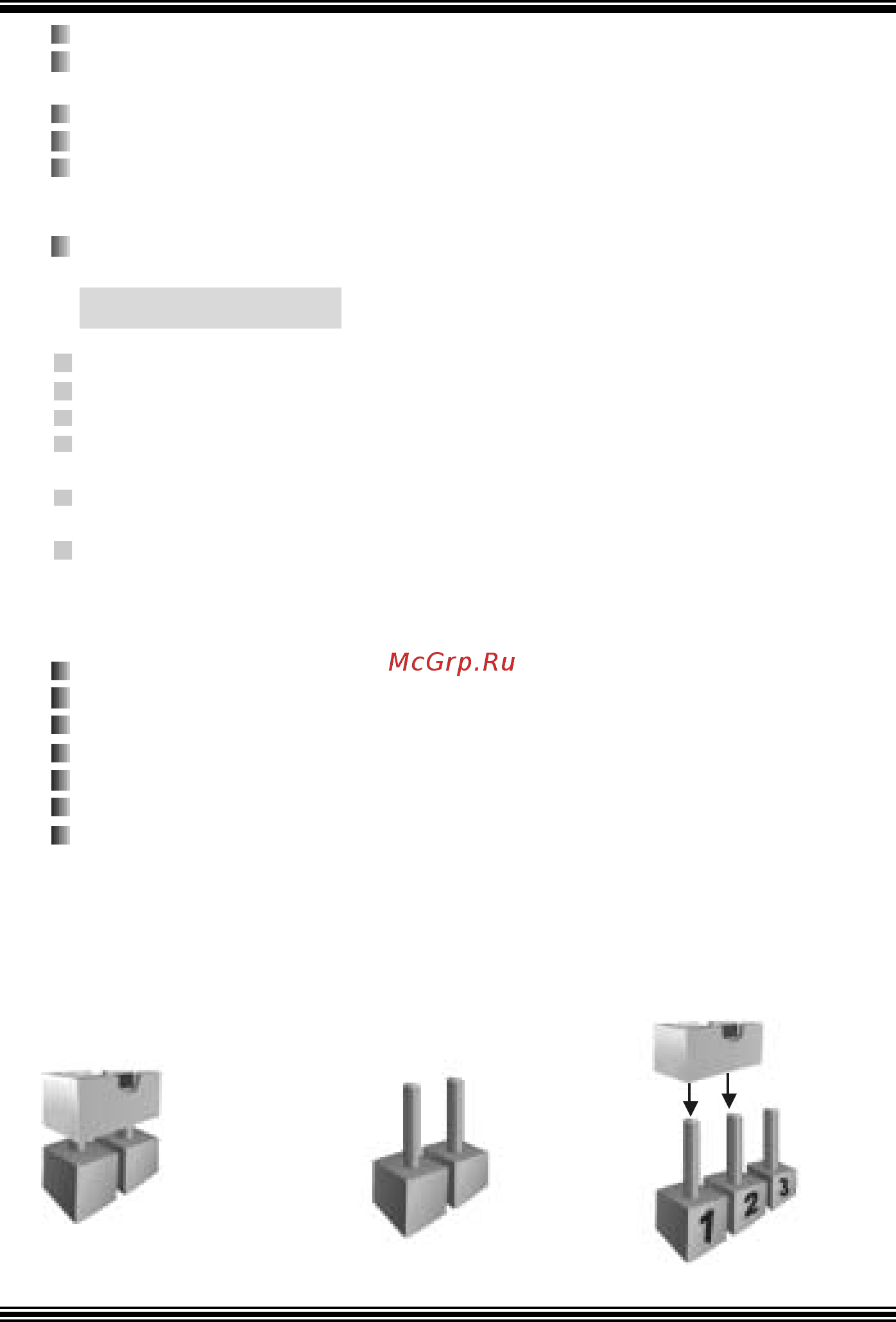

How to setup Jumper
The illustration shows how jumpers are setup. When the Jumper cap is placed on pins, the
jumper is “close”. If no jumper cap is placed on the pins, the jumper is ”open”. The
illustration shows a 3-pin jumper whose pin 1and 2 are “close” when jumper cap is placed
on these 2 pins.
Jumper close Jumper open Pin1-2 close
