Biostar M7NCD Pro [4/69] Component index
![Biostar M7NCD Pro [4/69] Component index](/views2/1711943/page4/bg4.png)
2

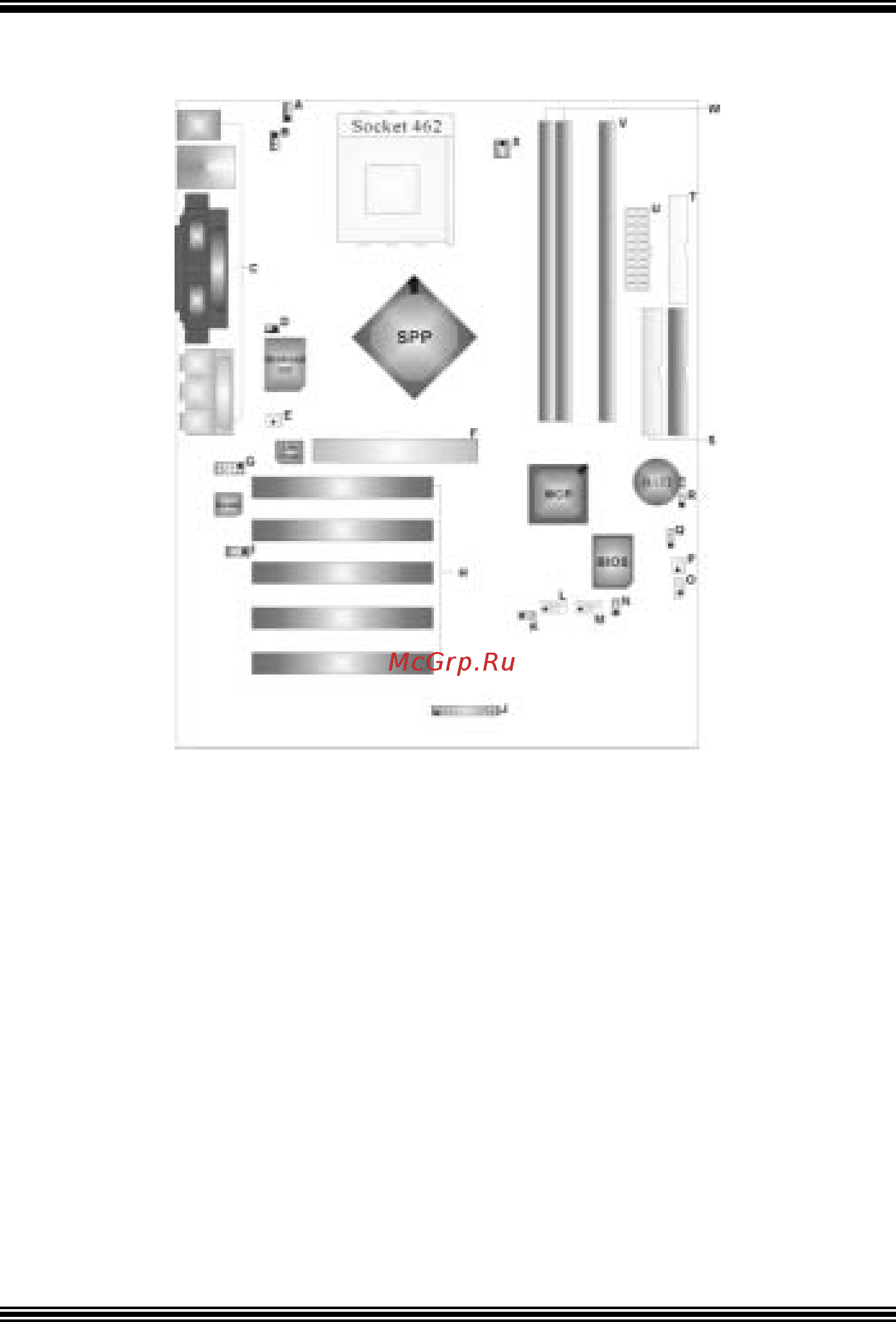

Component Index
A. 5V/5VSB Selection for Keyboard L. Front USB Header (JUSB1)
and mouse (JKBV1) M. Front USB Header (JUSB2)
B. Power Source Selection for USB N. Power Source Selection for USB
(JUSBV2) (JUSBV4)
C. Back Panel Connector O. W ake On LAN Header (JW OL1)
D. Frequency Selection (JCLK3) P. System FAN Header (JSF AN1)
E. North Bridge Fan Header (JNFAN1) Q. Clear CMOS Function (JCMOS)
F. Accelerated Graphics Port Slot R. Case Open Connector (JC 1)
(AGP1) S. IDE Connectors (IDE1-2)
G. Front Audio Header (JF_AUDIO1) T. Floppy Disk Connector (FDD1)
H. PCI BUS Slots (PCI1-5) U. ATX Power Connector (JATXPWER1)
I. CD-ROM Audio-In Header (JCDIN1) V. DIMM Modules (DIMMA1)
J. Front Panel Connector (JPANEL1) W . DIMM Modules (DIMMB1-2)
K. Power Source Selection for USB X. CPU Fan Connector (JCFAN1)
(JUSBV1)
