Biostar NF4ST-A9 [10/64] Central processing unit cpu

NF4ST-A9

CHAPTER 2: HARDWARE INSTALLATION

2.1 CENTRAL PROCESSING UNIT (CPU)

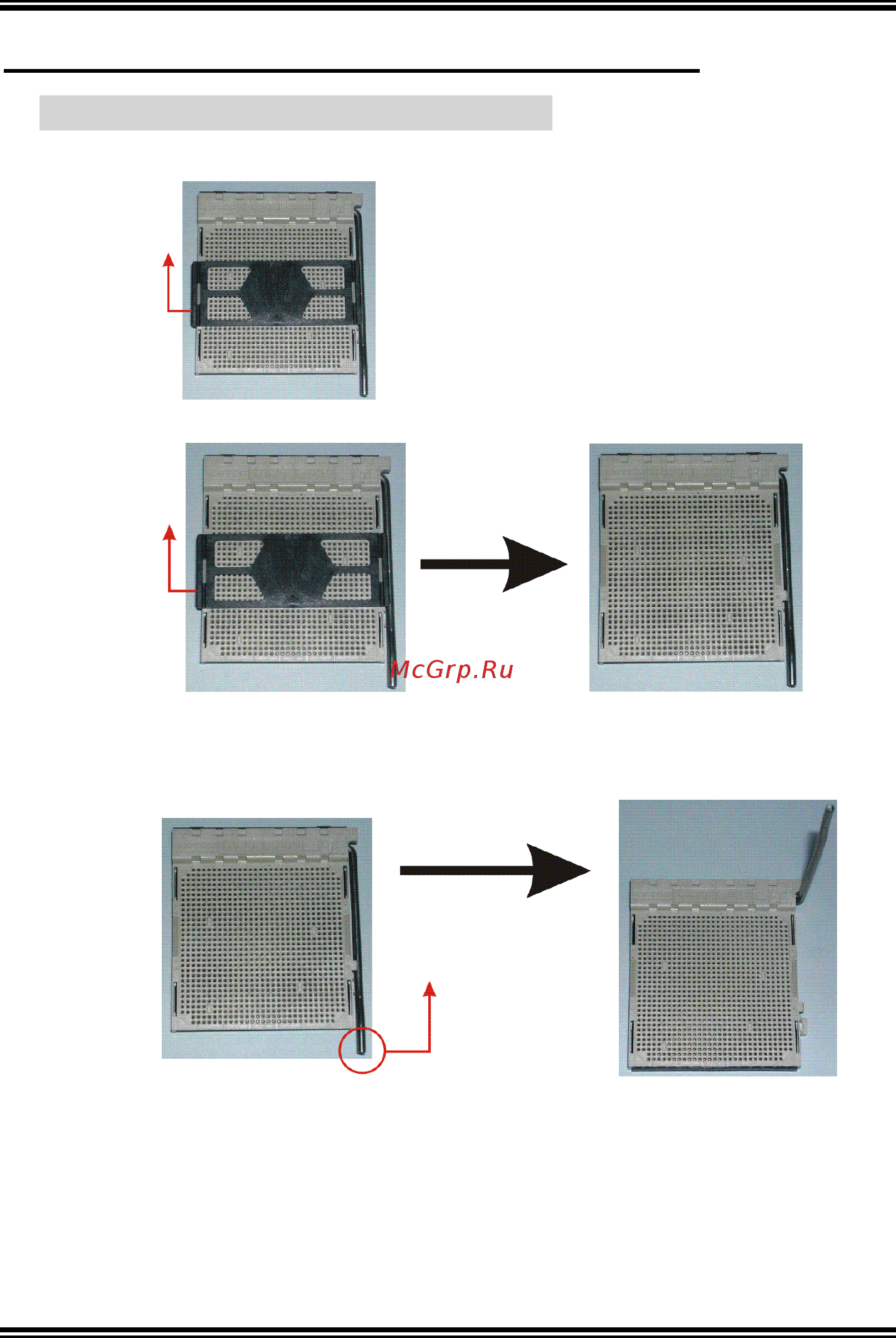

Step 1: Remove the socket protection cap.

Step 2: Pull the lever sideways away from the socket and then raise the

lever up to a 90-degree angle.
