Chapter 3 Configuration Utility
The Configuration Utility is a powerful tool that helps you to configure WL-U357 easily and monitor the
status of wireless communication.

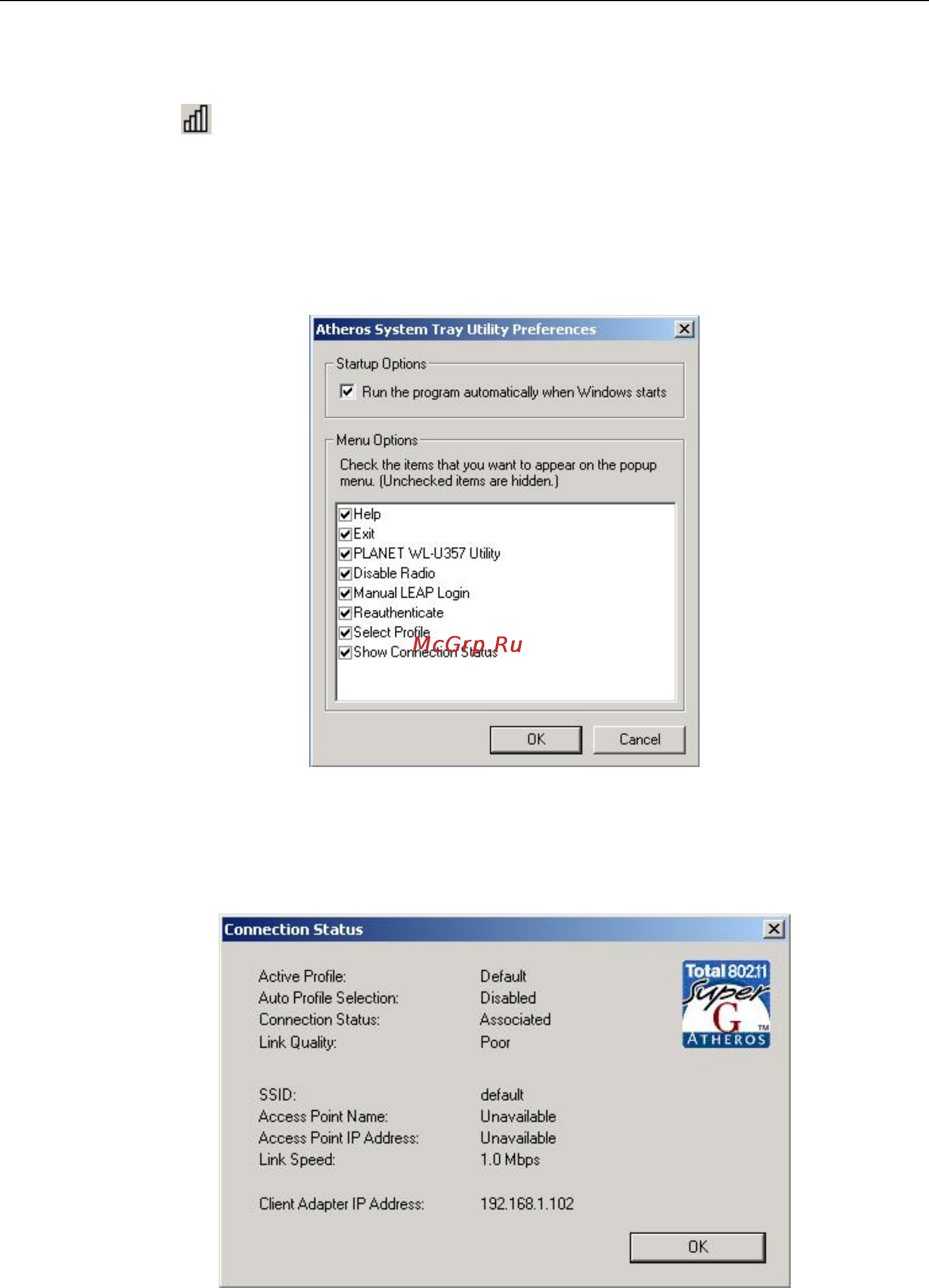

Right-click the icon
in the system tray, there are some items for you to use the configuration utility:
Help: Show Manual Webpage.
Exit: Select this to close the configuration utility tool.
Open PLANET WL-U357 Utility: It enables you to open the configuration utility tool.
Preferences: Select what you want to appear on the popup menu.
Disable Radio: Disable RF signals
Select Profile: Select profile that you want to use
Show Connection Status: Show Connection Status such as Active Profile etc.
3.1 Current Status
When you open the configuration utility, the system will scan all the channels to locate available access
points and wireless stations within the signal coverage. Then it will automatically connect to the access
11
