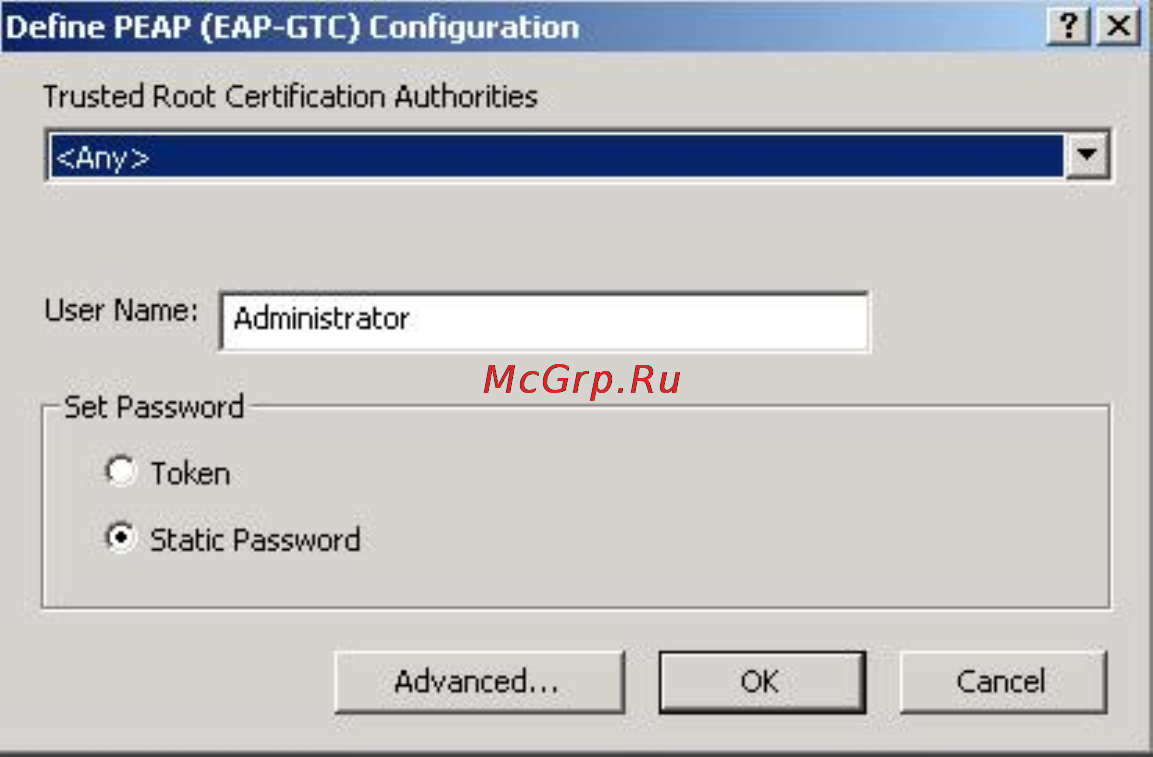

3. Click the Configure button.
4. Select the appropriate network certificate authority from the drop-down list.
5. Enter a PEAP user name in the User Name field to use a separate user name and start the
PEAP authentication process.
6. Choose Token or Static Password, depending on the user database.
Note that Token uses a hardware token device or the Secure Computing SofToken program
(version 1.3 or later) to obtain and enter a one-time password during authentication.
7. Click Advanced and:
o Leave the server name field blank for the client to accept a certificate from any server
with a certificate signed by the authority listed in the Network Certificate Authority
drop-down list. (recommended)
o Enter the domain name of the server from which the client will accept a certificate.
o The login name used for PEAP tunnel authentication, fills in automatically as
PEAP-xxxxxxxxxxxx, where xxxxxxxxxxxx is the computer's MAC address. Change
the login name if needed.
8. Click OK.
9. Enable the profile.
Using PEAP-MSCHAP V2 Security
To use PEAP (EAP-MSCHAP V2) security, the server must have WPA-PEAP certificates, and the
server properties must already be set. Check with the IT manager.
1.
On the Security tab, choose the WPA radio button.
OR: On the Security tab, choose the 802.1x radio button.
2. Choose PEAP (EAP-MSCHAP V2) from the drop-down menu.
1
9
Содержание
- Copyright 2
- Fcc caution 2
- Federal communication commission interference statement 2
- Federal communication commission fcc radiation exposure statement 3
- Revision 3
- Safety 3
- Table of contents 4
- Application 5
- Chapter 1 introduction 5
- Features 5
- Infrastructure 5
- Ad hoc 6
- General application 6
- Specification 7
- Installation considerations 8
- Minimum system requirements 8
- Package contents 8
- Chapter 2 installation procedure 9
- Configuration utility driver installation 9
- Chapter 3 configuration utility 15
- Current status 15
- Authentication 16
- Data encryption displays the encryption type the adapter is using 16
- Displays the wireless network name 16
- Network name 16
- Server based 16
- Shows whether server based authentication is used 16
- Menu bar 18
- Add a profile 19
- General tab 19
- Profile management 19
- Security tab 20
- Activate the profile 21
- Choose eap tls from the drop down menu 21
- Choose eap ttls from the drop down menu 21
- Click the configure button 21
- Name are filled in automatically from the certificate information click ok 21
- On the security tab choose the wpa radio button 21
- Onto it check with the it manager 21
- Or on the security tab choose the 802 x radio button 21
- Select the appropriate certificate authority from the list the server domain name and the login 21
- To use eap ttls security the machine must already have the eap ttls certificates downloaded 21
- Using eap ttls security 21
- Advanced tab 28
- Modify a profile 29
- Remove a profile 29
- Export a profile 30
- Import a profile 30
- Scan for available networks 30
- Switch profiles 30
- Auto profile selection management 31
- Diagnostics 32
- Chapter 4 troubleshooting 34
