Ariston C34SG37 [16/24] Adapting to different types of gas

! If one or more of these conditions is not fulfilled or

if the cooker must be installed according to the

conditions listed for class 2 - subclass 1 appliances

(installed between two cupboards), the flexible steel

hose must be used instead (

see below

Connecting a flexible jointless stainless steel pipe

to a threaded attachment

Make sure that the hose and gaskets comply with

current national legislation.

To begin using the hose, remove the hose holder on the

appliance (the gas supply inlet on the appliance is a

cylindrical threaded 1/2 gas male attachment).

! Perform the connection in such a way that the hose

length does not exceed a maximum of 2 metres,

making sure that the hose is not compressed and

does not come into contact with moving parts.

Checking the connection for leaks

When the installation process is complete, check

the hose fittings for leaks using a soapy solution.

Never use a flame.

Adapting to different types of gas

It is possible to adapt the appliance to a type of gas

other than the default type (this is indicated on the

rating label on the cover).

Adapting the hob

Replacing the nozzles for the hob burners:

1. Remove the hob grids and slide the burners off

their seats.

2. Unscrew the nozzles using a

7 mm socket spanner (

see

figure

), and replace them with

nozzles suited to the new type

of gas(

see Burner and nozzle

specifications table

3. Replace all the components

by following the above

instructions in reverse.

Adjusting the hob burners’ minimum setting:

1. Turn the tap to the minimum position.

2. Remove the knob and adjust the regulatory

screw, which is positioned inside or next to the tap

pin, until the flame is small but steady.

! If the appliance is connected to a liquid gas

supply, the regulatory screw must be fastened as

tightly as possible.

3. While the burner is alight, quickly change the position

of the knob from minimum to maximum and vice versa

several times, checking that the flame is not

extinguished.

! The hob burners do not require primary air adjustment.

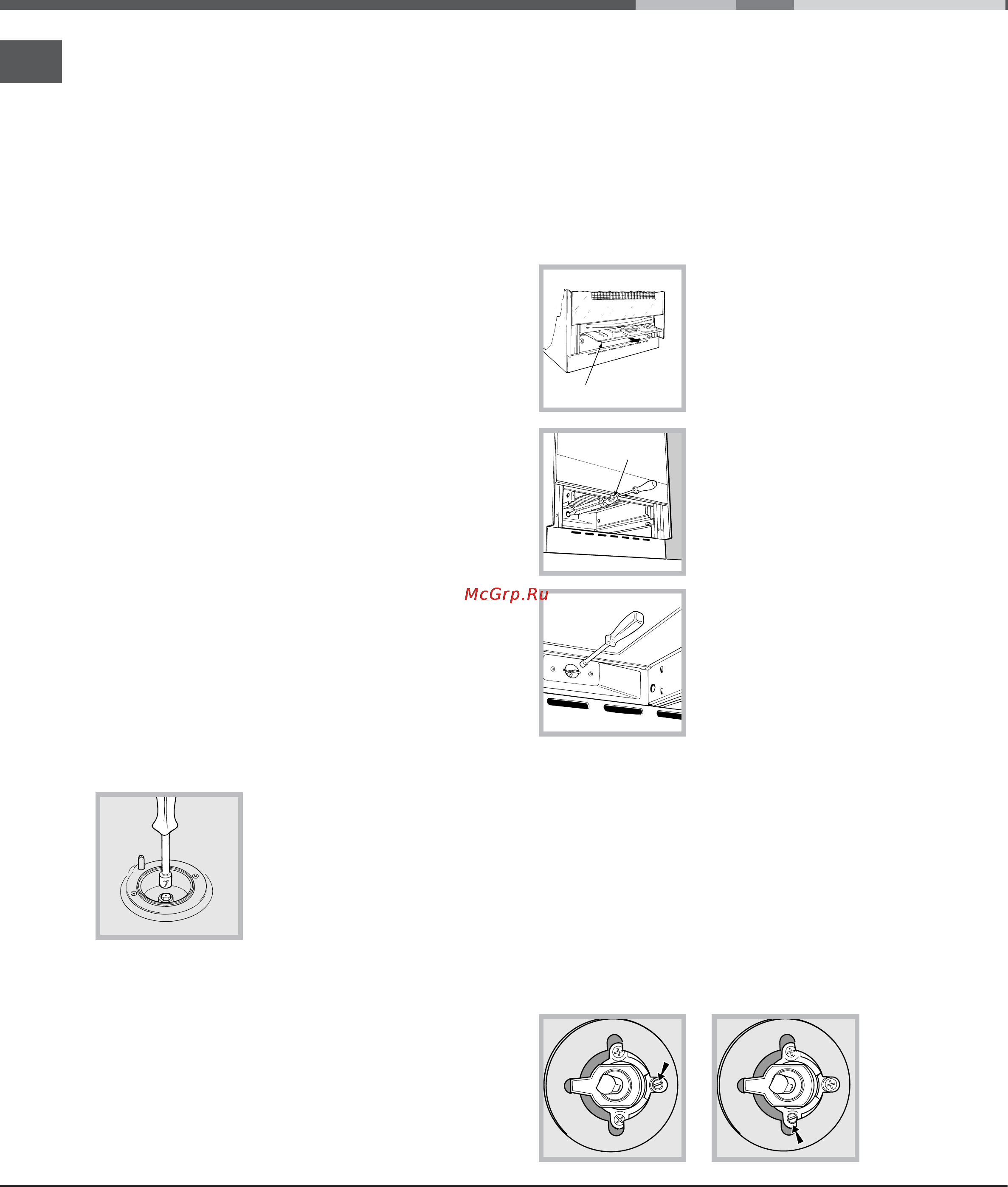

Adapting the oven

Replacing the oven burner nozzle:

1. Remove the oven compartment.

2. Slide out the protection

panel A

(

see diagram

3. Remove the oven burner

after unscrewing the screws V

(

see figure

The whole operation will be

made easier if the oven door

is removed.

4. Unscrew the nozzle using a

special nozzle socket spanner

(

see figure

) or with a 7 mm

socket spanner, and replace it

with a new nozzle that is

suited to the new type of gas

(

see Burner and nozzle

specifications table

Adjusting the gas oven burner’s minimum setting:

1. Light the burner (

see Start-up and Use

2. Turn the knob to the minimum position (MIN) after

it has been in the maximum position (MAX) for

approximately 10 minutes.

3. Remove the knob.

4. Tighten or loosen the adjustment screws on the

outside of the thermostat pin (

see figure

) until the

flame is small but steady.

! If the appliance is connected to liquid gas, the

adjustment screw must be fastened as tightly as

possible.
