![SilverStone SST-RV02B-EW-USB3.0 [7/40] Rv02 e p6](/img/pdf.png)
SilverStone SST-RV02B-EW-USB3.0 [7/40] Rv02 e p6
![SilverStone SST-RV02B-EW-USB3.0 [7/40] Rv02 e p6](/views2/1713417/page7/bg7.png)
6
SERIES
SERIES
3
4

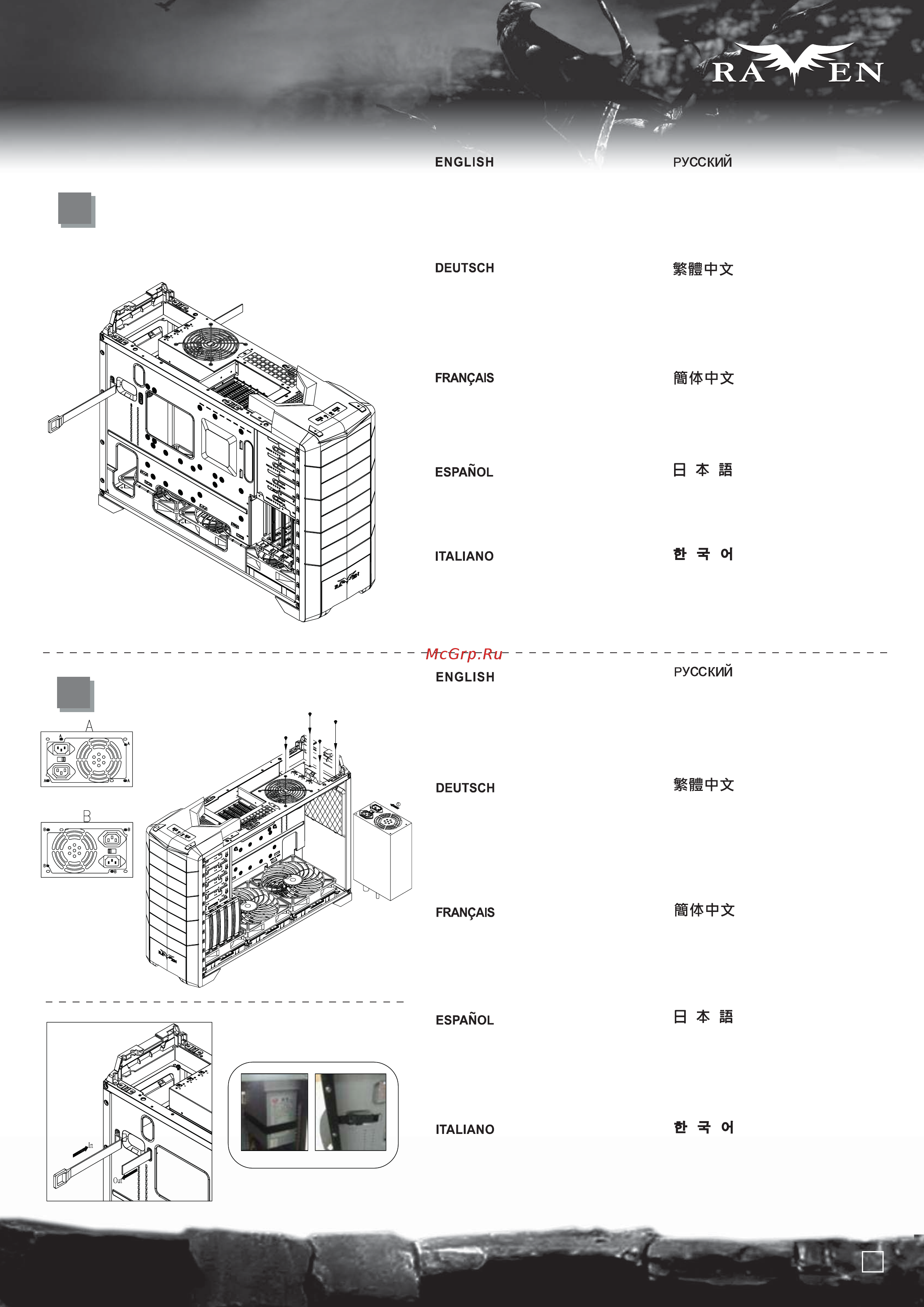

Take the included PSU strap from
the accessory box and route it
through the motherboard tray holes
as indicated in the illustration
Возьмите прилагаемый ремень-фиксатор
блока питания из коробки с аксессуарами
и пропустите его через отверстия в
лотке для материнской платы, как указано
в руководстве.
從零件包內取出魔鬼氈,
請依圖示穿過主機板上的過線孔.
从零件包内取出魔鬼毡，
请依图示穿过主机板上的过线孔。
Nehmen Sie das mitgelieferte
Netzteilkabel aus der Zubehörkiste
und führen Sie es wie in der Abbildung
gezeigt durch die Löcher des
Motherboard-Einschubs.
Prenez l'attache pour l'alimentation
incluse dans la boîte d'accessoire et
faites la passer à travers les trous du
support de carte mère comme illustré
Coja la tira para la FA de la caja de
accesorios y pásela por los agujeros
de la placa base como indica la ilustración.
Prelevare la fascetta per l’alimentatore
dal box degli accessori e passarla
attraverso i fori del supporto della
scheda madre come mostrato in figura
동봉된 PSU 스트랩을 액세사리
박스에서 준비해, 그림에 나타난
메인보드 트레이의 구멍으로 통과
시킵니다.
PSU를 그림에서와 같이(두가지 방향 A B로 설치 가능합니다 )
설치하고, 나사 C로 PSU를 고정합니다.
PSU 스트랩을 PSU 주변과 메인보드 트레이에
있는 적절한 구멍으로 통과 시켜 PSU을 단단히
고정시킵니다.
Install PSU into the case as shown
(two orientations are available in A or B),
use screw C to secure the PSU
Вставьте блок питания в корпус, как показано на
рисунке (возможны два способа расположения: A или B),
закрепите блок питания с помощью шурупа С.
Закрепите блок питания, обернув вокруг него
ремень-фиксатор и продев его в соответствующие
отверстия лотка материнской платы.
請依圖示將電源放入機殼內,
並調整位置(電源支援正反安裝,如圖A,圖B),
用SCREW C 螺絲鎖固
將魔鬼氈由另一個洞穿回主機板底板背面,
並束緊
将魔鬼毡由另一个洞穿回主机板底背板面,并束紧。
请依图示将电源放入机箱内,并调整位置
(电源支援正反安装,如图A,图B)，
用SCREW C螺丝锁固。
Installieren Sie das Netzteil wie dargestellt im
Gehäuse (in A oder B sind zwei Ausrichtungen
verfügbar), befestigen Sie das Netzteil mit
Schraube C.
Installez l'alimentation dans le boîtier comme
montré (deux orientations sont possibles en
A ou B), utilisez la vis C pour fixer l'alimentation
Faites passer l'attache autour de l'alimentation
et à travers les trous correspondants sur le
support de la carte mère pour serrer l'alimentation
Führen Sie zur Befestigung des Netzteils das
Netzteilband um das Netzteil herum und durch
das entsprechende Loch am Motherboard-Einschub.
Instale la FA en la carcasa como se muestra
(en A ó B se permiten dos orientaciones), use el
tornillo C para fijar la FA.
Pase la tira de la FA alrededor de la FA y por el
agujero correspondiente en la bandeja de la placa
base para asegurar la FA.
Installare l’alimentatore nel case come mostra
l’immagine, (è possibile orientarlo nei modi
A o B), usare le viti C per fissarlo
Passare la fascetta intorno alla PSU nel foro
corrispondente sul supporto scheda madre per
assicurare l’alimentatore al case
lnstallation Guide
Route the PSU strap around the PSU and
through to the corresponding hole on the
motherboard tray to tighten the PSU
付属のPSUストラップをアクセサリーボッ
クスから取り出し、図のように、マザ
ーボードトレーの穴に通します。
図のように、ケースの中にPSUをインストールし
（AまたはBの2方向が可能)、ネジCでPSUを固定します。
PSUストラップをPSUのまわりに通し、マザーボ
ードトレーの上の対応する穴に通してPSUを固
定します。
C
