13

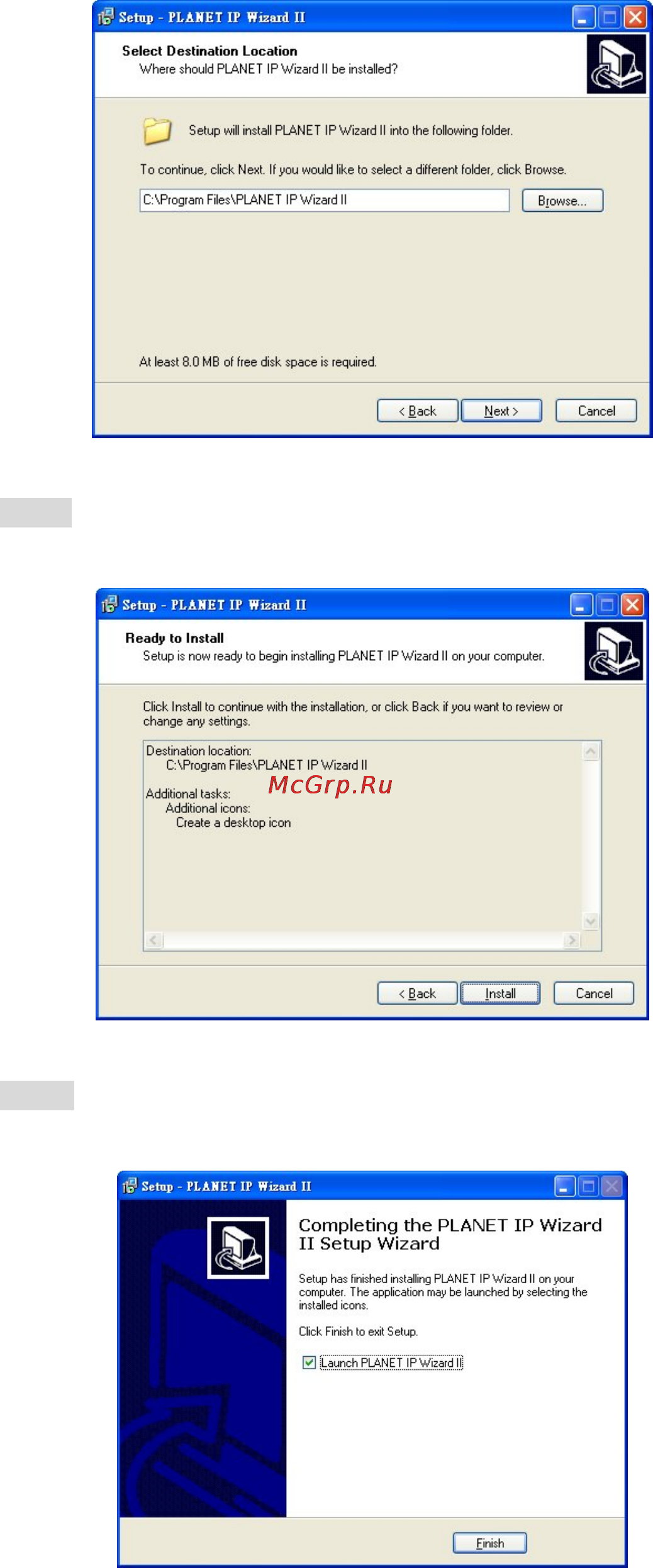

5. Please click “Install” to start the installation.
6. Please click “Finish” to complete the installation and launch program immediately.
