Planet ICA-HM130 [9/90] Physical description
![Planet ICA-HM130 [9/90] Physical description](/views2/1071358/page9/bg9.png)
9

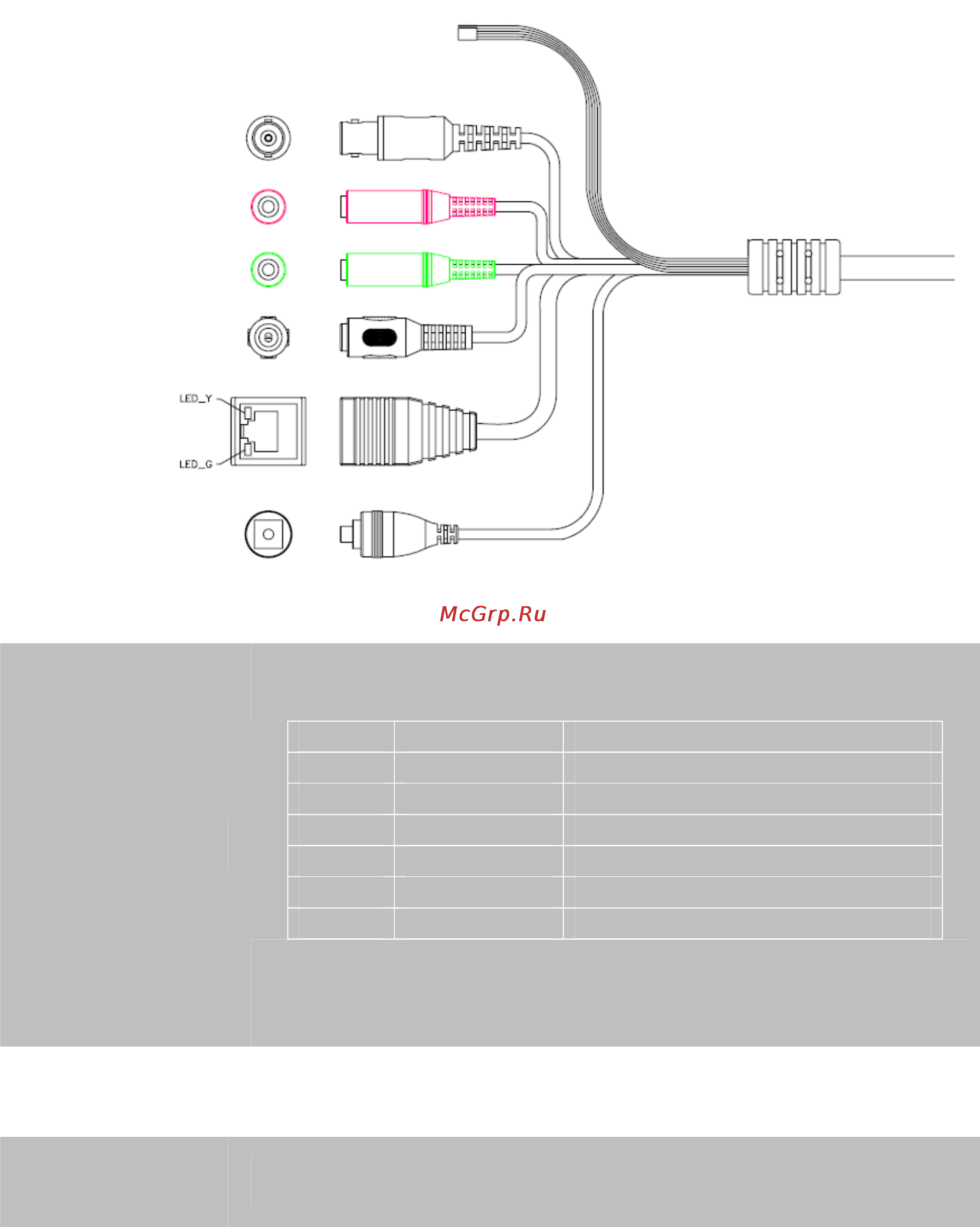

2.2 Physical Description
2.2.1 Identification of ICA-HM130 cable
RS-485 & DIDO
Connect RS-485 to external scanner and connect to sensor in and alarm
out devices.
Name Cable Color Function
12VDC Brown/White DC 12V (50mA maximum)
GND Blue/White GND
D+ Purple/White RS485 data +
D- Gray RS485 data -
DI Green/White Digital signal input
DO Orange/White Digital signal output
NOTE: The RS-485 of internet camera is master that can control external
scanner.
Video out
(BNC connector)
The Network Camera also provides composite video output. User can use
BNC video cable to connect the Network Camera with a TV monitor or VCR.
MIC in
(audio in)
Connect a microphone to the network camera.
RJ45
12V DC in
MIC in
Line out
Reset Button
Video out
RS485 &
DI/DO
