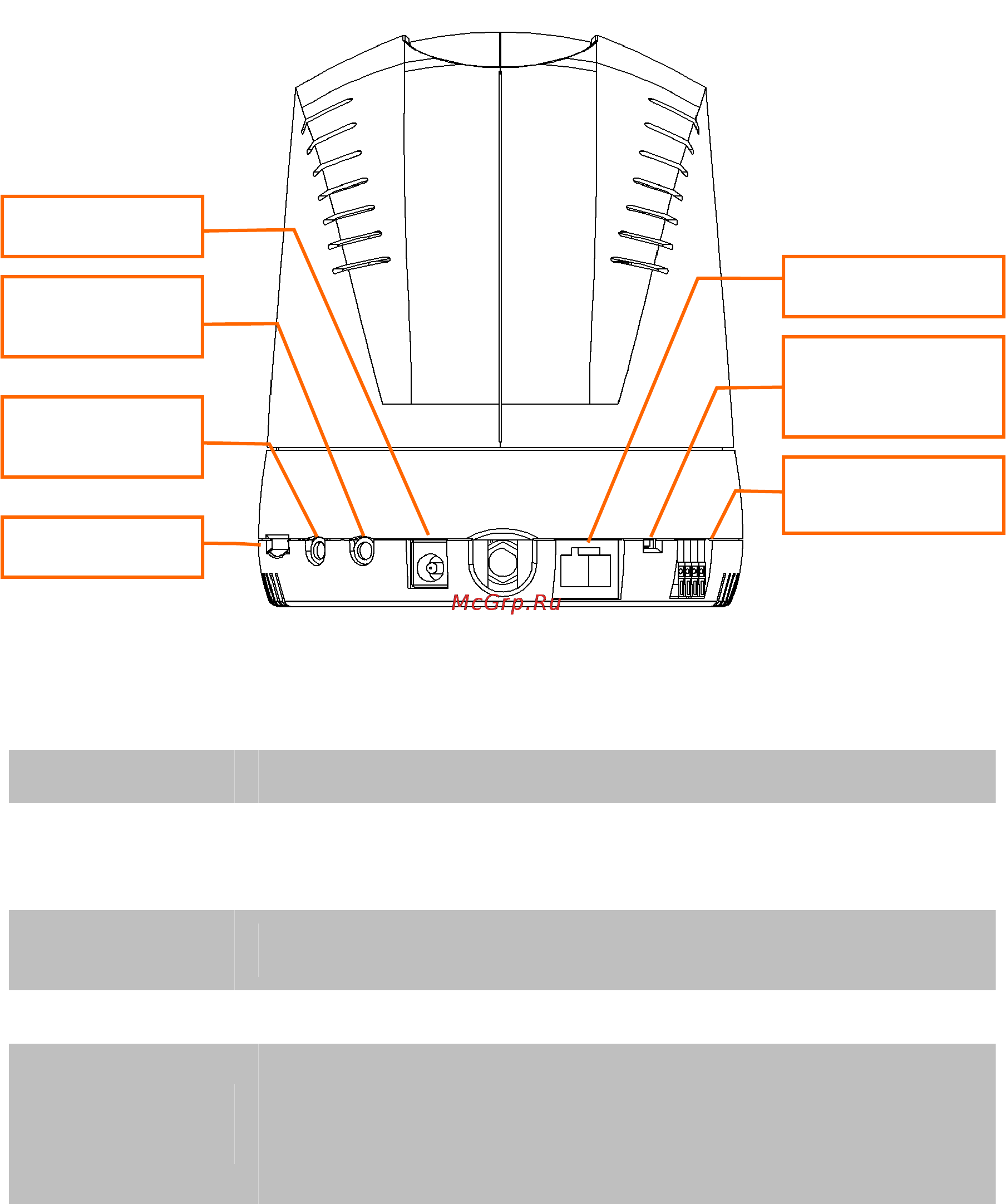

Planet ICA-H610 [10/94] Rear view
![Planet ICA-H610 [10/94] Rear view](/views2/1071361/page10/bga.png)
5. LAN Socket
6. Factory
Default Reset
7. DI/DO
Connector
2. Audio/Video
Output Jack
3. External
Microphone
4. SD Card Slot
1. Power Jack
Rear View
1. Power Jack The input power is DC 12V.
2.
Audio/Video
Output Jack
Audio/Video-out Jack allows this device to output audio and video signal.
Use the attached A/V cable to connect A/V device where white cable is for
audio and yellow cable is for video.
3.
External
Microphone
Connect a microphone to the IP camera.
4. SD Card Slot User can insert a micro SD card into this slot for event recording.
5.
RJ-45 LAN
Socket
The LAN socket is a RJ-45 connector for connections to 10/100Base-TX
Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect
or negotiate the transmission speed of the network automatically. Please
use CAT-5 cable to connect the IP camera to a 100Mbps Fast Ethernet
network switch or hub.
6.
Factory
Default Reset
This button is used to restore the all factory default settings. Sometimes
restarting the device will make the system back to a normal state.
However, if the system still got problems after restart, user can restore the
factory default settings and install it again.
