ICA-100PE

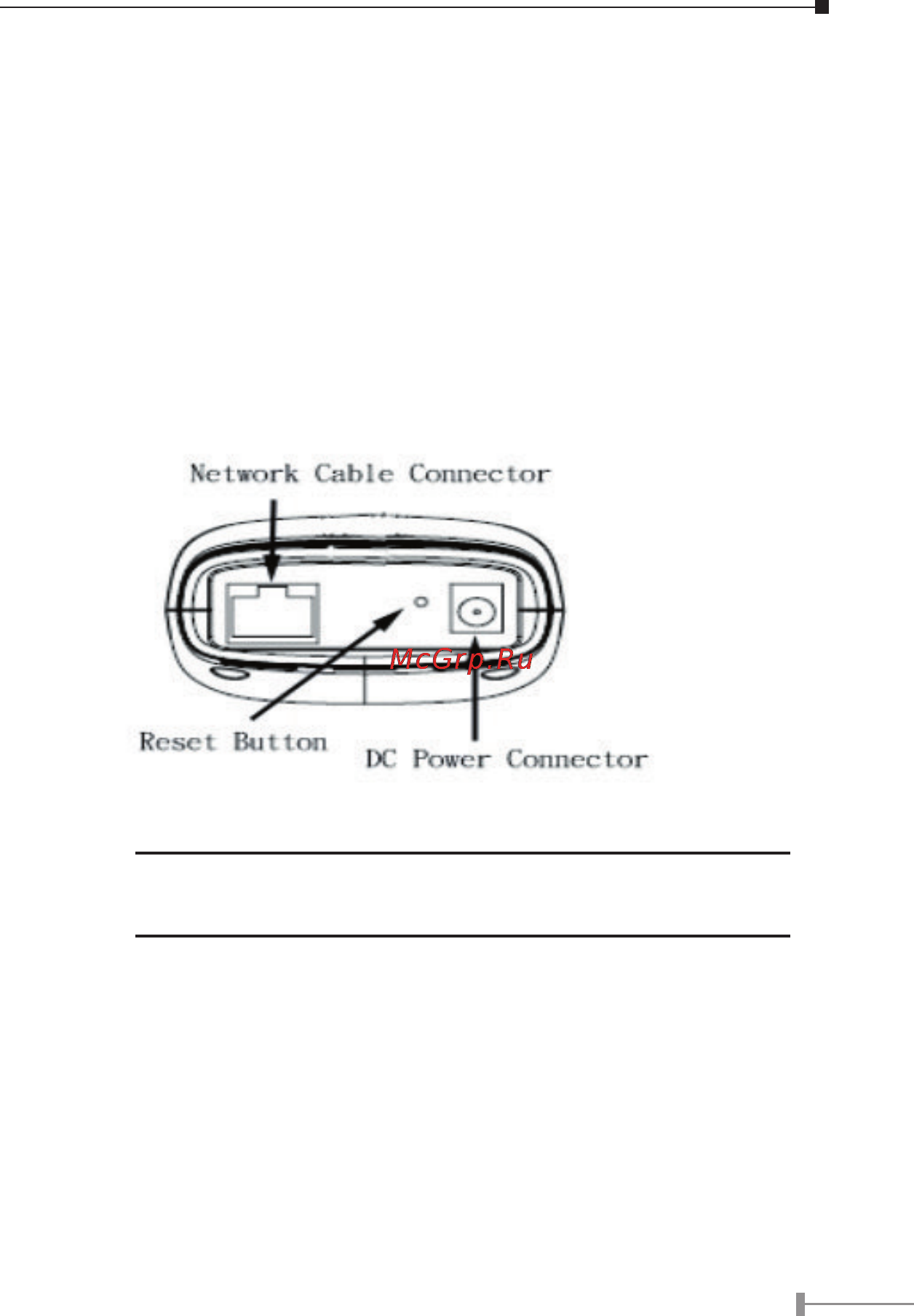

1. Connect an Ethernet cable

Connect one end of an Ethernet cable to the LAN port located on the ICA-100PE rear panel

and attach the other end to the network device (hub or switch).

2. Power over Ethernet IEEE 802.3 af

Simply connect the Ethernet cable, no power adapter needed.

3. Attach the external power supply

Connect the provided power adapter to the ICA-100PE's connector labeled “5VDC” on

rear panel.

4. Check the LEDs

The PWR and ACT LEDs should be on.

Physical Installation of ICA-100PE

Note:

Please choose either PoE or power adapter as the power supply for the

ICA-100PE. Do not connect both the PoE port, and the power adapter at

the same time, the unit might be damaged permanently.

ICA-100C

1. Connect an Ethernet cable

Connect one end of an Ethernet cable to the LAN port located on the ICA-100C rear panel

and attach the other end to the network device (hub or switch).

2. Attach the external power supply

Connect the provided power adapter to the ICA-100C's connector labeled “5VDC” on rear

panel.
