2011-AB3530-000

30 meter Infra-Red Camera – CAM-IR338

 Packet Content

CAM-IR338

Screw kit * 1

Rack * 1

Quick Installation Guide * 1

 Installation

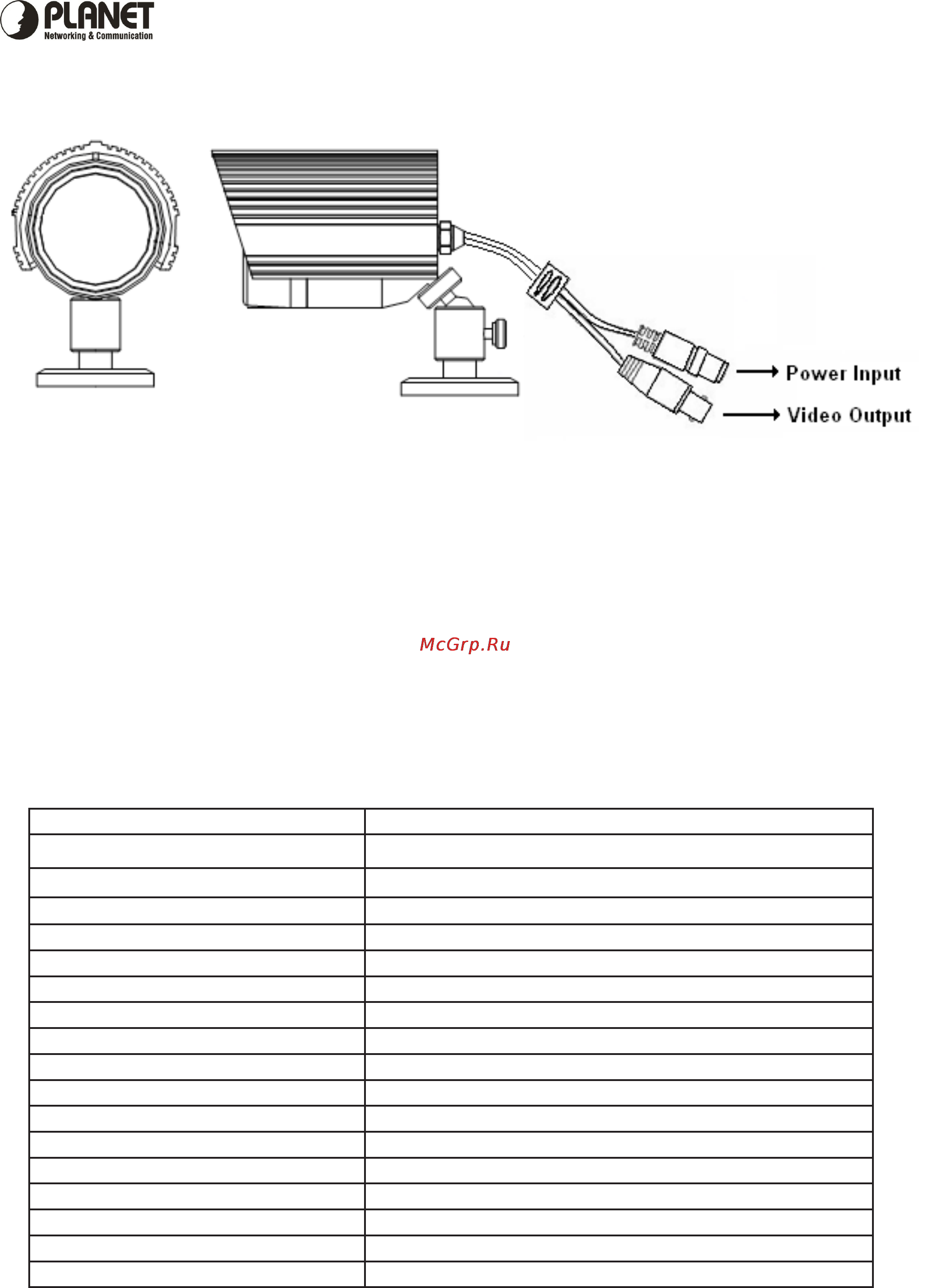

1. Please fix the CAM-IR338 to a suitable location with the Rack and Screws.

2. Adjust the camera to the correct direction.

3. Connect Video Output connector to your DVR.

4. Connect a DC 12V power adapter to the Power Input connector.

Note: Before connect power adapter to camera, please make sure the power output voltage is DC 12V

(max. ±10%). If you can not sure this part, we will suggest to use a DC 12V Switching power adapter. It can

provide stable power output.

 Specication

Image Pick-up Device SONY 1/3“ Color CCD

Effective Picture Elements NTSC: 510*492, PAL: 500*582 (H*V)

Horizontal Resolution 380 horizontal TV lines

Minimum Illumination 0 LUX with built-in IR-LED

S/N Ratio More than 48 dB

Auto Electronic Shutter NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s

Gain Control Automatically.

White Balance Automatically (2500K~9500K)

Gamma Characteristic 0.45

Lens Furnished Board Lens 6.0 mm / F2.06.0 mm / F2.0.0 mm / F2.0

Synchronous System Internal, Negative sync.

Video Output 1 Vp-p Composite Video / 75 Ohms.

Power Supply 12V DC / 120mA (IR on:350 mA)

Operating Temp.

-10℃ to 50℃ (14℉ to 122℉)

Water Resistance IP66

IR LED 36Units of 850nm IR LED.

IR Project Distance 30 Meters

Dimensions 82mm(φ) *110mm (L)
