andal-Proof Dome Camera – CAM-VP38

 Packet Content

Screw * 4 Rub washer * 1 Wrench * 1 Hole plugs * 1

Wrench * 1 Patch * 4 Pipe fittings * 1 Supporter * 4

 Installation

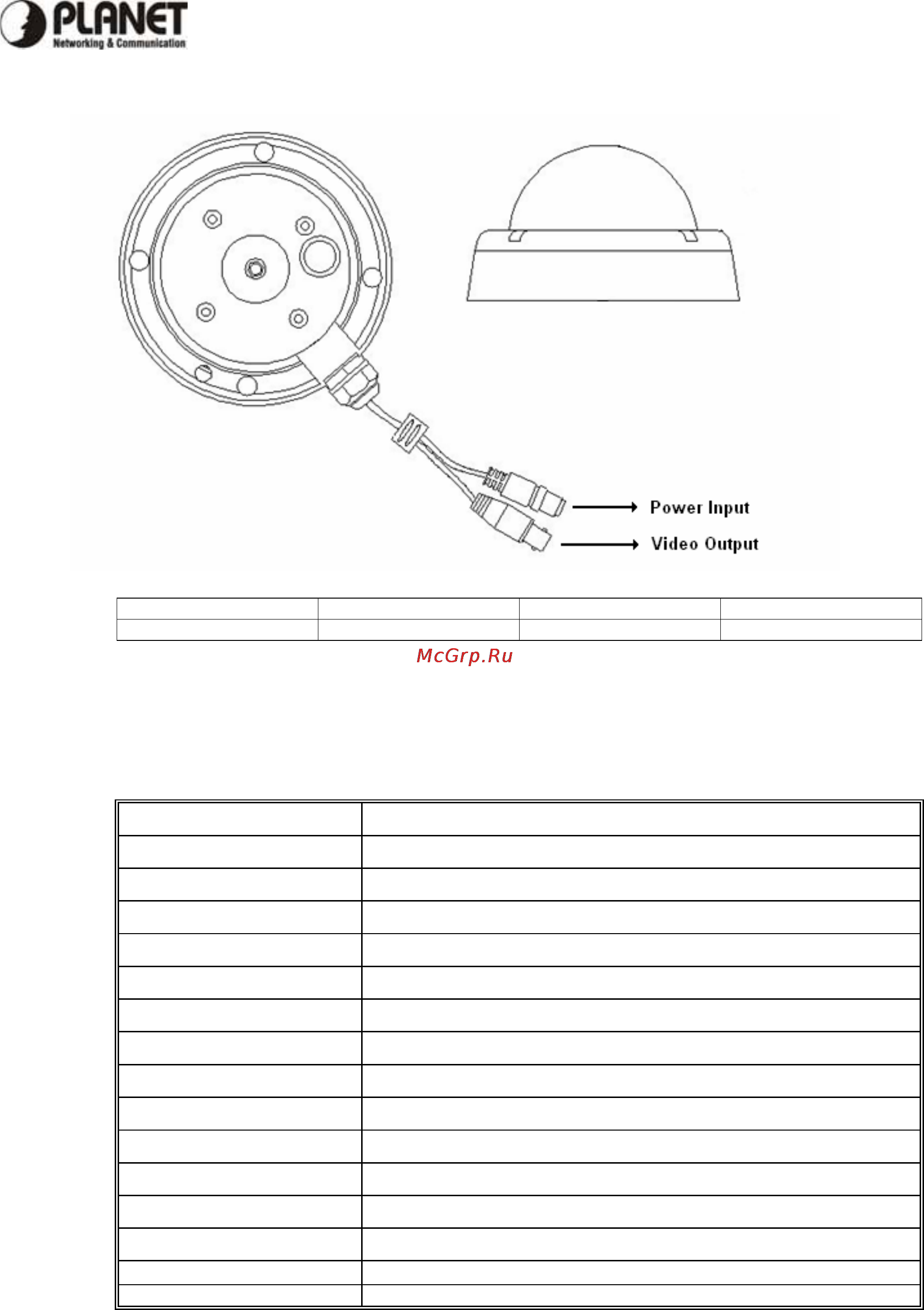

1. Please fix the CAM-VP38 to a suitable location with the Screws.

2. Use Wrench to open the protect cover and adjust the camera to the correct direction, then closed.

3. Connect Video Output connector to your DVR.

4. Connect a 12V DC/1A power adapter to the Power Input connector.

 Specification

Image Pick-up Device SONY 1/3“ Color CCD

Effective Picture Elements NTSC: 510*492, PAL: 500*582 (H*V)

Horizontal Resolution 380 TV lines

Minimum Illumination 0.1LUX @ F2.0

S/N Ratio More than 48 dB

Auto Electronic Shutter NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s

Gamma Characteristic 0.45

Lens Furnished Board lens 3.6mm / F2.0 (optional: 4.3/6.0/8.0/12/16mm)

Gain Control

Automatically

White Balance

Automatically (2500K~9500K)

Synchronous System Negative sync. Internal

Video Output 1 Vp-p Composite Video / 75 Ohms.

Vandal Resistant 10 Pound

Power Supply DC 12V / 1A

Operating Temp.

-10℃ to 50℃ (14℉ to 122℉)

Dimensions

141mm(Φ) X 80mm(H)
