ini Dome Camera – CAM-DM33

 Packet Content

CAM-DM33

Screw kit * 1

 Installation

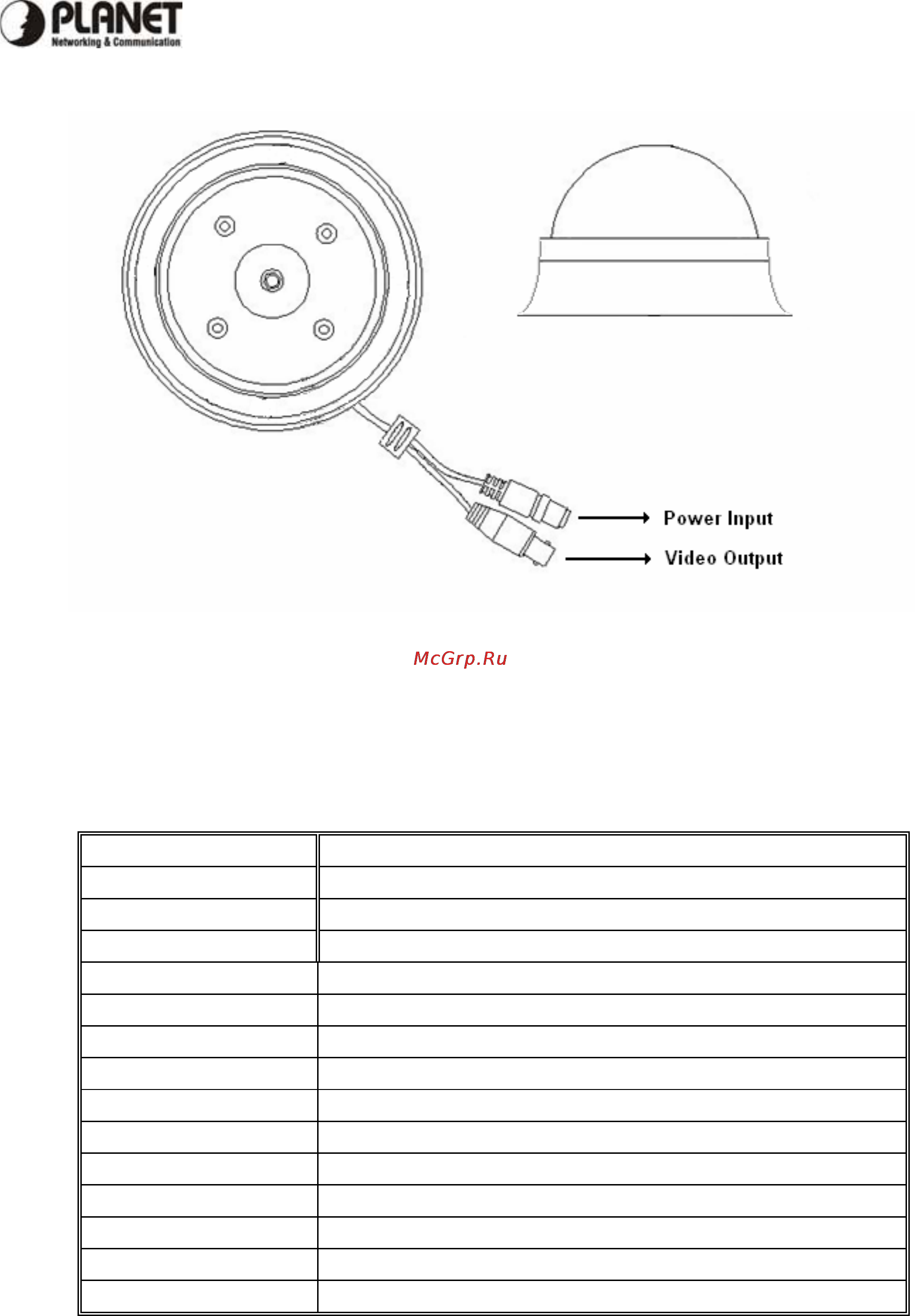

1. Please fix the CAM-DM33 to a suitable location with the Screw Kit.

2. Open the protect cover and adjust the camera to the correct direction, then closed.

3. Connect Video Output connector to your DVR.

4. Connect a 12V DC/800mA power adapter to the Power Input connector.

 Specification

Image Pick-up Device SHARP 1/4“ CCD Normal Resolution

Effective Picture Elements NTSC: 510*492, PAL: 500*582 (H*V)

Horizontal Resolution 330 TV lines

Minimum Illumination 0.2 LUX @ F2.0

S/N Ratio More than 48 dB

Auto Electronic Shutter NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s

Gamma Characteristic 0.45

Lens Furnished Board lens 3.6mm / F2.0(optional:2.5/4.3/6.0/8.0/12/16mm)

Gain Control

Automatically

White Balance

Automatically (2500K~9500K)

Synchronous System Negative sync. Internal

Video Output 1 Vp-p Composite Video / 75 Ohms.

Power Supply DC 12V / 800 mA

Operating Temp.

-10℃ to 50℃ (14℉ to 122℉)

Dimensions

73 mm(Φ) X 53 mm(H)
