5 meter Infra-Red Camera – CAM-IR138

 Packet Content

CAM-IR138

Screw kit * 1

Rack * 1

 Installation

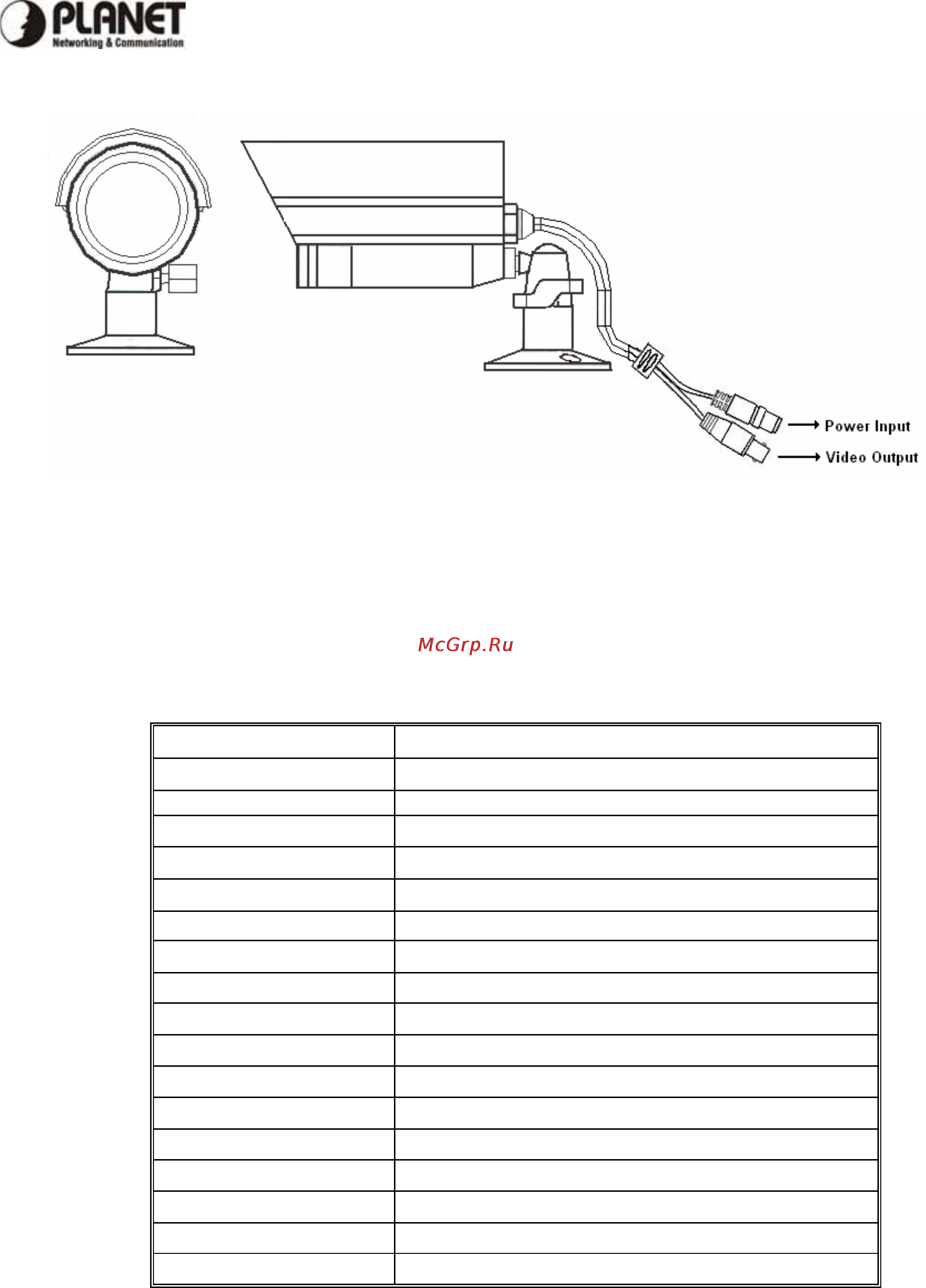

1. Please fix the CAM-IR138 to a suitable location with the Rack and Screws.

2. Adjust the camera to the correct direction.

3. Connect Video Output connector to your DVR.

4. Connect a 12V DC/1A power adapter to the Power Input connector.

 Specification

Image Pick-up Device

SHARP 1/3“ COLOR CCD

Effective Picture Elements

NTSC: 510*492, PAL: 500*582 (H*V)

Horizontal Resolution 380 horizontal TV lines

Minimum Illumination 0 LUX with built-in IR-LED

S/N Ratio

More than 48 dB

Auto Electronic Shutter

NTSC:1/60s~1/100,000s, PAL:1/50s~1/110,000s

Gain Control Automatically.

White Balance

Automatically (2500K~9500K)

Gamma Characteristic 0.45

Lens Furnished Board Lens 6.0 mm / F2.0 (optional: 3.6,4.3,8.0 mm)

Synchronous System Internal, Negative sync.

Video Output 1 Vp-p Composite Video / 75 Ohms.

Power Supply 12V DC / 1A

Operating Temp. -10 to 50 (14 to 122 )℃℃℉ ℉

Water Resistance IP66

IR LED 12 Units of 850nm IR LED.

IR Project Distance 25 Meters

Dimensions 68mm(φ) *105 mm (L)
