GB
3
! Before operating your new appliance please read
this instruction booklet carefully. It contains important
information for safe use, installation and care of the
appliance.
! Please keep these operating instructions for future
reference. Pass them on to possible new owners of
the appliance.
Positioning
! Keep packaging material out of the reach of
children. It can become a choking or suffocation
hazard (see Precautions and tips).
! The appliance must be installed by a qualified
professional according to the instructions provided.
Incorrect installation may cause harm to people and
animals or may damage property.

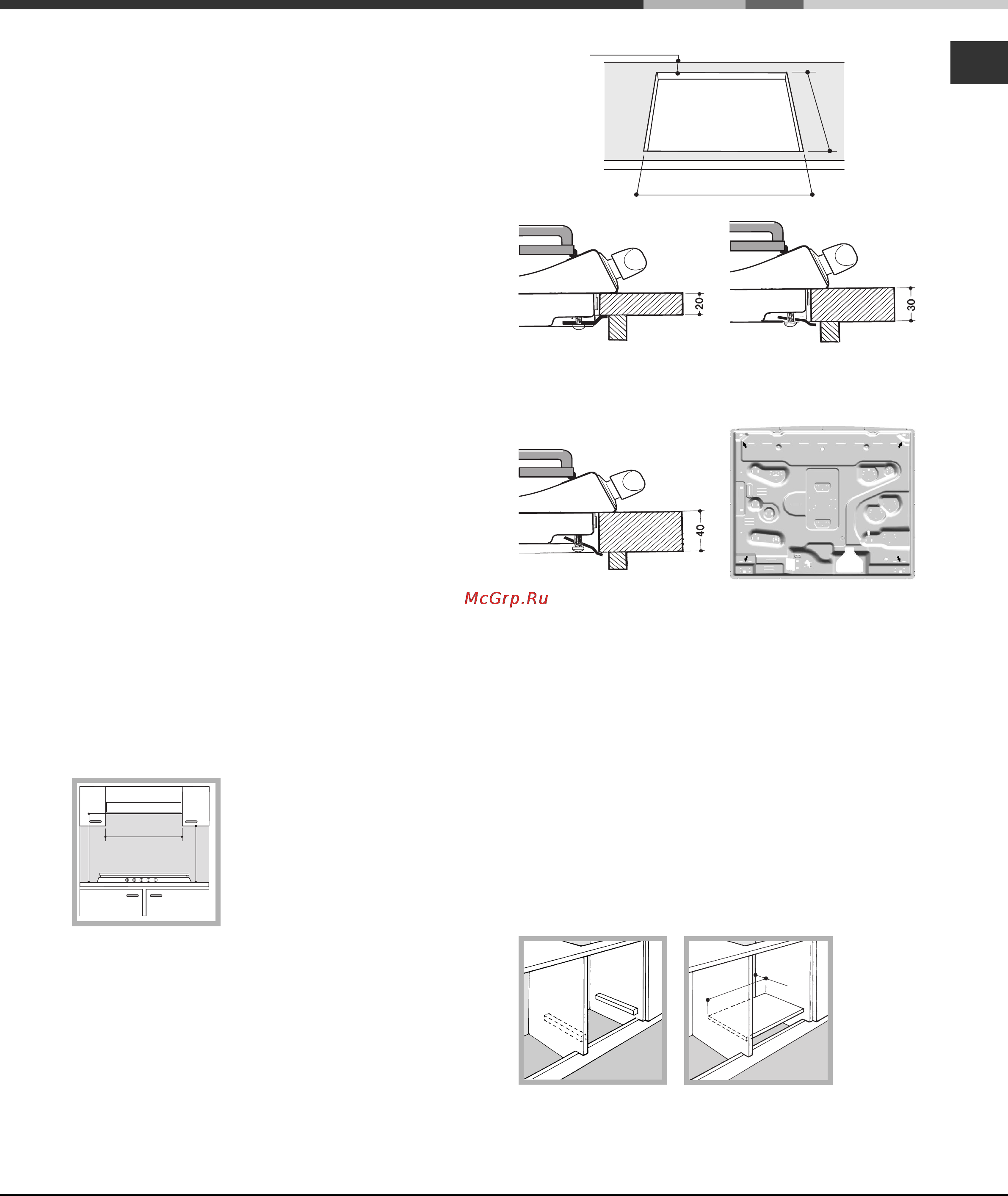

Fitting the appliance
It is possible to instal them next to furniture which is
higher than the working board. For a correct
installation of the cooking top the following
precautions must be followed:
• Kitchen cabinets adjacent to the appliance and
taller than the top of the hob must be at least 600
mm from the edge of the hob.
• Hoods must be installed according to their relative
installation instruction manuals and at a minimum
distance of 650 mm from the hob.
• Place the wall cabinets
adjacent to the hood at a
minimum height of 420 mm
from the hob (see figure).
• If the hob is installed
beneath a wall cabinet, the
latter must be situated at a
minimum of 700 mm above the
hob (see figure).
• The installation cavity should have the dimensions
indicated in the figure.
Fastening hooks are provided, allowing you to
fasten the hob to tops that are between 20 and 40
mm thick. To ensure the hob is securely fastened to
the top, we recommend you use all the hooks
provided.
555
mm
475
mm
55
mm
Hook fastening diagram
Hooking position Hooking position
for top H=20 mm for top H=30 mm
Front
Hooking position Back
for top H=40 mm
! Use the hooks contained in the “accessory pack”
• Where the hob is not installed over a built-in oven,
a wooden panel must be installed as insulation.
This must be placed at a minimum distance of 20
mm from the lower part of the hob.
Ventilation
To ensure adequate ventilation, the back panel of
the cabinet must be removed. It is advisable to
install the oven so that it rests on two strips of wood,
or on a completely flat surface with an opening of at
least 45 x 560 mm (see diagrams).
Installation
600mm min.
600mm min.
700mm min.
560 m
m.
4
5
m
m
.
