4
GB

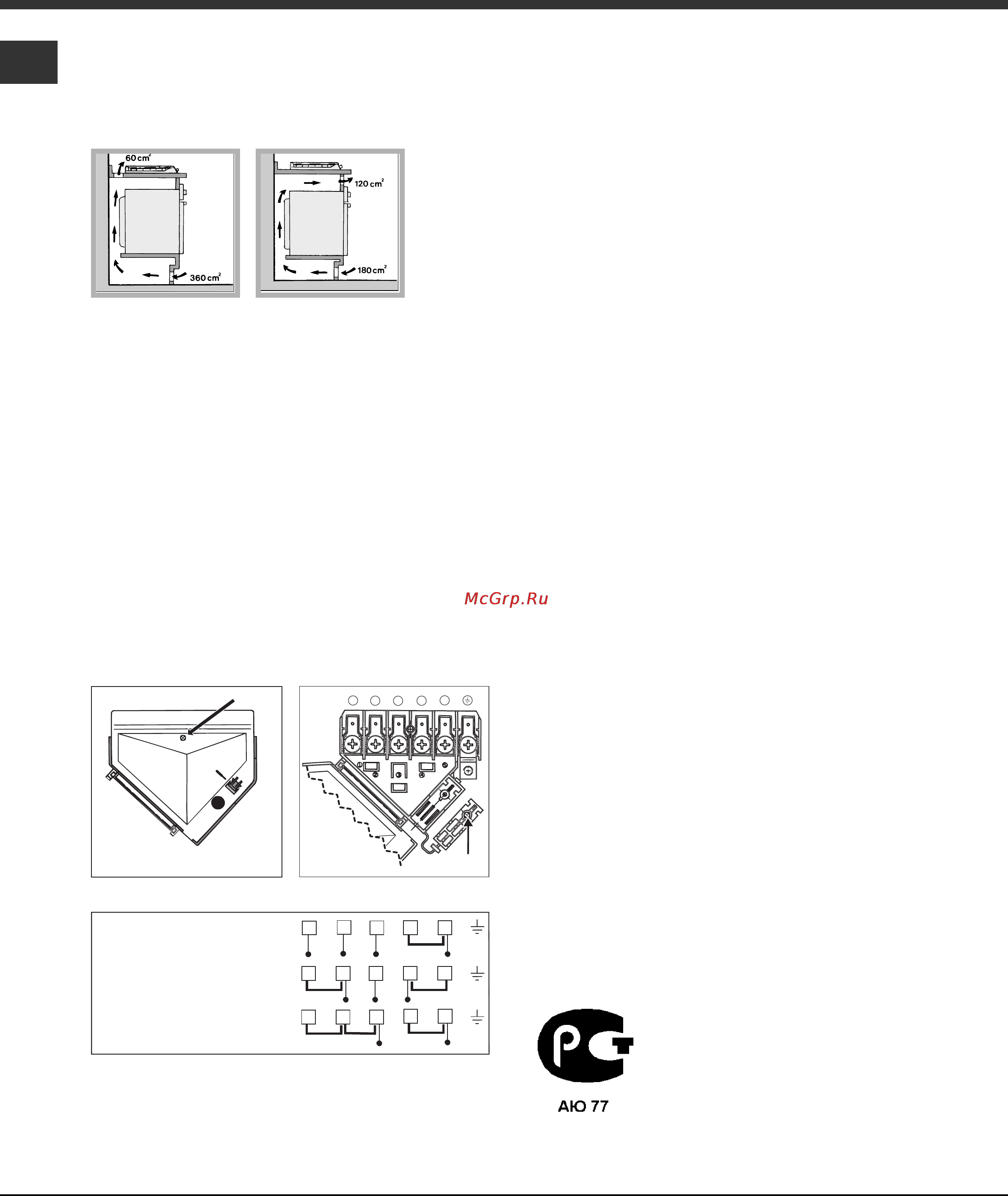

Where a hob is installed above an oven without a
forced ventilation cooling system, adequate
ventilation must be provided inside the cabinet by
means of air holes through which air can pass (see
figure).
Electrical connection
The electric hobs are supplied without power supply
cable since the cable must be sized according to
the type of electrical connection used (see attached
connection diagram). Follow these steps to connect
the cable:
• Open the terminal box by removing the screws "V"
and opening the cover (see figure).
• Connect the wires as shown in the diagram.
• Fix the cable using the cable clamp "F", replace the
cover and fasten it using the screws "V" (see
figure).
F
V
1
2
3
4
5
1 2
3
4
5
12345
1
2
3
4
5
R
S
T
N
R
S
N
R
N
380-400V 3N~
H05RR-F 5x1.5 CEI-UNEL 35363
380-400V 2N~
H05RR-F 4x1.5 CEI-UNEL 35363
220-230V 1N~
H05RR-F 3x2.5 CEI-UNEL 35363
Connecting the supply cable to the mains
Install a standardised plug corresponding to the
load indicated on the data plate.
The appliance must be directly connected to the
mains using an omnipolar circuit-breaker with a
minimum contact opening of 3 mm installed between
the appliance and the mains. The circuit-breaker
must be suitable for the charge indicated and must
comply with current electrical regulations (the earthing
wire must not be interrupted by the circuit-breaker).
The supply cable must not come into contact with
surfaces with temperatures higher than 50°C.
! The installer must ensure that the correct electrical
connection has been made and that it is compliant
with safety regulations.
Before connecting to the power supply, make sure
that:
• The appliance is earthed and the plug is compliant
with the law.
• The socket can withstand the maximum power of
the appliance, which is indicated on the data plate.
• The voltage is in the range between the values
indicated on the data plate.
• The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be
easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
! The manufacturer declines any liability should
these safety measures not be observed.
! If the appliance is to be installed above a built-in
electric oven, the electrical connection of the hob and
the oven must be carried out separately, both for
electrical safety purposes and to make extracting the
oven easier.
