Planet IPX-1900 [10/14] Step 3 ip pbx setup

LAN IP Address: Private IP address for connecting to a local private network

Subnet Mask: Subnet mask for the local private network (Default:

255.255.255.0).

DHCP Server: Enable to open LAN port DHCP server.

Assigned DHCP IP Address: DHCP server range from start IP to end IP.

DHCP IP Lease Time: Client to ask DHCP server refresh time, range from 60 to

86400 seconds

Step 3. IP PBX Setup

The IP PBX allows multiple ITSP providers / User Extensions registration by simply

ll-in the required information in the provided table.

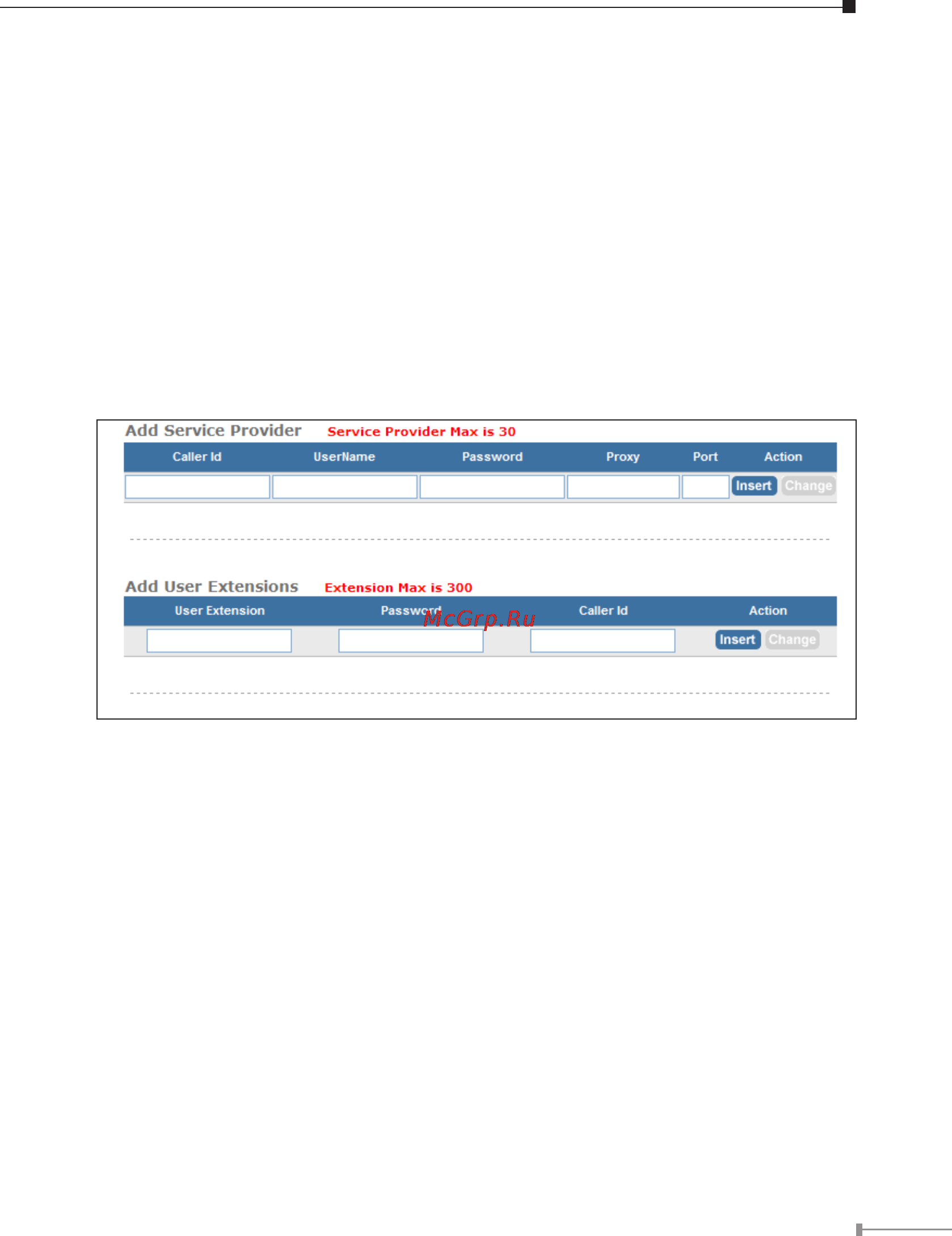

Figure 7. Wizard-IP PBX Setting Screen

Service Provider:

Caller id: Input service provider caller id / name

Username: Input Provider name

Password: Input Provider password

Host: Input Providers server address.

Port: Input Providers Port

User Extensions：

User Extension: Input Extension number

Password: Input Extension password

Caller id: Input Extension caller id
