Planet IPX-1900 [6/14] Physical installation

12V DC 12V DC Power input outlet

Power Switch “|” power is on, “O” Power is off

Reset

(Rest Button)

Push this button until 3 -5 seconds, and IP PBX will be

set to factory default conguration.

RS – 232 Port 9 pin RS232 Serial port, Data rates 57600 bits.

LAN

(Local Area network)

Connect to PC with Ethernet cable. 1 port allows your

PC or Switch/Hub to be connected to the IPBX through

a networking cable with RJ-45 connectors used on

10Base-T and 100Base-TX networks.

WAN

(Wide Area network)

Connect to the network with an Ethernet cable. This

port allows your IPBX to be connected to an Internet

Access device, e.g. router, cable modem, ADSL modem,

through a networking cable with RJ-45 connectors used

on 10Base-T and 100Base-TX networks.

Slot A/B 2 external slots with compliance FXO/FXS/FSL module.

FXS Port

(Modular IPX-19FS)

Connect to Phone with RJ-11 (Black) analog line. FXS

port was connected to your telephone sets, FAX, or

Trunk Line of PBX.

FXO Port

(Modular IPX-19FO)

Connect to PBX or CO line with RJ-11 (Write) analog

line. FXO port was connected to the extension port of a

PBX or directly connected to a PSTN line of carrier

Note: IPX-19SL 2-Port PBX Life Line Module IPX-1900 (1FXO, 1FXS)

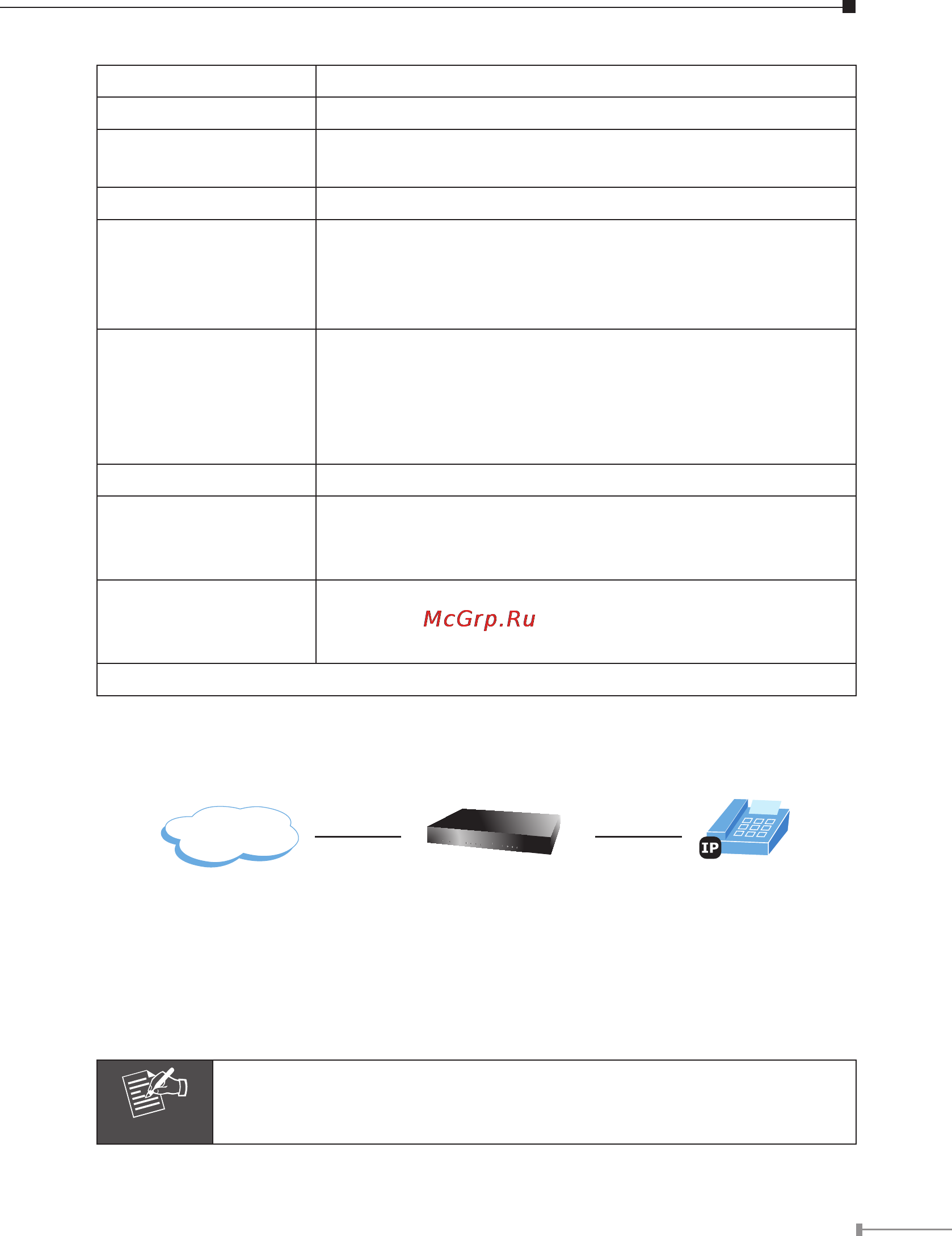

Table 2. Rear Panel description of IP PBX

Internet

Internet IPX-1900 IP Phone

Physical Installation

Step 1: Connecting Power AC Power (12V DC).

Note

Use only the power adapter shipped with the unit to ensure correct

functionality.
