Installation Connect the IP PBX

Physical Introduction

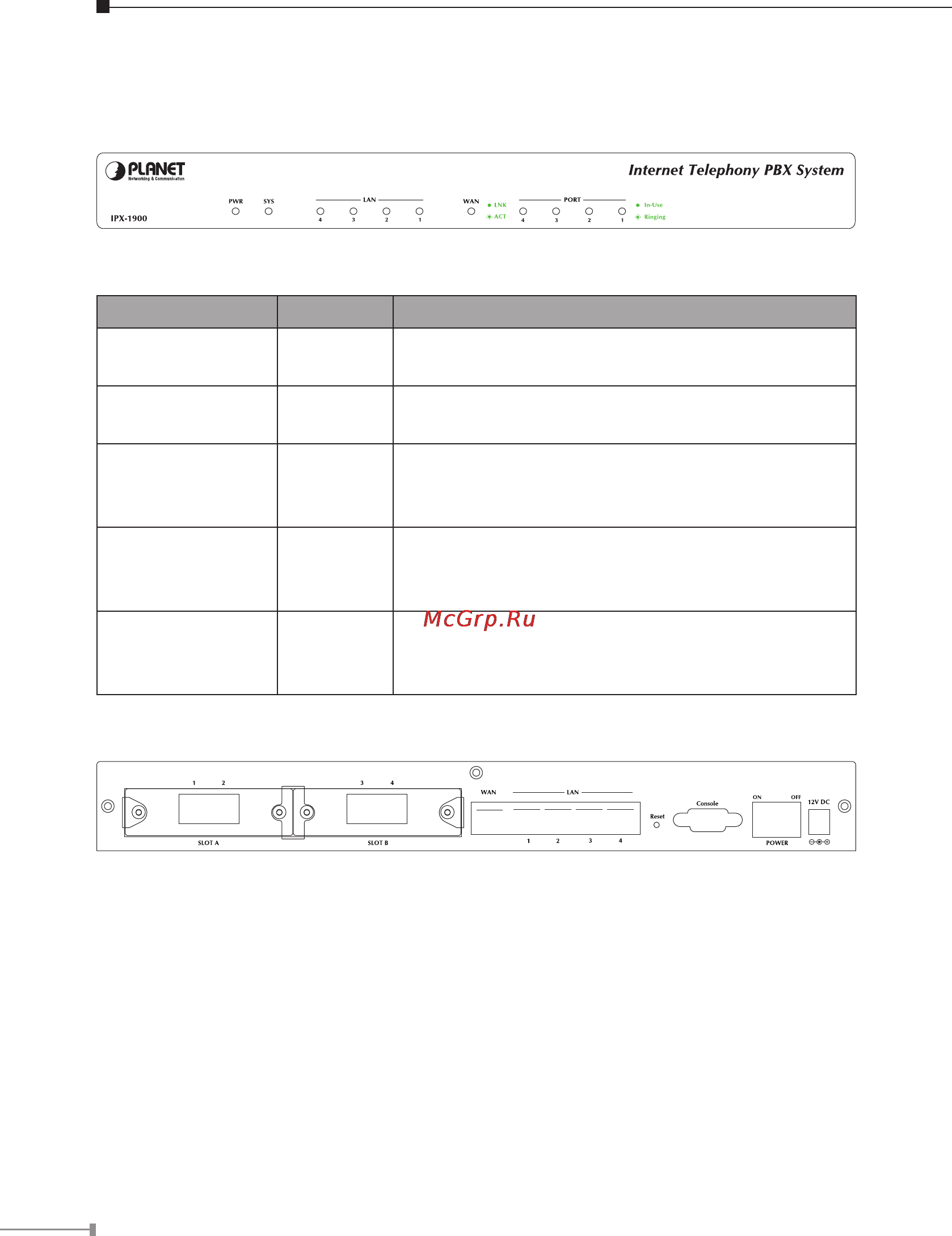

Figure1. Font Panel of IP-1900

Front Panel LED State Descriptions

PWR

Off

PBX Power ON

PBX Power OFF

SYS

Flashing

System is booting

System is ready

LAN

Flashing

Off

LAN is connected successfully

Data is transmitting

Ethernet not connected to PC

WAN

Flashing

Off

PBX network connection established

Data trafc on cable network

Waiting for network connection

FXO/FXS Port

Flashing

Off

Port is busy

Ring indication. (FXS only)

Port is not enabled.

Table 1. Font Panel description of IP PBX

Figure 2. Rear Panel of IPX-1900
