PLANET Technology Corp. GRT-101/401/402 User’s Manual

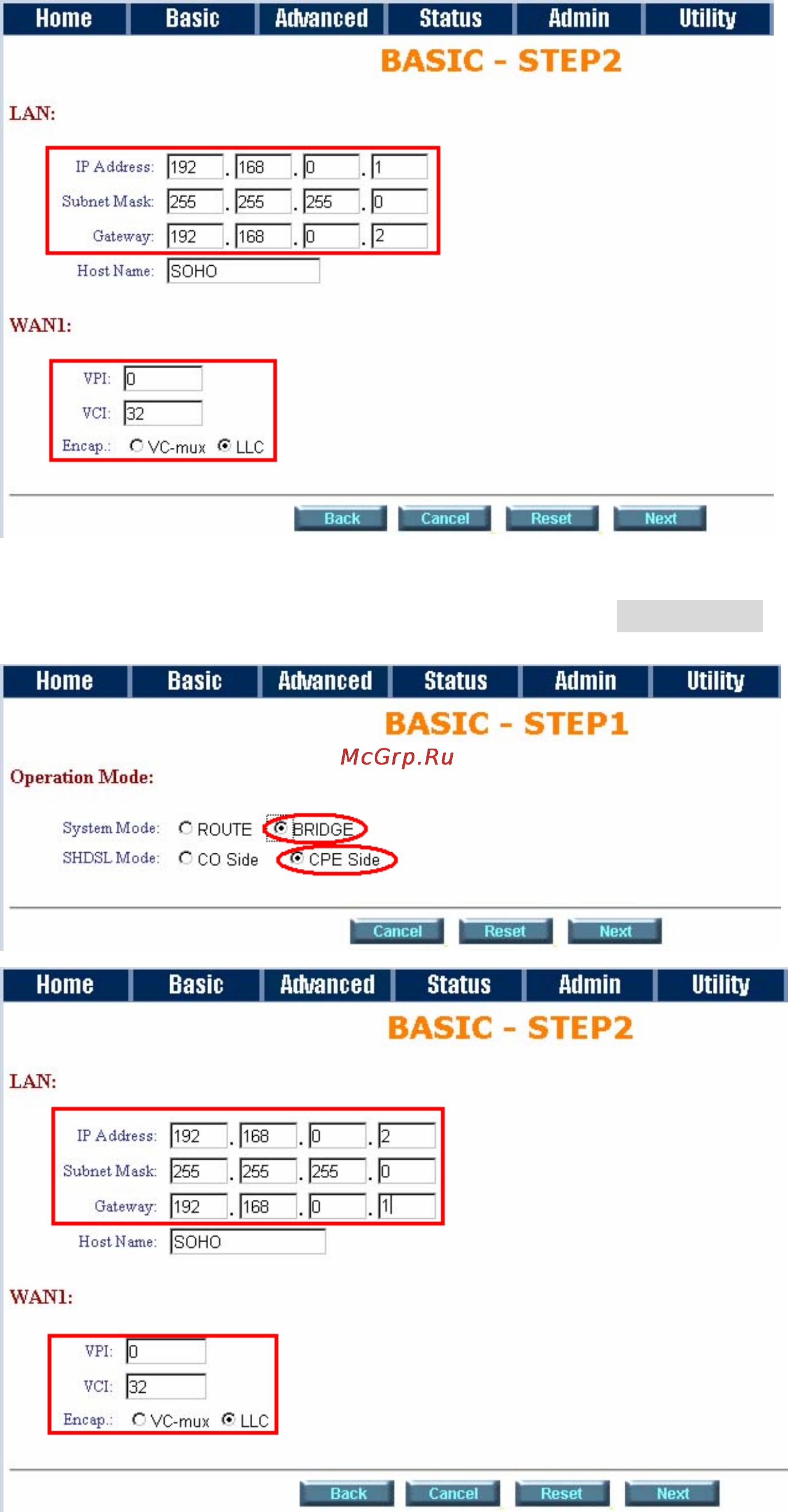

7. Setup the CO Router in bridge mode (refer to bridge mode in section 2.1).
The gateway of CO Router is pointed to LAN IP, 192.168.0.2, of CPE
Router.
- -
20
