PLANET Technology Corp. GRT-101/401/402 User’s Manual
Chapter 2 Installation
2.1 Front Panel LEDs
The LEDs on the front panel indicate the operational status of GRT series.

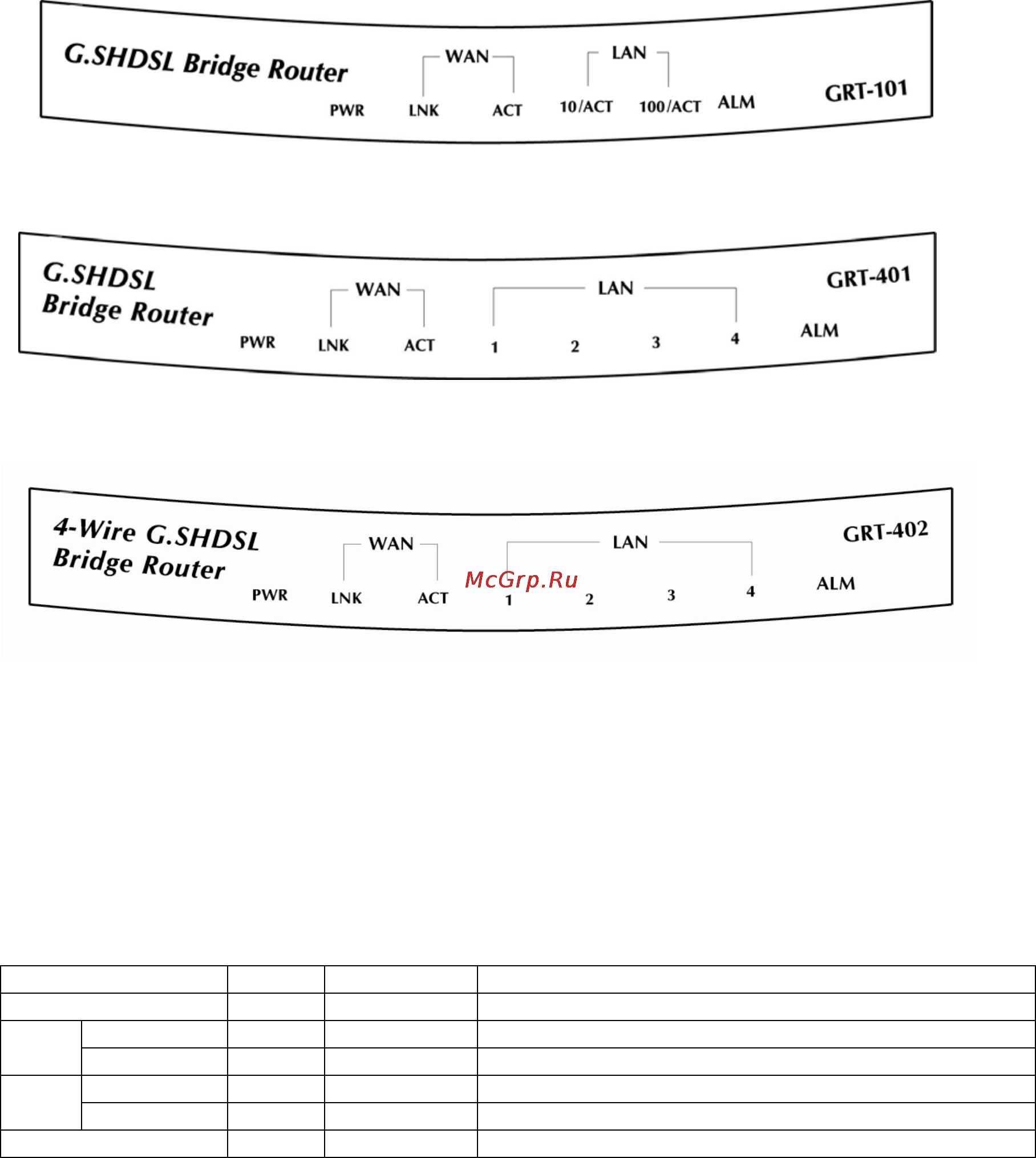

Figure 2-1 GRT-101 Front Panel
Figure 2-2 GRT-401 Front Panel
Figure 2-3 GRT-402 Front Panel
The following table describes the LEDs’ functions:
Table 2-1 GRT-101 LED Functions
LEDs Active Color Description
PWR On Green Power adaptor is connected to GRT-101/GRT-401
LNK On Green SHDSL line connection is established
WAN
ACT On Green Transmit or received data over SHDSL link
10/ACT On Green LAN Speed operates in 10M
LAN
100/ACT On Green LAN Speed operates in 100M
ALM On Red SHDSL connection disconnected
- -
4
