– 1 – – 2 –
– 3 – – 4 –
1. Important Safety Instructions
l Do not use the ADSL modem in high humidity or high
temperatures.
l Do not use the same power source for the ADSL modem
as other equipment.
l Do not open or repair the case yourself. If the ADSL
modem is too hot, turn off the power immediately and
have it repaired at a qualied service center.
l Avoid using this product and all accessories outdoors.
l Place the ADSL modem on a stable surface.
l Only use the power adapter that comes with the
package. Using a different voltage rating power adaptor
may damage the router.
2. Package Content
ADE-3410 / ADW-4401
u ADE-3410 / ADW-4401 Unit
u CD-ROM containing the user’s manual x 1
u Quick Installation Guide x 1
u ADSL Splitter x 1
u Power Adapter x 1
u RJ-11 (ADSL) Cable x 2
u RJ-45 Cable x 1
u USB Cable x 1 (ADE-3410 only)
If any of the above items are missing or damaged, contact
your local dealer for support.
3. Hardware Installation
Please connect the device to you computer as follow:
l If connecting to the splitter, connect the “Line” splitter to
wall jack using one telephone cable
l Use another telephone cable to connect “MODEM” port of
the splitter and “LINE” port of the modem. The “Phone”
port of the splitter can be used to connect the telephone
by a telephone cable.
l Use Ethernet cable to connect “LAN” port of the modem
and “LAN” port of your computer.
Connect ADE-3410 to the PC’s USB port as follow:
l Connect the USB cable to USB port of ADE-3410. The
cable has two different connectors.
l Connect the other end of the USB cable to PC’s USB
port.
If do not need to connect to the splitter,
l Connect the modem to wall jack with a telephone cable.
l Use Ethernet cable to connect “LAN” port of the modem
and network adaptor of your computer.
Power
Phone
Jack
RJ-11
Splitter
Phone
PC
RJ-45
Power
Adpter
Modem
Phone
Line
ADE-3410
Line USB
Ethernet
Reset Power
ON/OFF

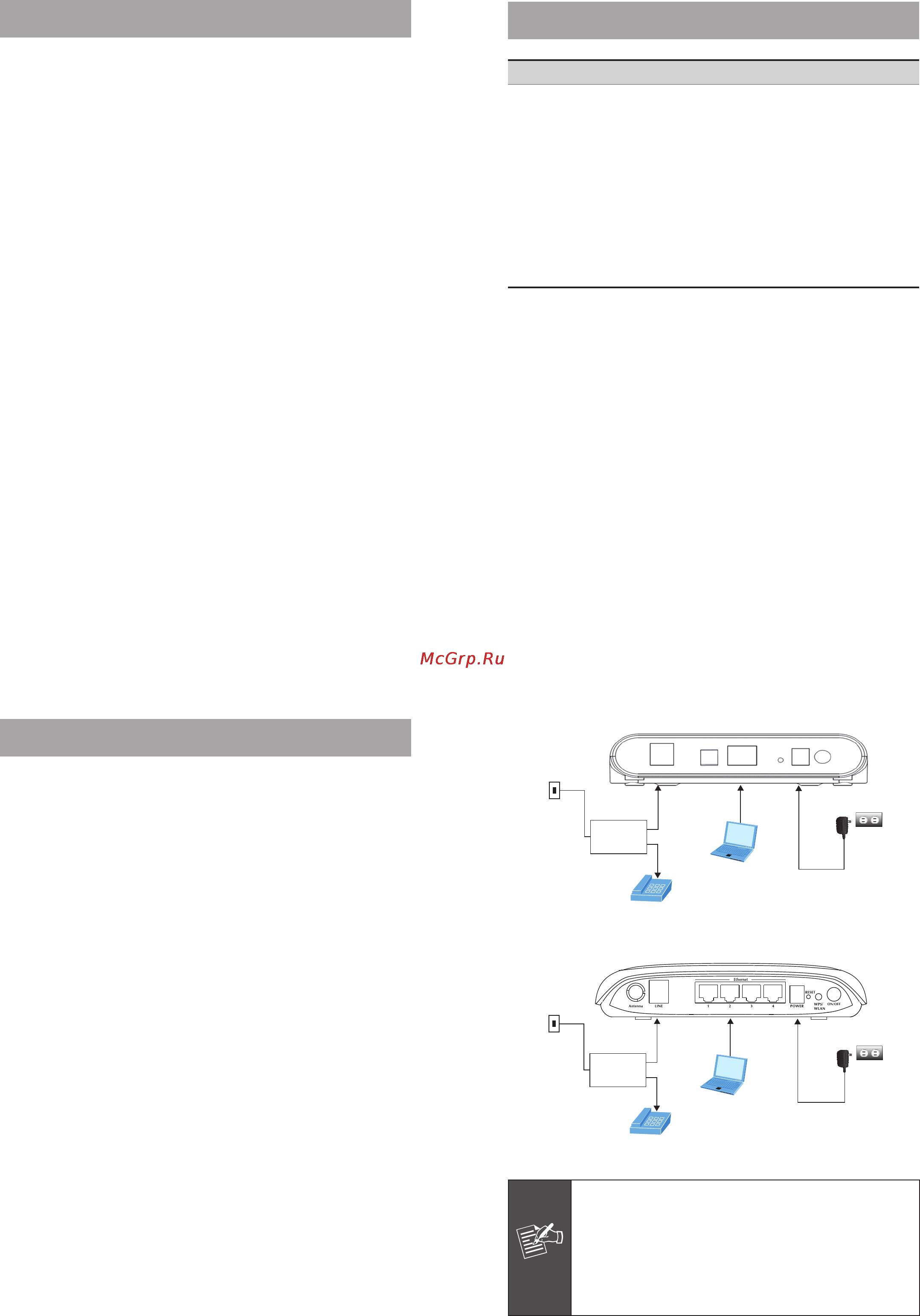

Figure 1: ADE-3410 connection diagram
Power
Phone
Jack
RJ-11
Splitter
Phone
PC
RJ-45
Power
Adpter
Modem
Phone
Line
ADW-4401
Figure 2: ADW-4401 connection diagram
Note
1. The ADE-3410 may connect via only USB or
Ethernet. The preferred connectivity method
is to use the Ethernet. If your PC doesn’t
support Ethernet port, you need to use USB
port and install additional software.
2. The default SSID of the ADW-4401 is “ADW-
4401”.
