Note:
• This unit is for vehicles with a 12-volt battery
and negative grounding. Before installing it in a
recreational vehicle, truck, or bus, check the bat-
tery voltage.
• To avoid shorts in the electrical system, be sure
to disconnect the ≠ battery cable before begin-
ning installation.
• Refer to the owner’s manual for details on con-
necting the power amp and other units, then
make connections correctly.
• Secure the wiring with cable clamps or adhesive
tape. To protect the wiring, wrap adhesive tape
around them where they lie against metal parts.
• Route and secure all wiring so it cannot touch
any moving parts, such as the gear shift, hand-
brake and seat rails. Do not route wiring in
places that get hot, such as near the heater outlet.
If the insulation of the wiring melts or gets torn,
there is a danger of the wiring short-circuiting to
the vehicle body.
• Don’t pass the yellow lead through a hole into
the engine compartment to connect to the battery.
This will damage the lead insulation and cause a
very dangerous short.
• Do not shorten any leads. If you do, the protec-
tion circuit may fail to work when it should.
• Never feed power to other equipment by cutting
the insulation of the power supply lead of the
unit and tapping into the lead. The current capac-
ity of the lead will be exceeded, causing over-
heating.
• When replacing the fuse, be sure to only use a
fuse of the rating prescribed on this unit.
• Since a unique BPTL circuit is employed, never
wire so the speaker leads are directly grounded
or the left and right ≠ speaker leads are com-
mon.
• Speakers connected to this unit must be high-
power with minimum rating of 50 W (45W)* and
impedance of 4 to 8 ohms. Connecting speakers
with output and/or impedance values other than
those noted here may result in the speakers
catching fire, emitting smoke or becoming dam-
aged.
* DEH-281MP, DEH-1820R, DEH-1800R
• When this product’s source is switched ON, a
control signal is output through the blue/white
lead. Connect to an external power amp’s system
remote control or the car’s Auto-antenna relay
control terminal (max. 300 mA 12 V DC). If the
car features a glass antenna, connect to the anten-
na booster power supply terminal.
• When an external power amp is being used with
this system, be sure not to connect the blue/white
lead to the amp’s power terminal. Likewise, do
not connect the blue/white lead to the power ter-
minal of the auto-antenna. Such connection could
cause excessive current drain and malfunction.
• To avoid a short-circuit, cover the disconnected
lead with insulating tape. Insulate the unused
speaker leads without fail. There is a possibility
of a short-circuit if the leads are not insulated.
• If this unit is installed in a vehicle that does not
have an ACC (accessory) position on the ignition
switch, the red lead of the unit should be con-
nected to a terminal coupled with ignition switch
ON/OFF operations. If this is not done, the vehi-
cle battery may be drained when you are away
from the vehicle for several hours.
• The black lead is ground. Please ground this lead
separately from the ground of high-current prod-
ucts such as power amps.
If you ground the products together and the
ground becomes detached, there is a risk of dam-
age to the products or fire.
Connecting the Units
8.
Cap (1*)
When not using this terminal,
do not remove the cap.
14.
ISO connector
Note:
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to
connect to both connectors.
1*
2*
4*
3*
5*
10.
Yellow (2*)
To terminal always supplied
with power regardless of
ignition switch position.
12.
Red (4*)
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
9.
Yellow (3*)
Back-up
(or accessory)
11.
Red (5*)
Accessory
(or back-up)
7.
Connect leads of the same
color to each other.
18.
Blue/white
To system control terminal of
the power amp (max. 300 mA
12 V DC).
20.
Blue/white (7*)
To Auto-antenna relay control terminal
(max. 300 mA 12 V DC).
Note:
Depending on the kind of vehicle, the function
of 3* and 5* may be different. In this case, be
sure to connect 2* to 5* and 4* to 3*.
6.
2. This Product
3.
Antenna jack
16.
Connecting cords with RCA pin plugs
(sold separately)
21.
Blue/white (6*)
22.
The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and 7*
when Pin 5 is an antenna control type. In another
type of vehicle, never connect 6* and 7*.
1. Rear output
13.
Black (ground)
To vehicle (metal) body.
26.
23. Left
24.
Right
25.
Rear Speaker
25.
Rear Speaker
17.
Power amp
(sold separately)
19.
System remote control
Perform these connections when using
the optional amplifier.
5.
Jack for Wired Remote Control Adaptors
Please see the Instruction Manual for the
Wired Remote Control Adaptors (sold separately).
(DEH-2800MP, DEH-2800MPB, DEH-2820MP)
4. Fuse (10 A)
15. Speaker leads
White: Front left +
White/black: Front left ≠
Gray: Front right +
Gray/black: Front right ≠
Green: Rear left +
Green/black: Rear left ≠
Violet: Rear right +
Violet/black: Rear right ≠
• Cords for this product and those for other prod-
ucts may be different colors even if they have
the same function. When connecting this prod-
uct to another product, refer to the supplied
manuals of both products and connect cords that
have the same function.
Connecting the Units
<ENGLISH>

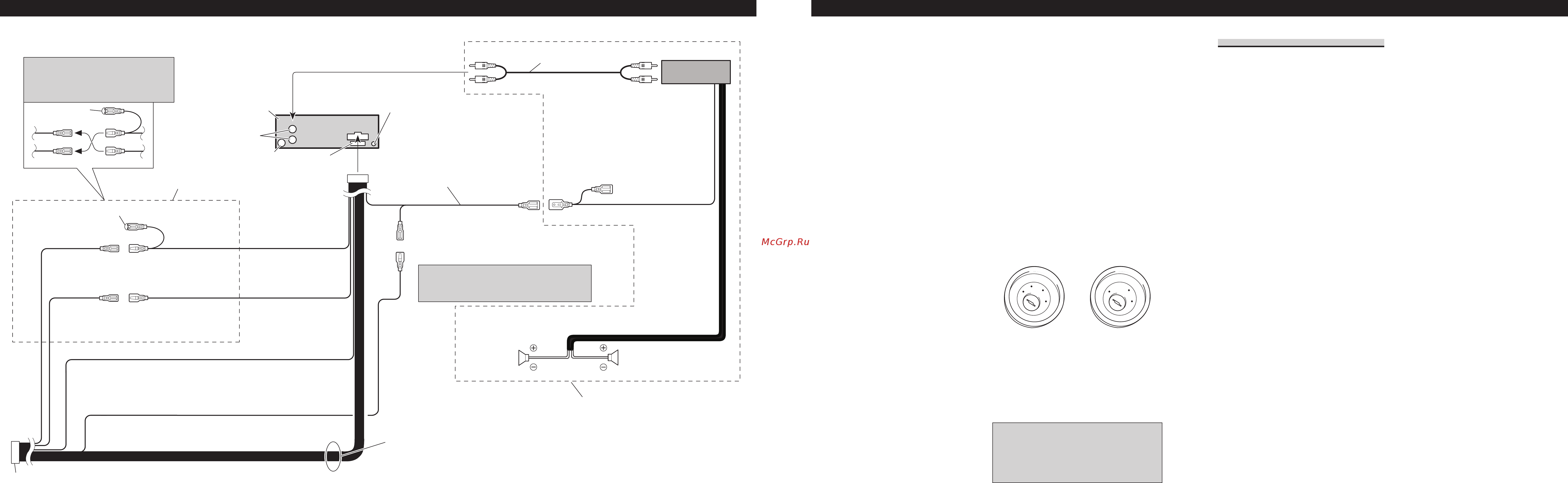

Connection Diagram
1. Rear output
2. This product
3. Antenna jack
4. Fuse (10 A)
5. Jack for Wired Remote Control Adaptors
Please see the Instruction Manual for the Wired
Remote Control Adaptors (sold separately).
(DEH-2820MP, DEH-2800MPB, DEH-2800MP)
6. Note:
Depending on the kind of vehicle, the function of
3* and 5* may be different. In this case, be sure
to connect 2* to 5* and 4* to 3*.
7. Connect leads of the same color to each other.
8. Cap (1*)
When not using this terminal, do not remove the
cap.
9. Yellow (3*)
Back-up (or accessory)
10. Yellow (2*)
To terminal always supplied with power regard-
less of ignition switch position.
11. Red (5*)
Accessory (or back-up)
12. Red (4*)
To electric terminal controlled by ignition switch
(12 V DC) ON/OFF.
13. Black (ground)
To vehicle (metal) body.
14. ISO connector
Note:
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to connect
to both connectors.
15. Speaker leads
White : Front left +
White/black : Front left ≠
Gray : Front right +
Gray/black : Front right ≠
Green : Rear left +
Green/black : Rear left ≠
Violet : Rear right +
Violet/black : Rear right ≠
16. Connecting cords with RCA pin plugs (sold
separately)
17. Power amp (sold separately)
18. Blue/white
To system control terminal of the power amp
(max. 300 mA 12 V DC).
19. System remote control
20. Blue/white (7*)
To Auto-antenna relay control terminal
(max. 300 mA 12 V DC).
21. Blue/white (6*)
22.The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 6* and 7*.
23. Left
24. Right
25. Rear Speaker
26. Perform these connections when using the
optional amplifier.
ACC position
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
No ACC position
