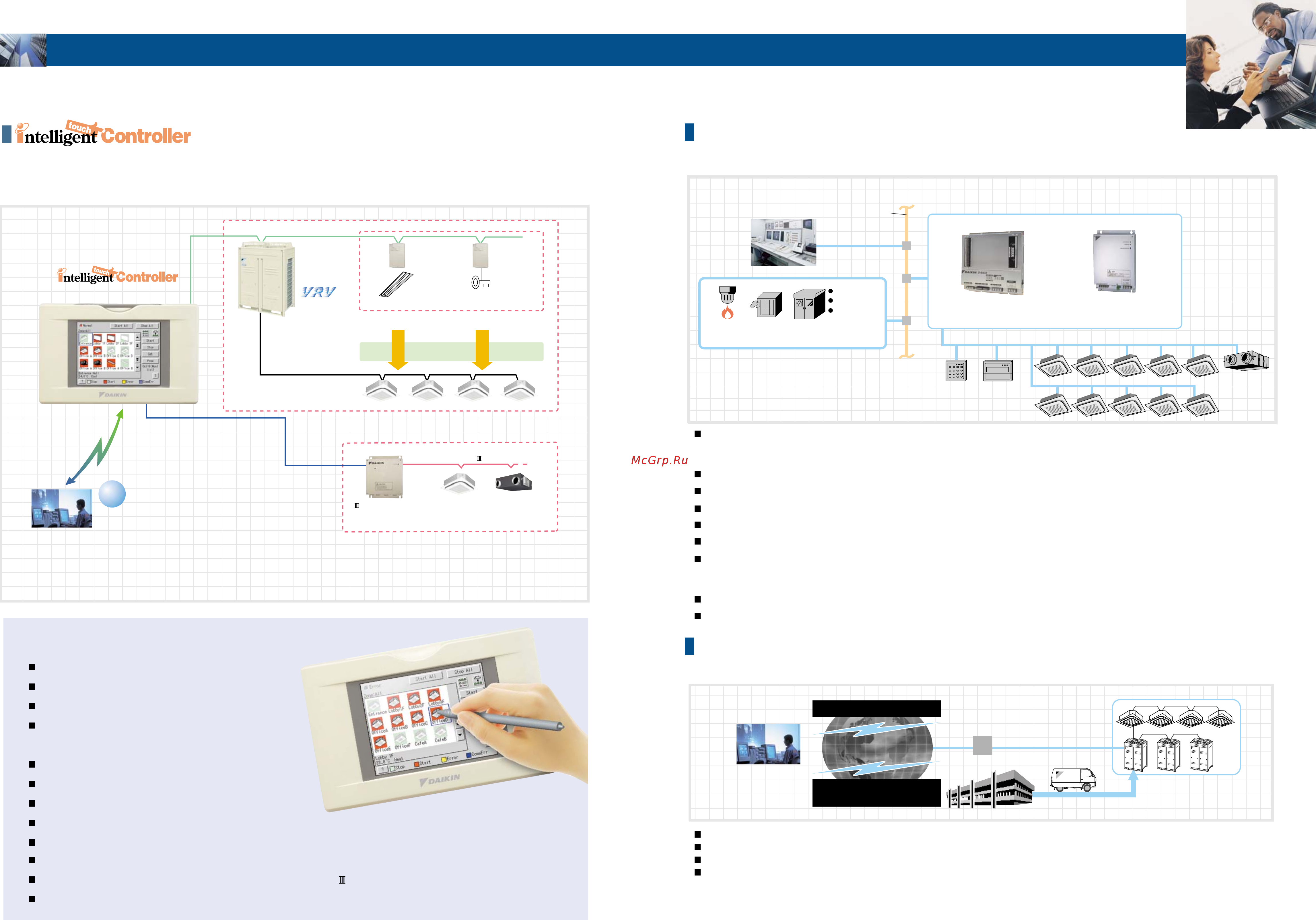

Control Systems
54
Advanced Control Systems
Ethernet
Local Controller
Please contact Daikin for compatibility with BMS system
Security
Power supply facility
Fire alarm
Lift
Pump
Lighting,etc
BMS
Heat Reclaim
Ventilator
VRV System
Integrated control systems that recognise the trend of open control systems
Compatibility with BMS enhanced by utilising the international communication standards, BACnet
®
or LONWORKS
®
.
BTL Certification
PPD data (Optional Di board is required.)
ISO 16484-5 (Does not support IEEE 802.3 protocol for BACnet
®
)
Conformance class 3 (ASHRAE 135–1995)
Standard BACnet
®
Device B-ASC (ASHRAE 135–2001)
Up to 40 outdoor units and 256 indoor unit groups on one gateway (Optional adaptor)
XIF file for confirming of specifications of the units.
Connectable up to 10 outdoor units and 64 indoor unit groups.
DMS504B51 Interface for use in LONWORKS
®
DMS502B51 Interface for use in BACnet
®
Local dealers
I/F unit
*
4
Automatic data transfer
Malfunction report
by E-mail
INTERNET
ACC centre
Maintenance services that boost profits and customer satisfaction
Air Conditioning Network Service System
24 hour on-line diagnostic system
Energy saving and extension of aircon operating life
Maintenance management via A/C network service system reports
Reliable service at short lead time
DMS502B51
(Interface for use in BACnet
®
)
DMS504B51
(Interface for use in LONWORKS
®
)
BACnet
®
LONWORKS
®
Interface for and
*
1. Model name varies upon the system size.
*
2. BACnet
®
is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE).
*
3. LonWorks
®
is a trademark of Echelon Corporation registered in the United States and other countries.
*
4. For an I/F unit, one of the following can be selected:
Local Controller
, intelligent Touch Controller, or intelligent Touch Manager.
*
5. Refer to the Options page for the name of each model.
Communication functions in the user-friendly icon-based multilingual
controller simplify centralised control of the VRV system.
Features
Colour LCD touch panel icon display
Small manageable size
Simplified engineering
Multi language (English, French, Italian, German,
Spanish, Dutch, Portuguese, Chinese and Korean)
Yearly schedule
Auto heat/cool change-over
Temperature limitation
Enhanced history function
Simple Interlock Function
Built-in modem for connecting to Air Conditioning Network Service System (Option)
Management of facilities/equipment other than A/C units (By adding Dio unit or Di unit)
Doubling of number of connectable indoor units by adding a D -NET Plus Adaptor (Option)
Input
(Lights)
Input (Key signal -
General purpose ADP)
Dio Unit
DEC102A51
(Option)
Di Unit
DEC101A51
(Option)
System
Set temperature
change command
OFF
command
RS-232C
Air Conditioning Network
Service System modem
for connections
Number of indoor units expanded from 64 to 128.
D -NET
D -NET Plus Adaptor
DCS601A52 (Option)
Indoor Unit
Heat Reclaim
Ventilator
ACC centre
• Air Conditioning Network Service System
(Optional Maintenance Service)
System
Components
Via internet
DCS601C51
53
