Troubleshooting by Indication on the Remote Controller Si34-704
280 Troubleshooting
Troubleshooting
YES
NO
YES
NO
YES
NO
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.

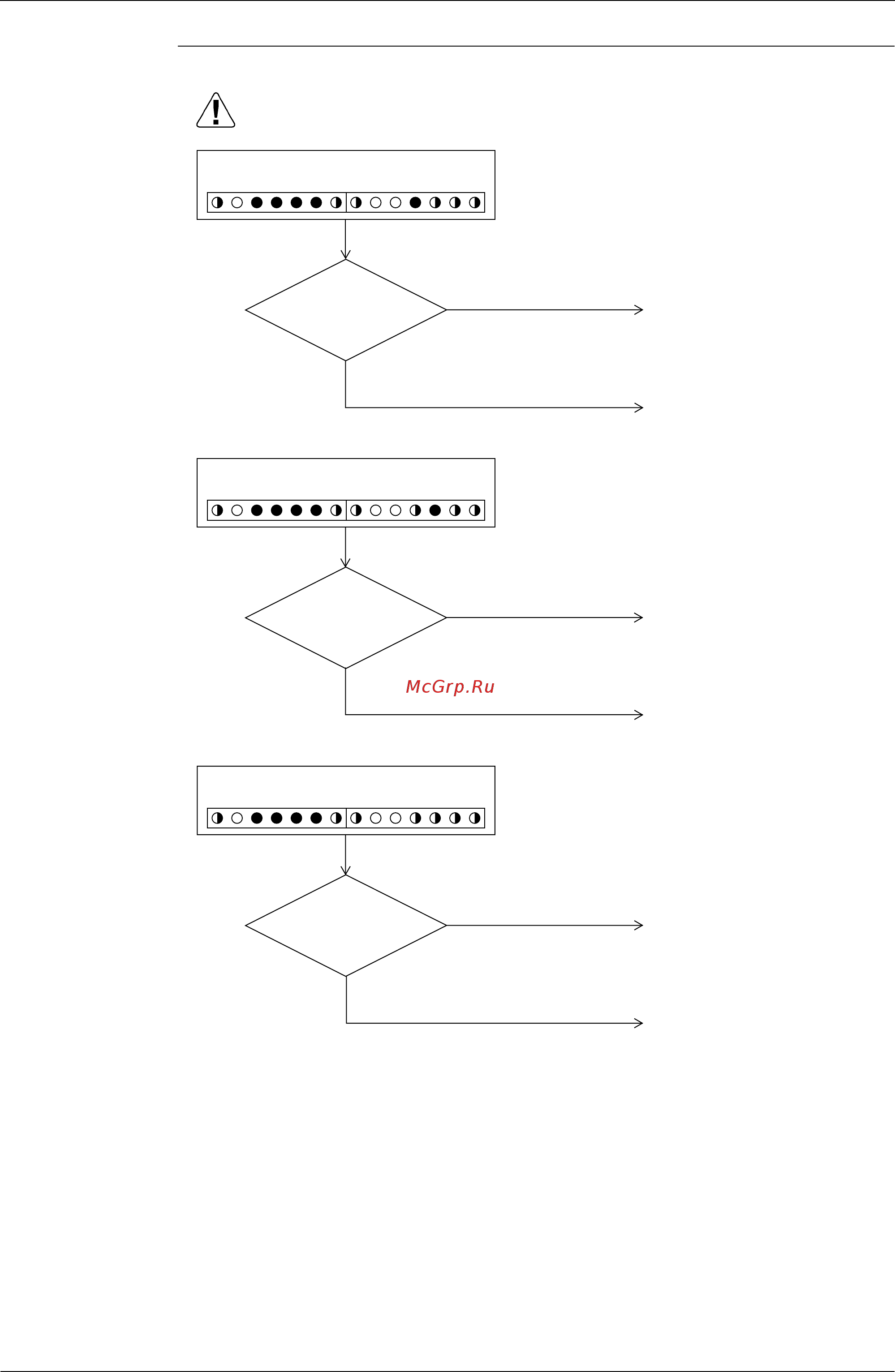

Diagnosis Flow 6
Replace the main PCB of the
outdoor unit.
Correct the connecting wires of the
outdoor multi and then reset the
power supply.
Replace the main PCB of the
outdoor unit.
Correct the connecting wires of the
outdoor multi and then reset the
power supply.
Replace the main PCB of the
outdoor unit.
Correct the connecting wires of the
outdoor multi and then reset the
power supply.
Diagnosis Flow 7
Diagnosis Flow 8
Check
the connection
status of one of the connecting
wires of Outdoor Multi. Check
if the wiring is broken or
disconnected.
In the
connection status
of theoutdoor multi, check if
more than 4 outdoor units
are connected.
Check the
connection status of the
connecting wires of outdoor multi. Check
if the wiring has any connection error
or broken, or is about to be
disconnected.
Check 3
Check 3
Check 3 Check 4
Check 4
Check 4
