3. Hardware Installation

Step 1: Remove the Front Case

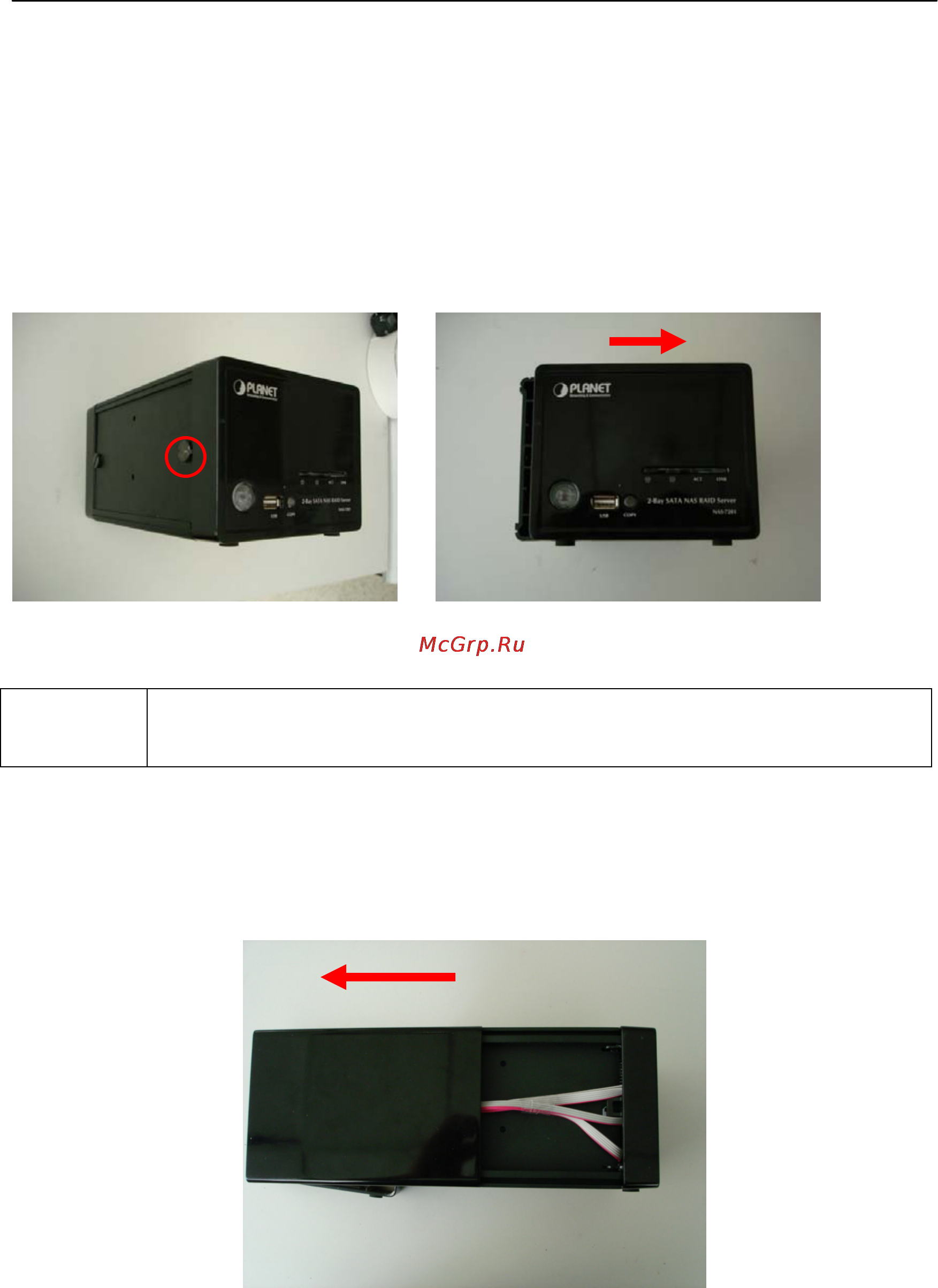

Follow the figure below to release the screws and open the front case with the direction. Slightly

push the front case and lift up the plastic case.

Note When lift up the front case, please be careful for the LED wire

that connect to the front panel LED

Step 2: Pull out the side case

Also pull out the side case to locate the HDD mounting screws. This operation is optional
