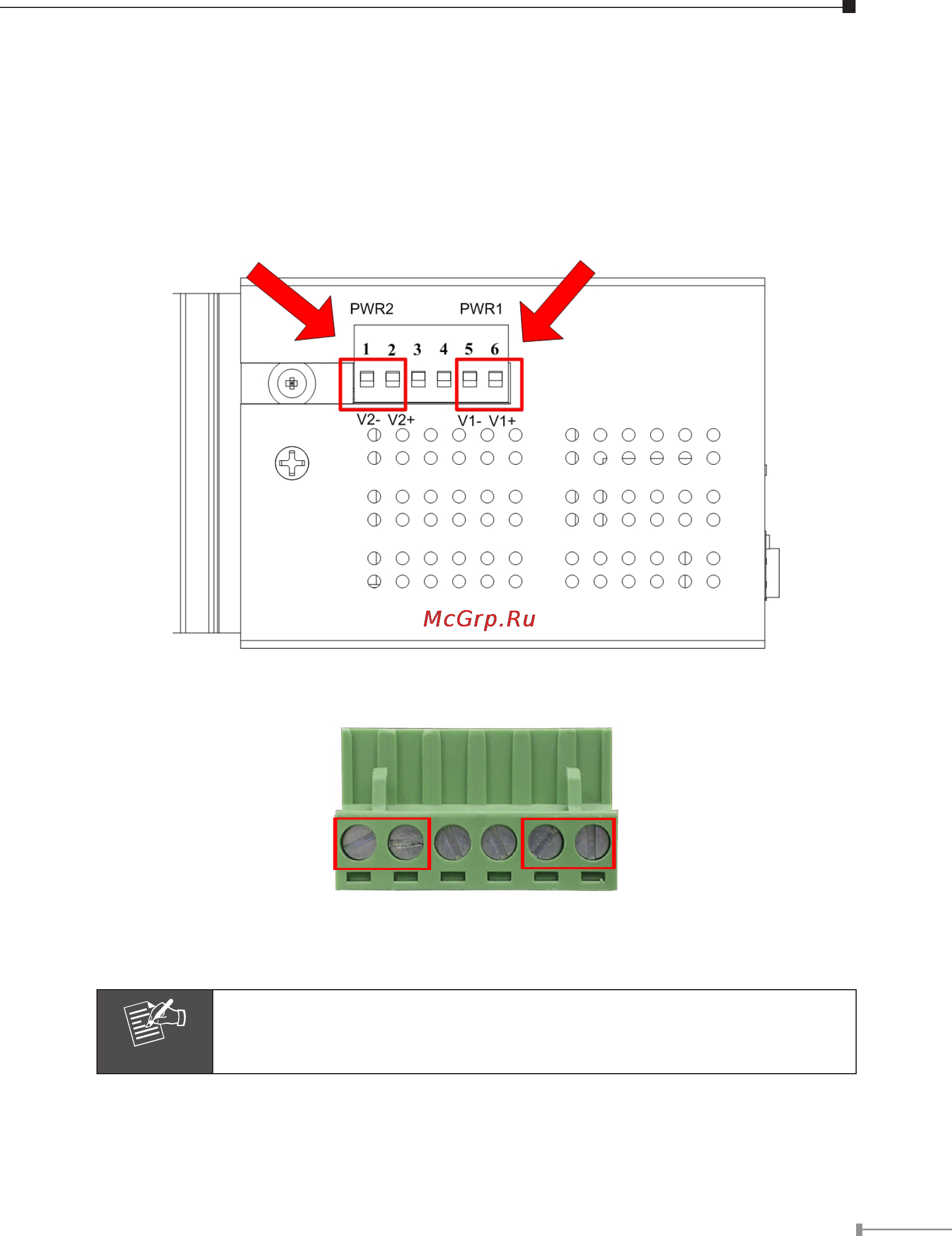

3. Wiring the Power Inputs
The6-contactterminalblockconnectoron thetoppanelof ISW-1022Misusedfor
two DC redundant power input. Please follow the steps below to insert the power
wire.
1.Insert positive/ negative DC powerwires intothe contacts 1 and2 forPOWER
2,or5and6forPOWER1.
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosing.
1 2 3 4 5 6
Power 2 Power 1
- + - +
Note
The wire gauge for the terminal block should be in the range
between 12 ~ 24 AWG.
