4. Terminal Setup

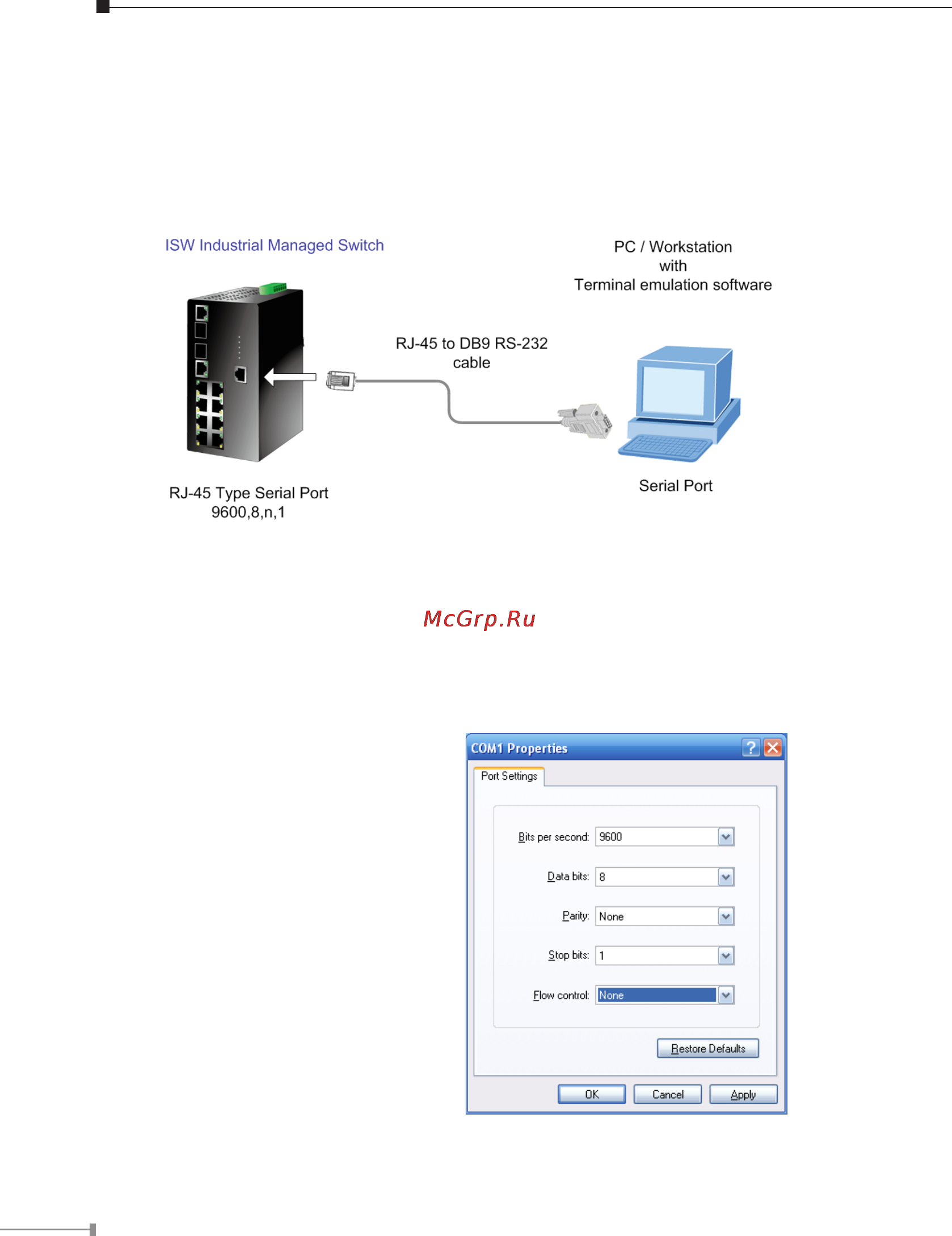

Tocongurethesystem,connectaserialcabletoaCOM port on a PC or notebook

computerandtoRJ-45typeserial(console)portoftheManagedIndustrialSwitch.

Theconsoleportof theManagedIndustrial SwitchisDCEalready,so thatyoucan

connecttheconsoleportdirectlythroughPCwithouttheneedofNullModem.

A terminal program is required to make the software connection to the ISW

Managed Industrial Switch. Windows’ Hyper Terminal program may be a good

choice.TheHyperTerminalcanbeaccessedfromtheStartmenu.

1. Click

START,thenPrograms,AccessoriesandthenHyper Terminal.

2.When the following screen appears, make sure that the COM port should be

conguredas:

Baud:9600

Parity:None

Databits:8

Stopbits:1

FlowControl:None
