3. Hardware Installation
In this section, we will describe how to install the 10/100BaseTX to 100BaseFX Media Converter and the

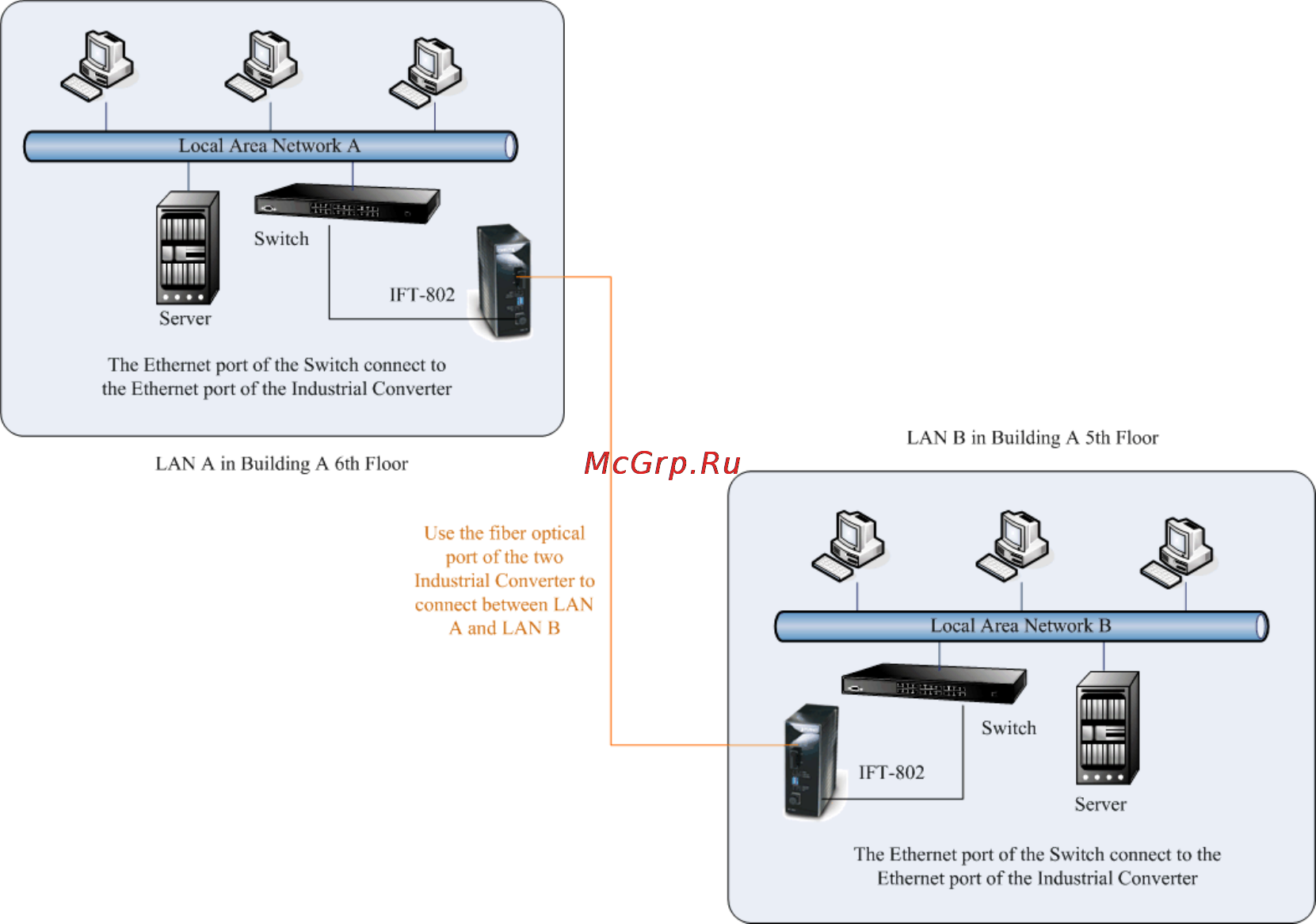

installation points for the attention. In Figure G, it is an example application for the Converter.
Installation Steps
Step1: Unpacked the Industrial media converter.
Step2: Check the DIN-Rail is screwed on the Industrial media converter. Please refer to DIN-Rail
Mounting section for DIN-Rail installation if the DIN-Rail is not screwed on the Industrial media converter.
If you want to wall mount the Industrial media converter, then please refer to Wall Mount Plate Mounting
section for wall mount plate installation.
Step3: To insert the Industrial media converter into the track or hang on the wall, please refer to the
Mounting Installation section.
Step4: Power on the Industrial media converter. The power LED on the Industrial media converter will
light up. Please refer to the LED Indicators section for meaning of LED lights.
Step5: Prepare the twisted-pair, straight through Category 5 cable for Ethernet connection and optic fiber
cable for fiber connection.
