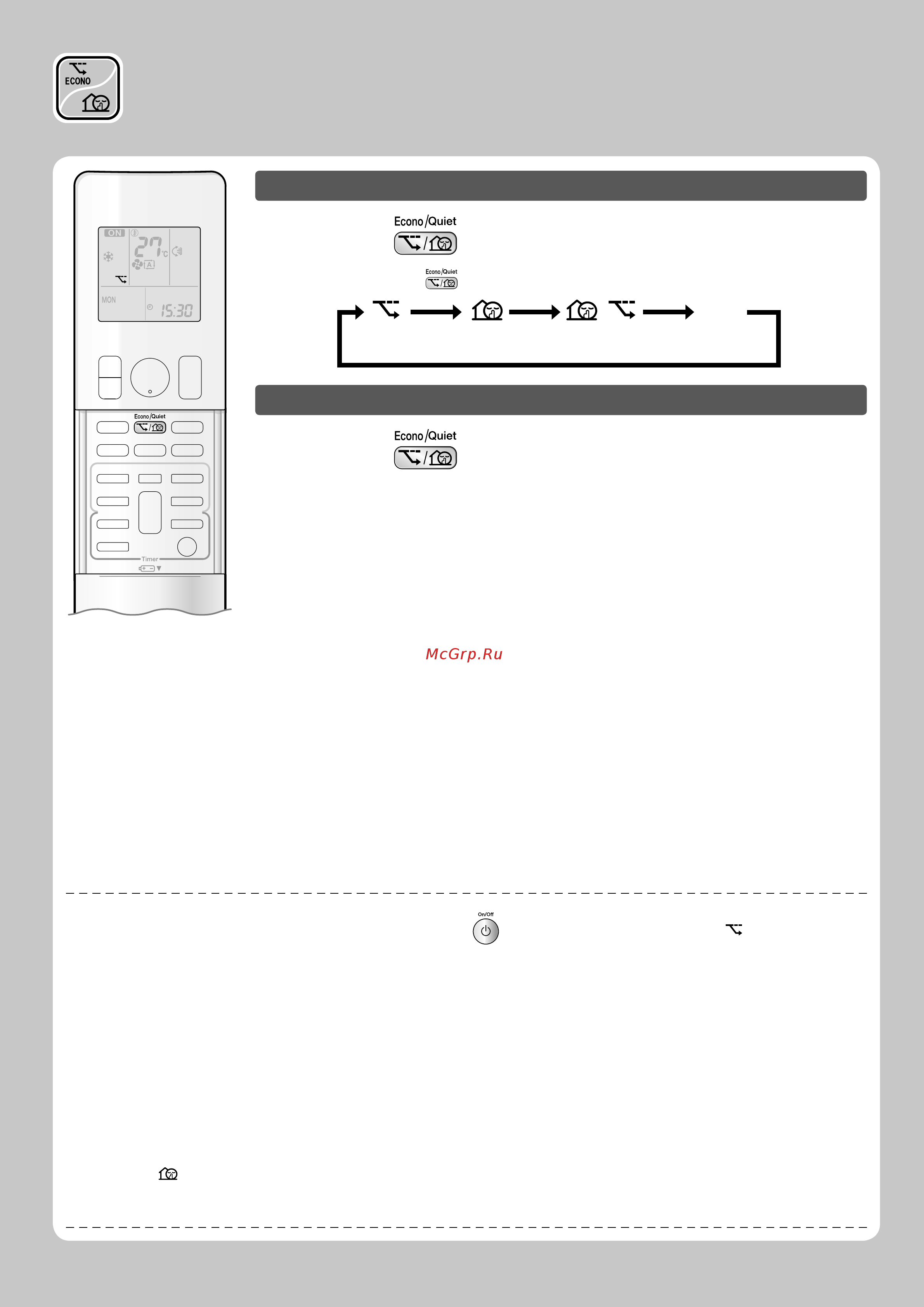

20
ECONO / OUTDOOR UNIT
QUIET Operation
To start operation
Press and select the desired mode.
• Each time the is pressed a different setting option is displayed on the LCD.
ECONO OUTDOOR UNIT
QUIET
blank
No Setting
Combination
To cancel operation
Press and select “blank” on the LCD.
NOTE
Notes on ECONO operation
•
ECONO operation can only be set when the unit is running. Pressing causes the settings to be canceled, and “ ” disappears from the
LCD.
•
ECONO operation is a function which enables effi cient operation by limiting the power consumption of the outdoor unit (operating frequency).
• ECONO operation functions in AUTO, COOL, DRY, and HEAT operation.
• POWERFUL and ECONO operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
• If the level of power consumption is already low, ECONO operation will not drop the power consumption.
Notes on OUTDOOR UNIT QUIET operation
• This function is available in COOL, HEAT, and AUTO operation.
This is not available in FAN and DRY operation.
• POWERFUL operation and OUTDOOR UNIT QUIET operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
• Even if the operation is stopped by using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET
operation, “
” will remain on the remote controller display.
• OUTDOOR UNIT QUIET operation will drop neither the frequency nor fan speed if they have been already dropped low enough.
• This operation is performed with lower power and therefore may not provide a suffi cient cooling (heating) effect.
