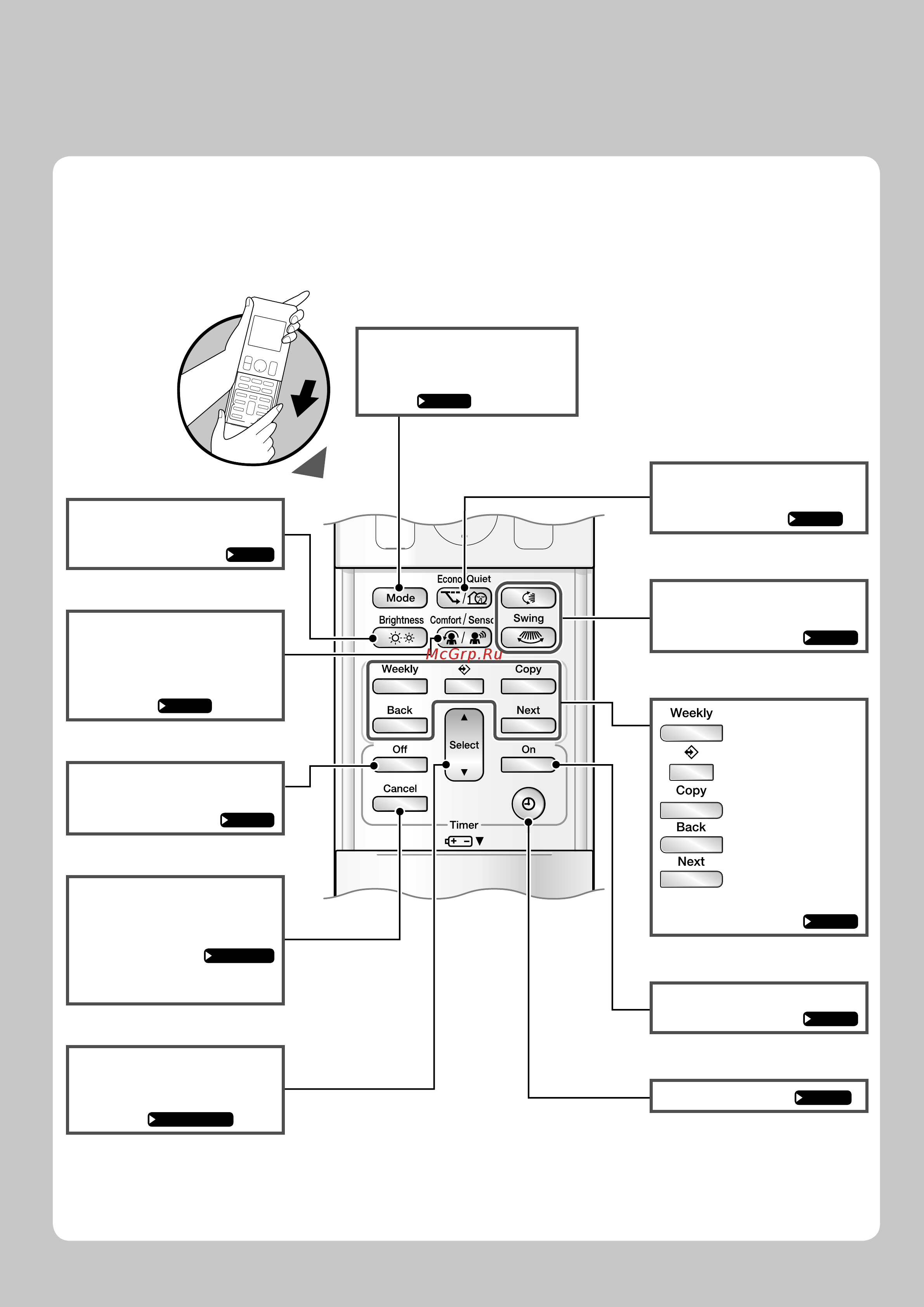

Names of Parts

 Open the front cover

ECONO/QUIET button

• ECONO/OUTDOOR UNIT

QUIET operation.

Page 19

SWING button

•

Adjusting the airﬂ ow direction

Page 13

: WEEKLY button

: PROGRAM button

: COPY button

: BACK button

: NEXT button

• WEEKLY TIMER operation.

Page 23

ON TIMER button

Page 22

CLOCK button

Page 10

Lamp brightness

setting button

Page 9

COMFORT/SENSOR

button

• COMFORT AIRFLOW and

INTELLIGENT EYE

operation.

Page 15

OFF TIMER button

(NIGHT SET mode)

Page 21

TIMER CANCEL

button

• It cancels the timer setting.

Page 21,22

• It cannot be used for the

WEEKLY TIMER operation.

SELECT button

• It changes the ON/OFF

TIMER and WEEKLY TIMER

settings.

Page 21,22,23

MODE selector button

• It selects the operation mode.

(AUTO/DRY/COOL/HEAT/

FAN)

Page 11
