SiBE061121_A Field Settings
Trial Operation and Field Settings 125
4.3 Facility Setting Jumper (cooling at low outdoor
temperature)
Outline RXG50K3V1B only
This function is limited only for facilities (the target of air conditioning is equipment (such as
computer)). Never use it in a residence or office (the space where there is a human).
Detail You can expand the operation range to –10°C by cutting jumper J6 on the outdoor unit PCB. If
the outdoor temperature falls to –18°C or lower, the operation stops. If the outdoor temperature
rises, the operation starts again.
Caution 1. If the outdoor unit is installed where the outdoor heat exchanger of the unit is exposed to
direct wind, provide a windbreak wall.
2. Intermittent noises may be produced by the indoor unit due to the outdoor fan turning on and
off when using facility settings.
3. Do not place humidifiers or other items which might raise the humidity in rooms where facility
settings are being used.
A humidifier might cause dew condensation from the indoor unit outlet vent.
4. Cutting jumper sets the indoor fan tap to the highest position.
Caution Replace the PCB if you accidentally cut a wrong jumper.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
(R18276)
GND

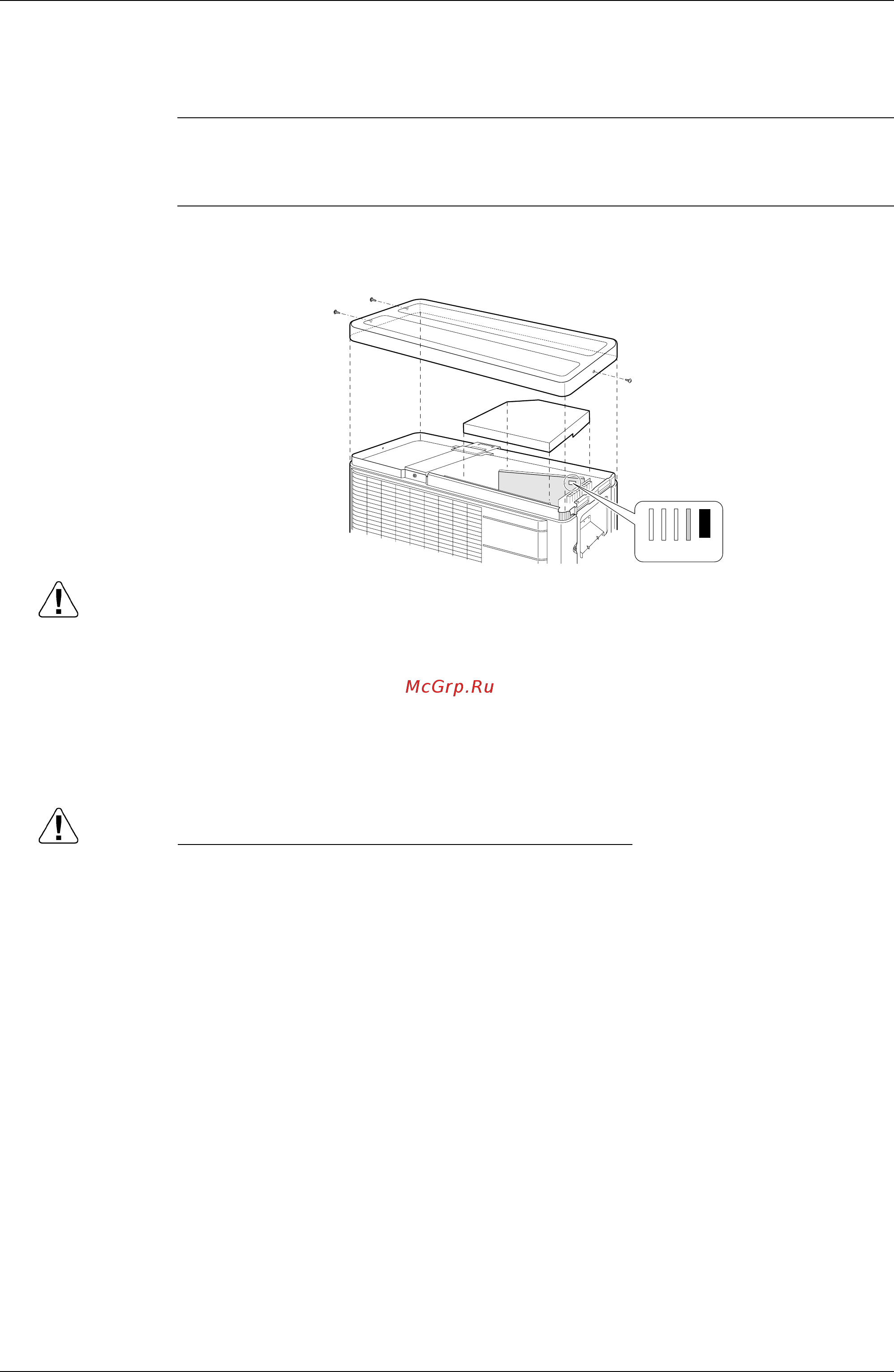

Cut the jumper J6.
J5
J7
J8
J6
