SiBE061121_A Main Functions
Function and Control 31

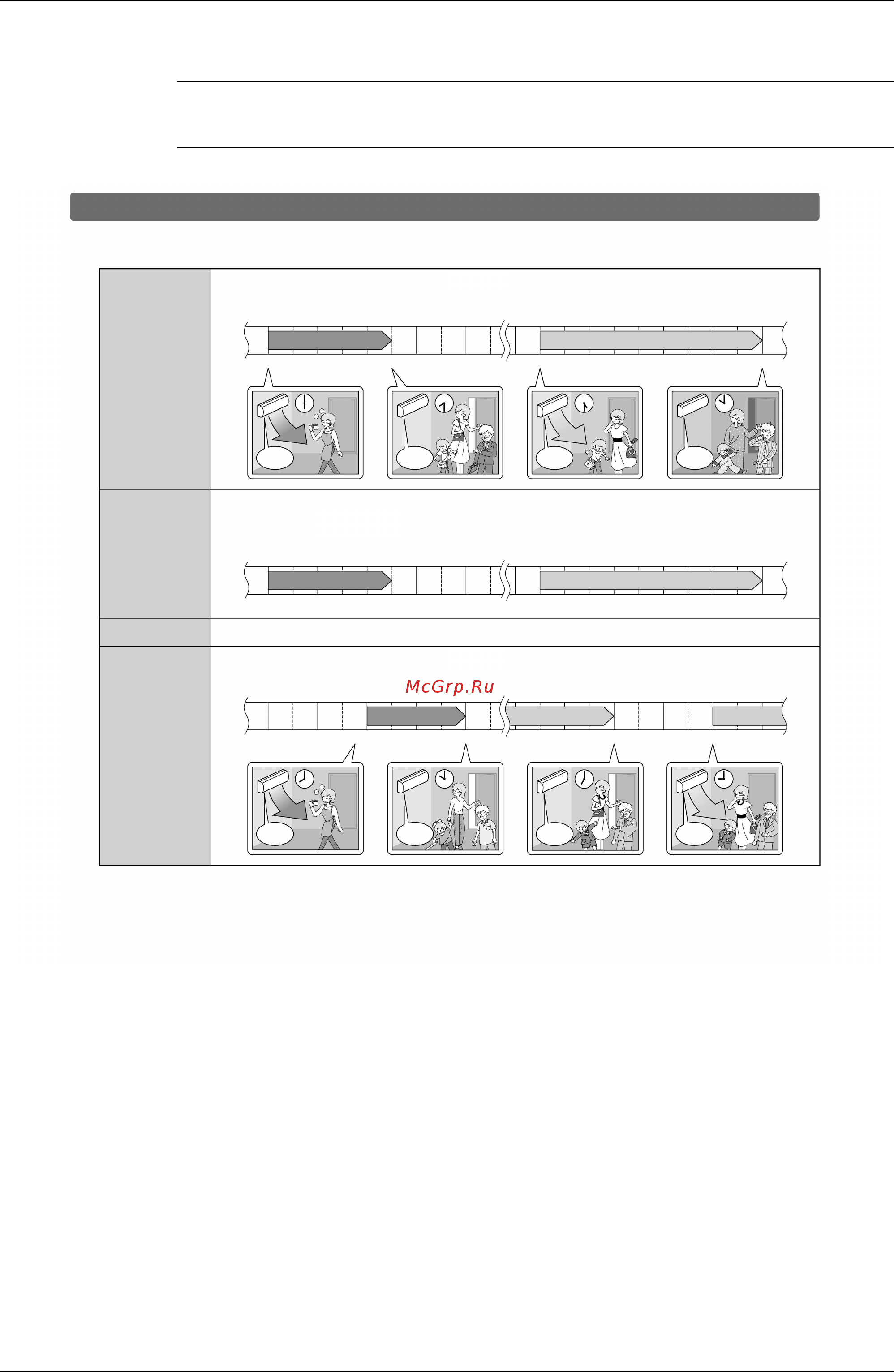

1.13 WEEKLY TIMER Operation
Outline Up to 4 timer settings can be saved for each day of the week (up to 28 settings in total).
The 3 items: “ON/OFF”, “temperature”, and “time” can be set.
Detail
Using in these cases of WEEKLY TIMER
[Monday]
Make timer settings up to programs 1-4.
6:00
8:30
17:30
22:00
6:00
8:30
17:30
22:00
21:0019:0010:008:00
25˚C 27˚C
25˚C
25˚C
27˚C
27˚C
27˚C
ON
ON OFFOFF
ON ON
OFF OFF
[Saturday]
No timer settings
[Sunday]
Make timer settings up to programs 1-4.
Example: The same timer settings are made for the week from Monday through Friday while different timer settings are
made for the weekend.
[Tuesday]
to
[Friday]
Program 1
ON
Program 2
OFF
Program 3
ON
Program 4
OFF
Program 1
ON
Program 1
ON
Program 2
OFF
Program 2
OFF
Program 3
ON
Program 3
OFF
Program 4
OFF
Program 4
ON
Use the copy mode to make settings for Tuesday to Friday, because these settings are the same as
those for Monday.
• Up to 4 reservations per day and 28 reservations per week can be set in the WEEKLY TIMER. The effective use of the
copy mode ensures ease of making reservations.
• The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature
changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn
off the air conditioner automatically if the user forgets to turn it off.
