SiBE061121_A Indoor Unit
Printed Circuit Board Connector Wiring Diagram 11

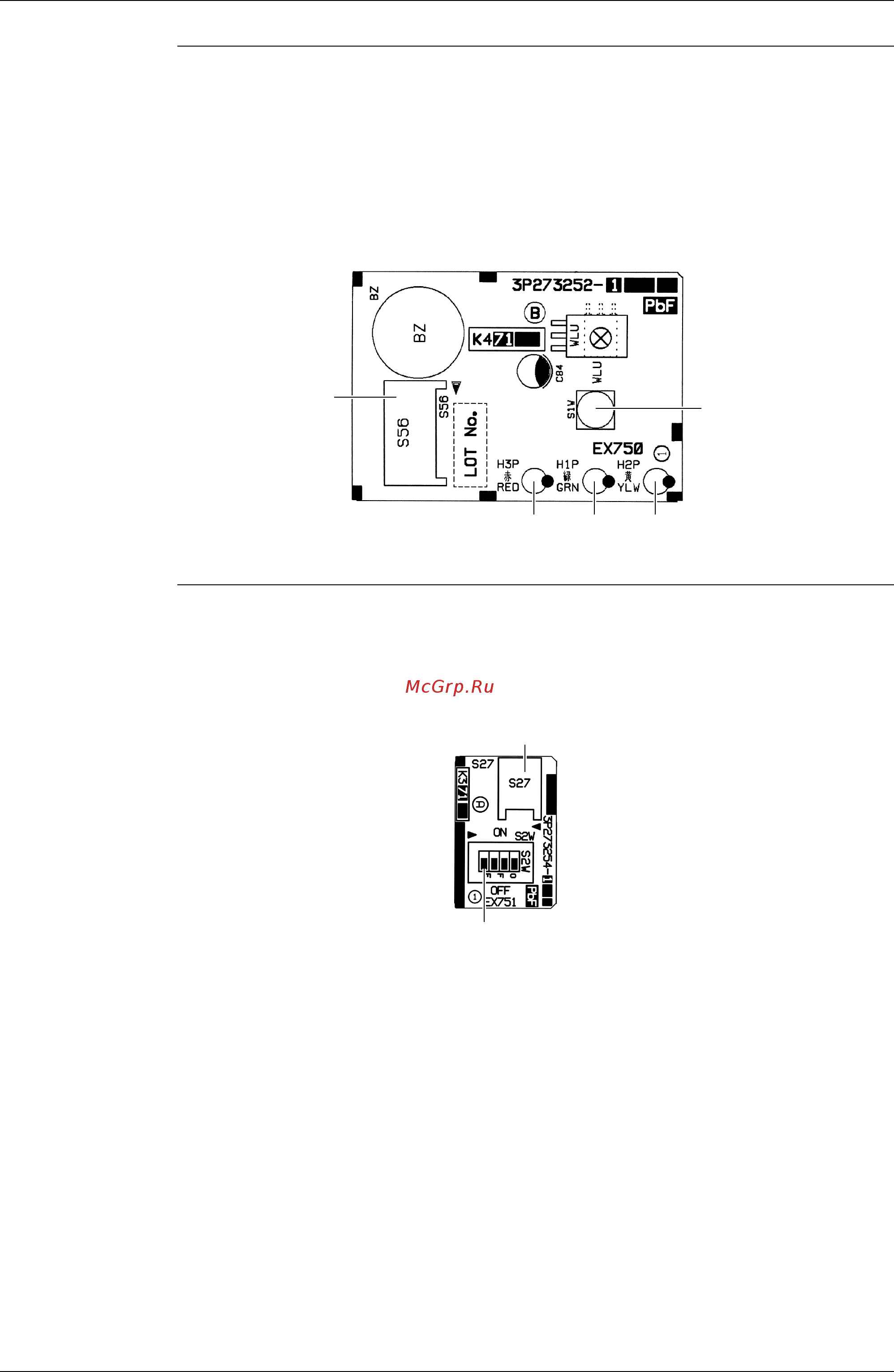

Display PCB
Service PCB
SW-2, SW-3, and SW-4 have no function and keep them off.
1) S56 Connector for main PCB
2) S1W Forced cooling operation [ON/OFF] button
∗ Refer to page 120 for detail.
3) H1P LED for operation (green)
4) H2P LED for timer (yellow)
5) H3P LED for RADIANT operation (red)
S56
S1W
H3P
H1P H2P
3P273252-1
1) S27 Connector for main PCB
2) S2W-1 Address setting switch
∗ Refer to page 123 for detail.
S2W-1
S27
3P273254-1
