SiBE061121_A Outdoor Unit

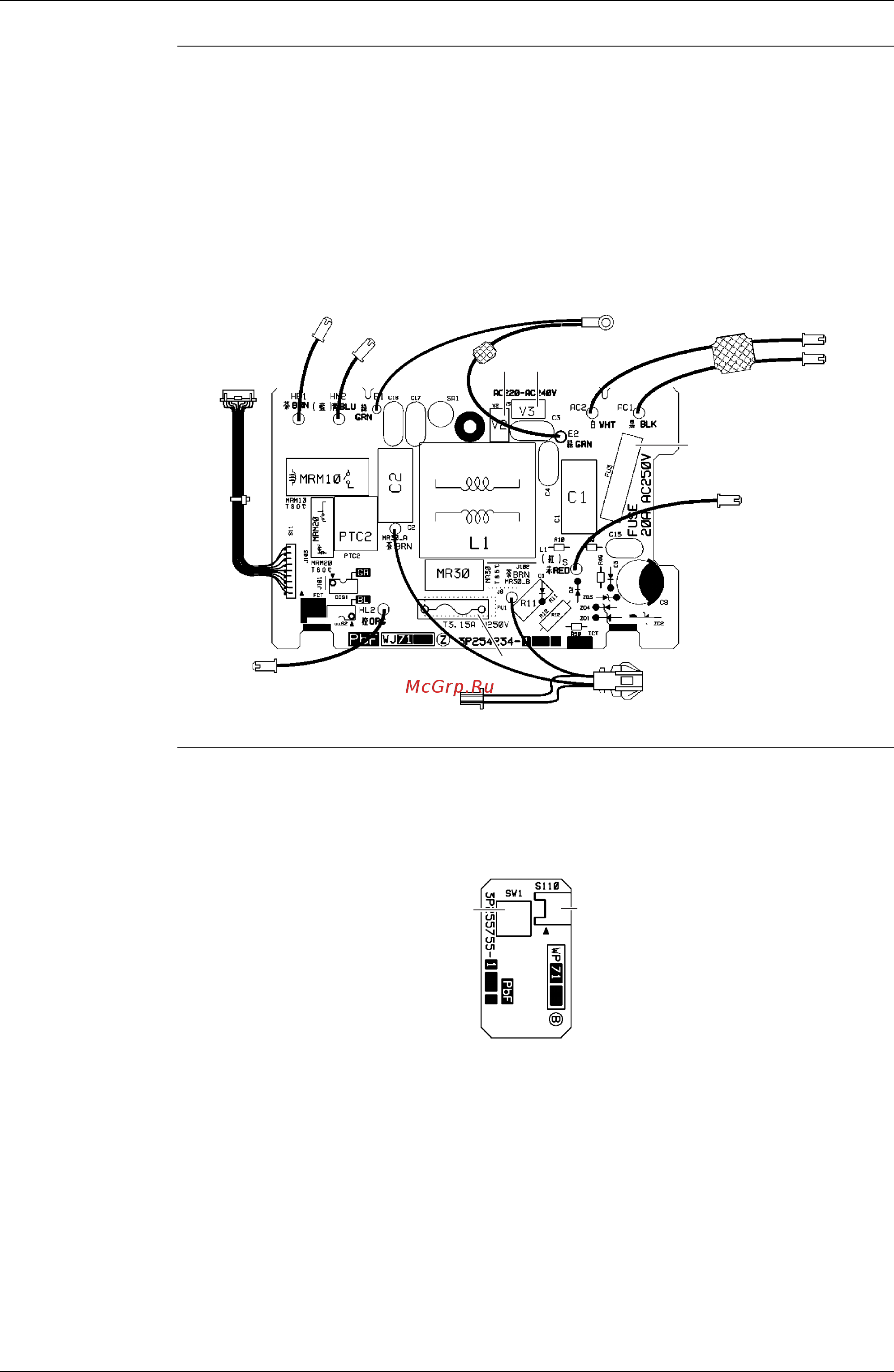

Printed Circuit Board Connector Wiring Diagram 13
Filter PCB
Forced Operation
Button PCB
1) S11 Connector for main PCB
2) AC1, AC2, S Connector for terminal board
3) E1, E2 Terminal for earth wire
4) HL2, HN2 Connector for main PCB
5) HR1 Connector for reactor
6) FU1 Fuse (3.15 A, 250 V)
7) FU3 Fuse (20 A, 250 V)
8) V2, V3 Varistor
HR1
HL2
3P254234-1
FU1
HN2
S
FU3
AC2
E1, E2
AC1
S11
V3V2
to S50
(on main PCB)
1) S110 Connector for main PCB
2) SW1 Forced cooling operation ON/OFF switch
∗ Refer to page 120 for detail.
SW1
S110
3P255755-1
