Indoor Unit Installation (1)

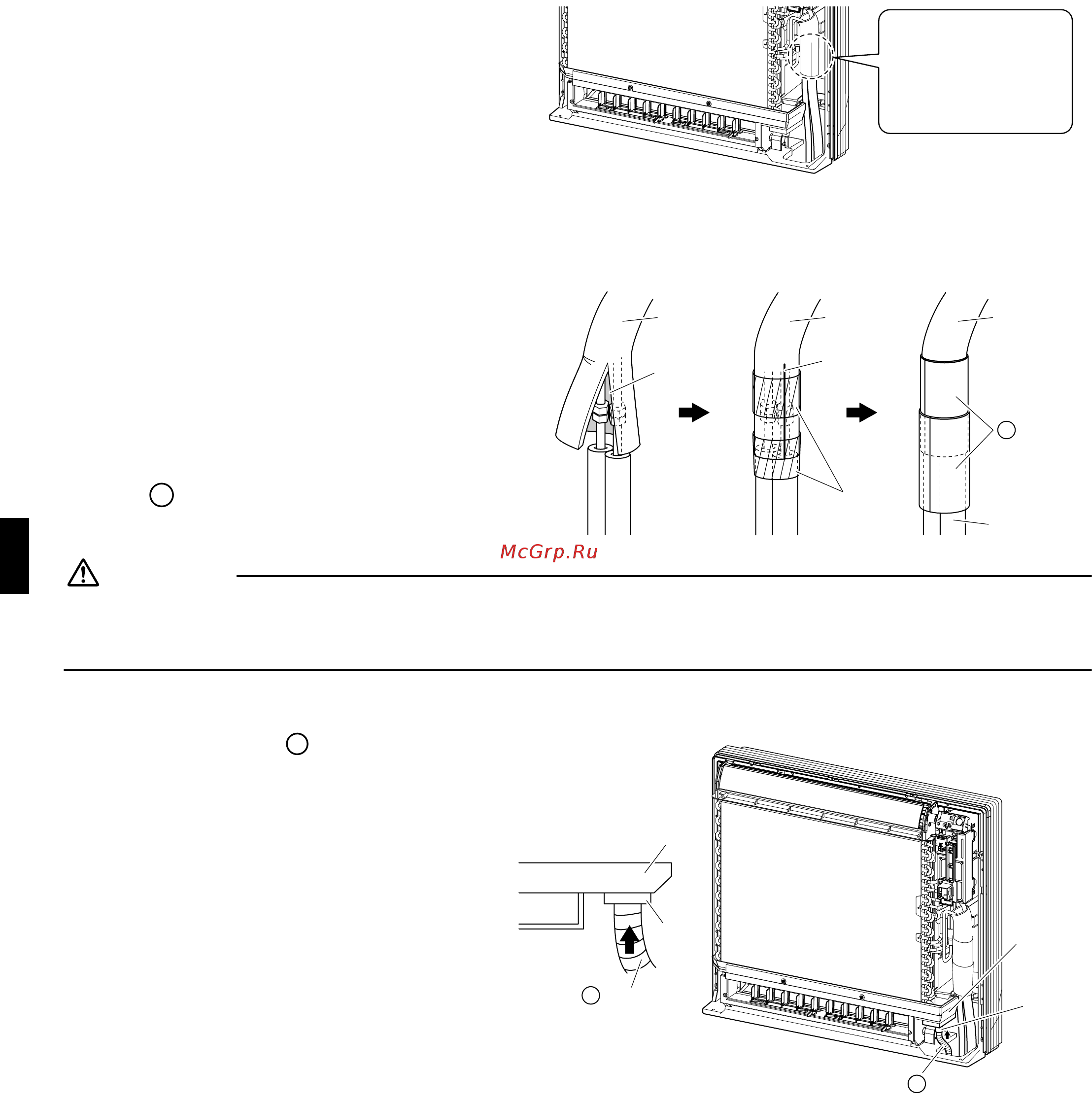

Checking for gas leakage

1) Check for leakage of gas after air purging.

2) See the sections on air purges and gas leak

checks in the installation manual for the outdoor

unit.

Attaching the connection pipe

• Attach the pipe after checking for gas leakage,

described above.

1) Cut the insulated portion of the on-site piping,

matching it up with the connecting portion.

2) Secure the slit on the refrigerant piping side

with the butt joint on the auxiliary piping using

the tape, making sure there are no gaps.

3) Wrap the slit and the butt joint with the included

insulation sheet, making sure there are no

gaps.

CAUTION

1) Insulate the joint of the pipes securely.

Incomplete insulation may lead to water leakage.

2) Push the pipe inside so it does not place undue force on the front grille.

Connecting the drain hose

Insert the supplied drain hose into the

socket of the drain pan.

Fully insert the drain hose until it adheres to

a seal of the socket.

Check for leakage here.

• Apply soapy water and

check carefully for leaking

gas.

•

Wipe soapy water off after

the check is complete.

Refrigerant

pipe

Refrigerant

pipe

Refrigerant

pipe

2)1) 3)

Auxiliary pipe

Slit

Tape

Insulation

sheet

Drain pan

Seal

Drain hose
