5 ■English
Indoor Unit Installation (1)
Exposed installation
1.
Refrigerant piping

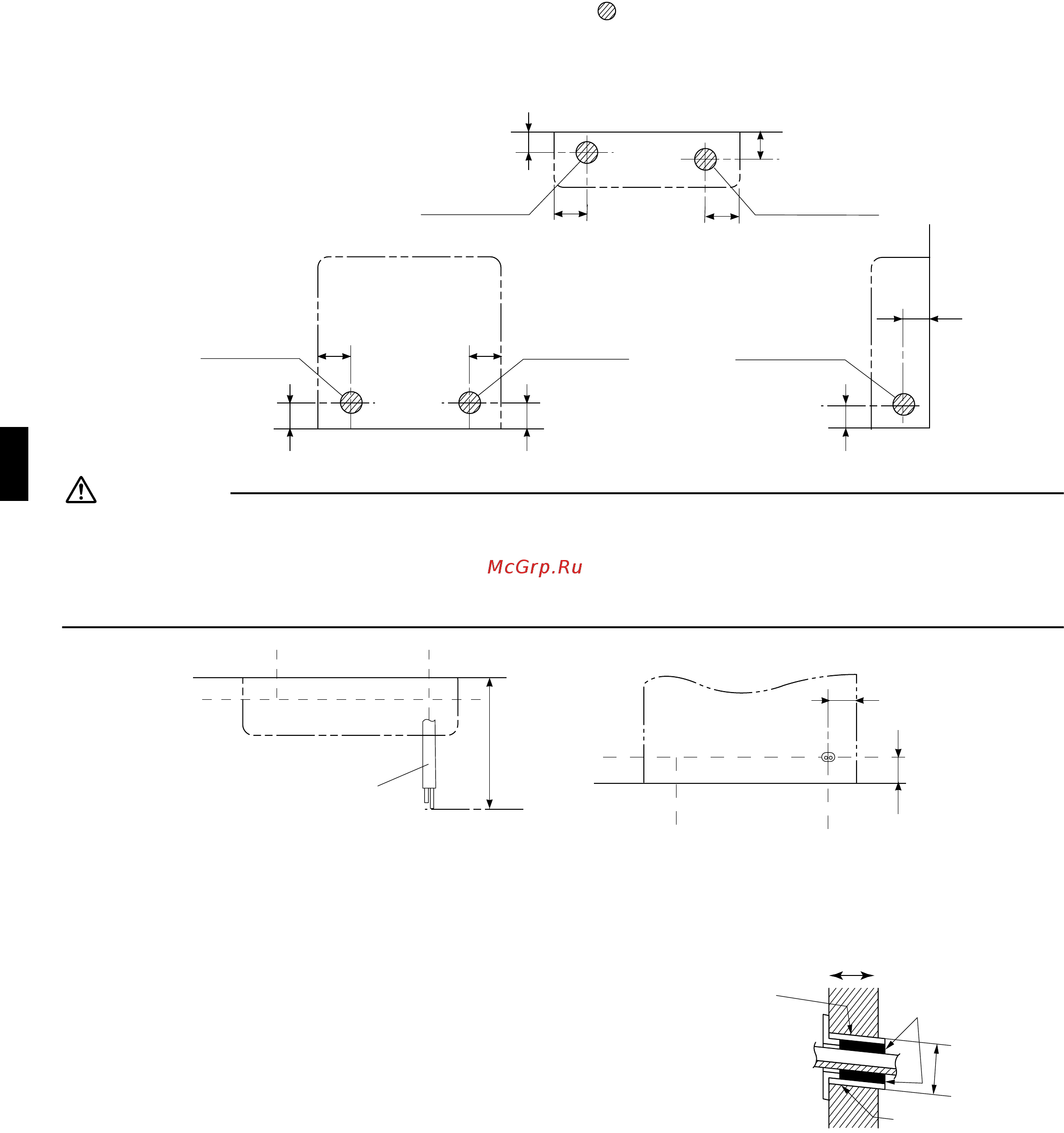

1) Drill a hole (65mm in diameter) in the spot indicated by the symbol in the illustration as below.
2) The location of the hole is different depending on which side of the pipe is taken out.
3) For piping, see 6. Connecting the refrigerant pipe, under Indoor Unit Installation (1).
4) Allow space around the pipe for a easier indoor unit pipe connection.
CAUTION
Min. allowable length
• The suggested shortest pipe length is 2.5m, in order to avoid noise from the outdoor unit and vibration.
(Mechanical noise and vibration may occur depending on how the unit is installed and the environment in which it is used.)
• See the installation manual for the outdoor unit for the maximum pipe length.
• For multi-connections, see the installation manual for the multi-outdoor unit.
2.
Boring a wall hole and installing wall embedded pipe
• For walls containing metal frame or metal board, be sure to use a
wall embedded pipe and wall cover in the feed-through hole to
prevent possible heat, electrical shock, or fire.
• Be sure to caulk the gaps around the pipes with caulking material
to prevent water leakage.
1) Bore a feed-through hole of 65mm in the wall so it has a down
slope toward the outside.
2) Insert a wall pipe into the hole.
3) Insert a wall cover into wall pipe.
4) After completing refrigerant piping, wiring, and drain piping,
caulk pipe hole gap with putty.
45
45
45
45
60
75
75
75
75
45
Left back piping
Left bottom piping Right bottom piping
Wall
(Unit : mm)
Right back piping
Left/right piping
350
75
45
Wall
Refrigerant pipe
Floor
Inside Outside
Caulking
Wall embedded pipe
(Field supply)
Wall hole cover
(Field supply)
Wall embedded pipe
(Field supply)
φ65
01_EN_3P191292-1E.fm Page 5 Monday, November 10, 2008 6:44 PM
