■English 4

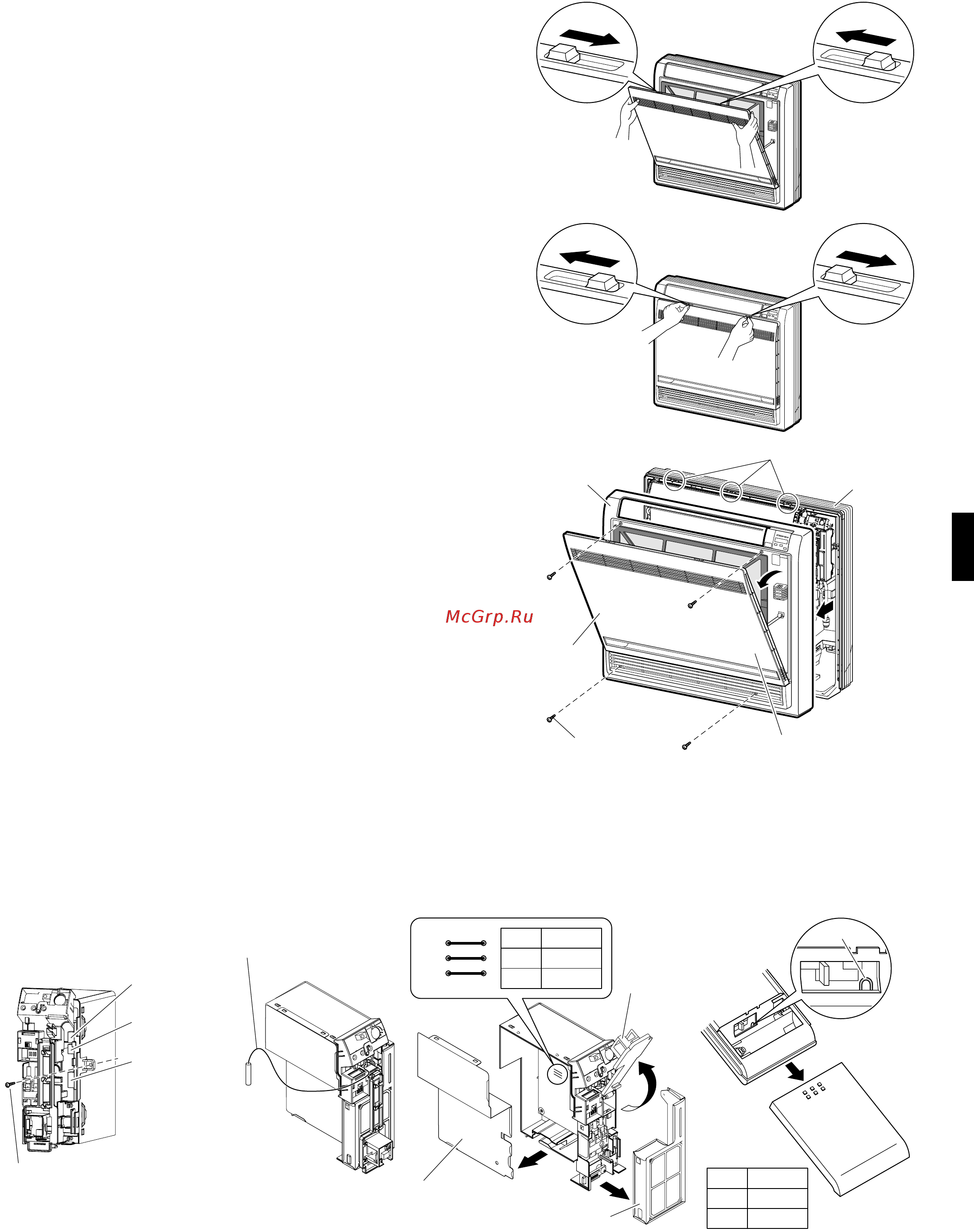

Installation Tips
1.
Removing and installing front panel
• Removal method
1) Slide until the 2 stoppers click into place.
2) Open the front panel forward and undo the string.
3) Remove the front panel.
• Installation method
1) Attach the front grille and front panel after pulling the string
around them.
2) Close the front panel and slide until the stoppers click outside.
2.
Removing and installing front grille
• Removal method
1) Open the front panel.
2) Remove the 4 screws and remove the front grille while pulling
it forward (3 tabs).
• Installation method
1) Secure the front grille with the 4 installation screws (3 tabs).
2) Return the front panel to the original position.
3.
How to set the different addresses
When two indoor units are installed in one room, the two
wireless remote controllers can be set for different addresses.
1) Remove the front grille.
2) Live the sensor securing plate and remove the front metal plate cover.
3) Remove connectors 5P, 6P, and 7P.
4) Remove the electric box (1 screw).
5) Remove the thermistor.
6) Remove the side metal plate cover (7 tabs).
7) Cut the address jumper (JA) on the printed circuit board.
8) Cut the address jumper (J4) in the remote controller.
Front panel
Casing
3 tabs
Front grille
Remove 4 screws.
Remove
front grille
Open the front panel
J4
3) Connector 6P
5) Thermistor
3) Connector 5P
3) Connector 7P
4) Remove 1 screw.
J4
ADRESS
EXIST
1
CUT 2
JA
ADRESS
EXIST
1
CUT 2
JA
2) Front metal plate cover
6) Side metal plate cover
2) Sensor
securing
plate
01_EN_3P191292-1E.fm Page 4 Monday, November 10, 2008 6:44 PM
