07
4. TIMING

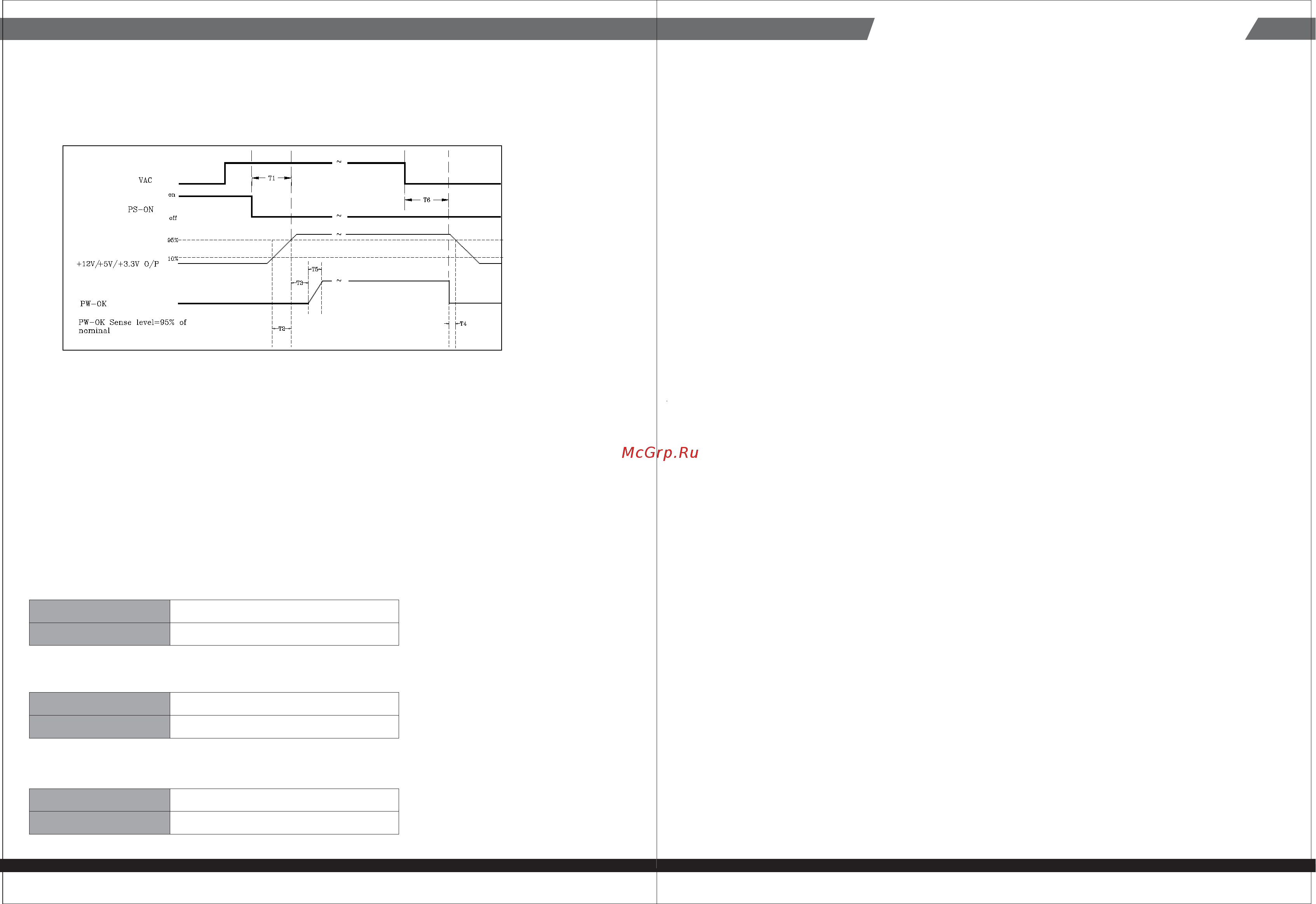

Figure 2. is a reference for signal timing for main power connector signals and rails.
4.1 Signal timing drawing
5. ENVIRONMENT
5.1 Operation
4.2 Hold up time
5.2 Shipping and Storage
5.3 Altitude
(1)T3: Power good signal turn on delay time (100ms~500ms)
(2)T4: Power good signal turn off delay time (1ms min)
(3)T2: Rise time (0.1~70ms)
(4)T6: Hold up time (17ms min) Tested at 75% of maximum load at 100-240VAC input.
When the power loss its input power, it shall maintain 17ms in regulation limit at normal
input voltage. (AC:115V/60Hz or 230V/50Hz)
Figure 2
Temperature 0°C to 40°C
Relative Humidity 10% to 90%, non-condensing
Temperature -20°C to 60°C
Relative Humidity 5% to 95%, non-condensing
Operating 10,000 FT max.
Storage 50,000 FT max.
08
6. SAFETY
7. ELECTROMAGNETIC COMPATIBILITY (EMC)
8. MTBF
9. MECHANICAL REQUIREMENTS
6.1 Underwriters Laboratory (UL) recognition.
8.1 MTBF (mean time between failures) calculation
9.1 Physical Dimension
7.1 IEC 61000-4-2 ESD LEVEL X20KV4.
7.2 IEC 61000-4-3 radiated electrical field requirement.
7.3 IEC 61000-4-4 BURST .
7.4 IEC 61000-4-5 surge Voltages
7.5 EN61000-3-2 harmonic current emissions.
7.6 EN55024 class B radio interference (CISPR 22)
7.7 FCC part 15, subpart J class B 115VAC operation.
6.2 The power supply must bear the German Bauart Mark from TUV.
STRIDER GOLD EVOLUTION SERIES
The power supply designed to meet UL 1950.
If applicable to sales in Japan or Europe, the power supply shall meet the require-
ments of EN 61000-3-2 class D and the guidelines for the suppression of harmonics in
appliances and general use equipment class D for harmonic line current content at
full-rated power.
The demonstrated MTBF shall be 100,000 hours of continuous operation at 25°C, full
load, and nominal line. The MTBF of the power supply be calculated in accordance
with MIL-HDBK-217F. The DC FAN is not included.
150 mm (W) × 86 mm (H) × 180mm (D)
