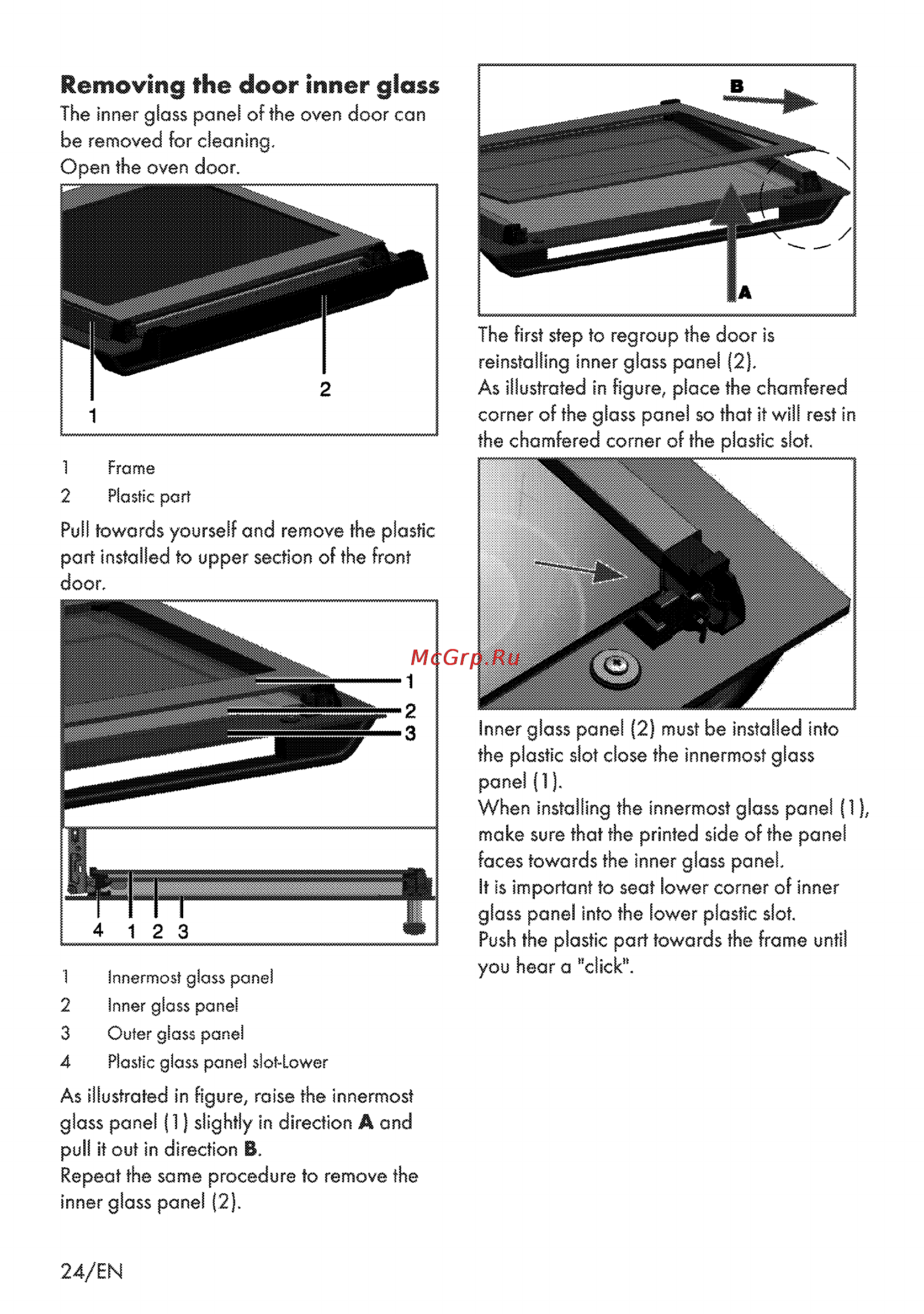

Removing the door Inner glass The inner glass panel of the oven door can be removed for cleaning Open the oven door The first step to regroup the door is reinstalling inner glass panel 2j As illustrated in figure place the chamfered corner of the glass panel so that it will rest in the chamfered corner of the plastic slot 1 Frame 2 Plastic part Pull towards yourself and remove the plastic part installed to upper section of the front door 1 Innermost glass panel 2 Inner glass panel 3 Outer glass panel 4 Plastic glass panel slot Lower As illustrated in figure raise the innermost glass panel 1 slightly in direction A and pull it out in direction B Repeat the same procedure to remove the inner glass panel 2 24 EN Inner glass panel 2 must be installed into the plastic slot close the innermost glass panel 1 When installing the innermost glass panel 1 make sure that the printed side of the panel faces towards the inner glass panel It is important to seat lower corner of inner glass panel into the lower plastic slot Push the plastic part towards the frame until you hear a click 1
