Kuppersberg FQ 601 B [13/48] Positioning

ENGLISH TECHNICAL PASSPORT

Gas hob

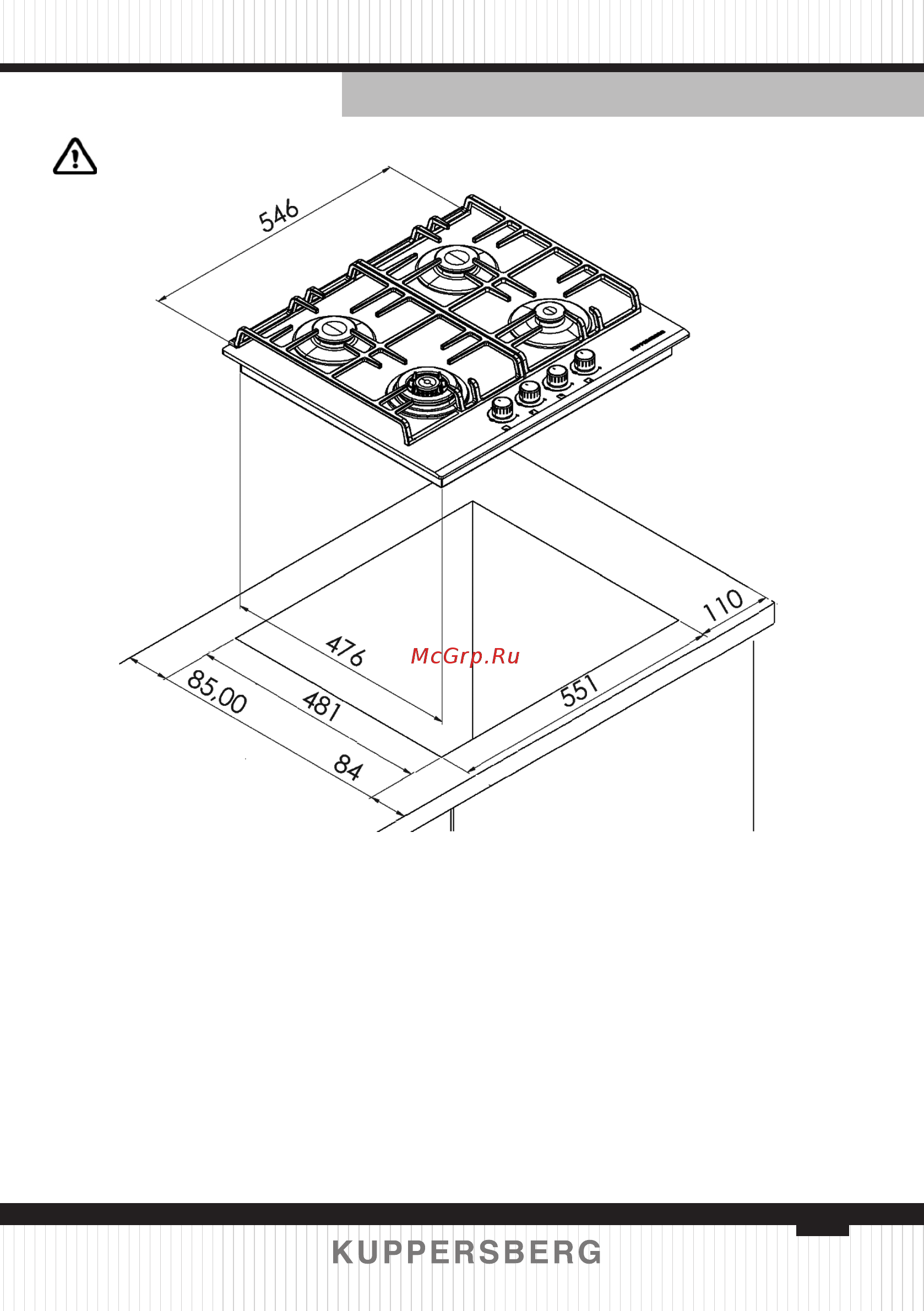

This appliance is to be built into

a kitchen unit or 600 mm worktop,

providing the following minium

distances are allowed:

Â The edges of the hob must be a

minimum distance of 60 mm from a side

or rear wall.

Â 700 mm between the highest

point of the hob surface (including

the burners) and the underside of any

horizontal surface directly above it.

Â 400 mm between the hob

surfaces, providing that the underside of

the horizontal surface is in line with the

outer edge of the hob. If the underside

of the horizontal surface is lower than

400 mm, then it must be at least 50 mm

away from the outer edges of the hob.

Â 50 mm clearance around the

appliance and between the hob surface

and any combustible materials.

POSITIONING
