2
TOUGHSwitch
™
PoE PRO Quick Start Guide
Hardware

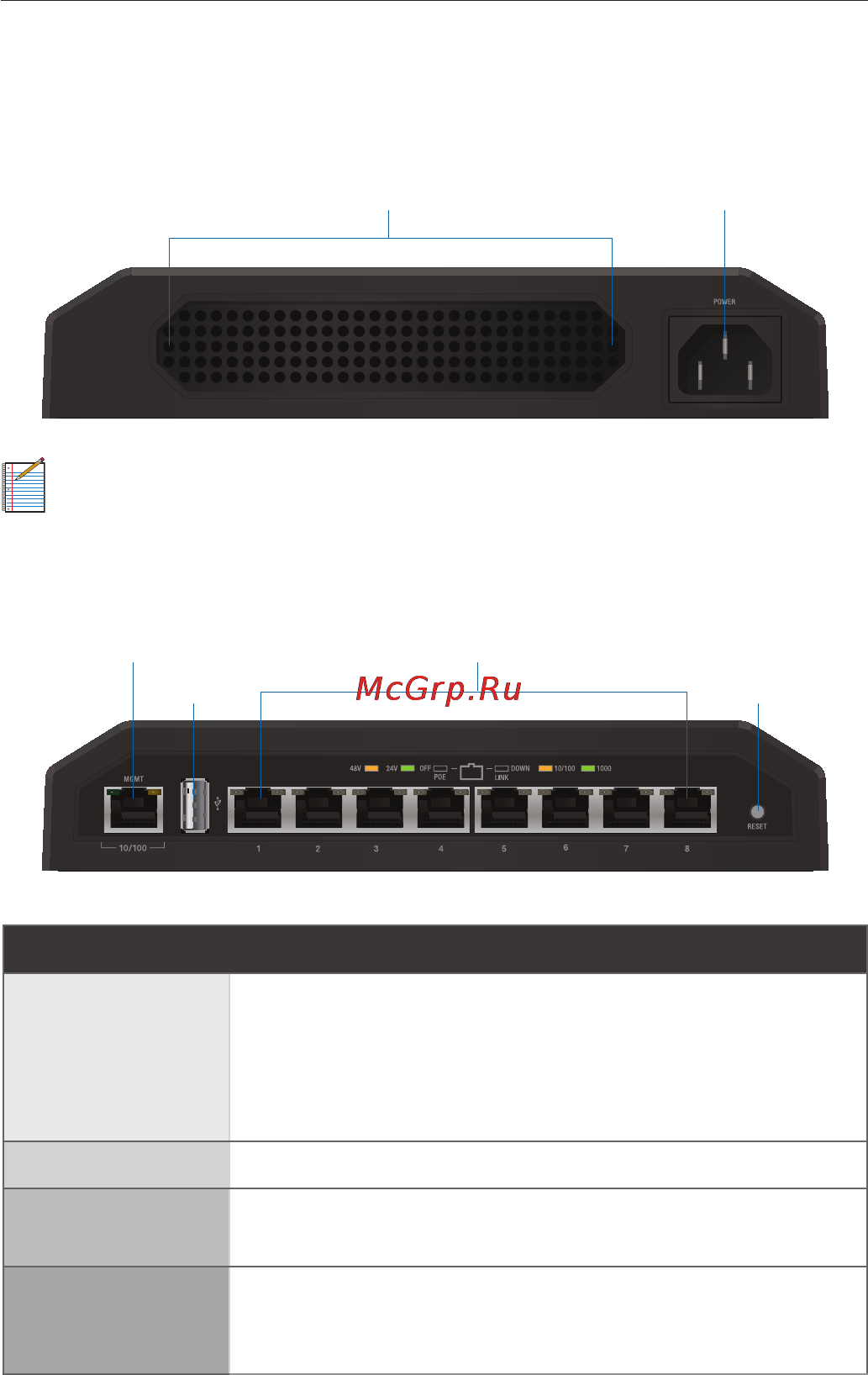

Back Panel
Power
Ventilation Holes
Note: There are additional ventilation holes on the top and
sides of the TOUGHSwitch.
Front Panel Ports
Management
USB Reset
1-8
Interface Description
Management
10/100 Mbps port for management. Traffic between
the Management port and numbered ports will
be limited to 10/100 Mbps and, under heavy
load, may cause performance degradation of the
TOUGHSwitch.
USB Reserved for future use.
1-8
10/100/1000 Mbps ports for switching and PoE (also
available for management by default).
Reset
To reset to factory defaults, press and hold the Reset
button for more than 10 seconds while the unit is
already powered on.
