Hardware Installation

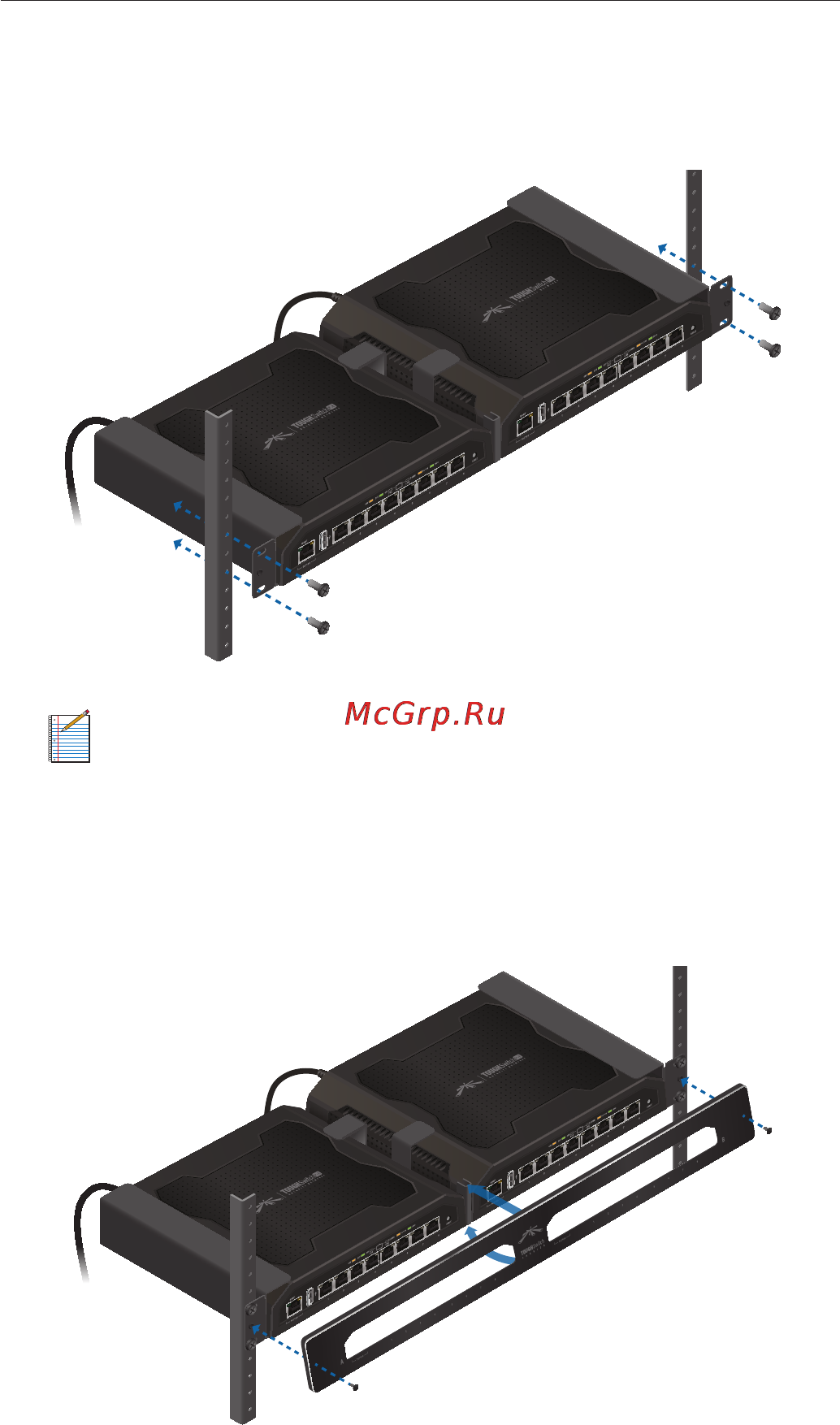

2. Attach the TOUGHSwitch PoE CARRIER to the rack using the
four #10-32 x 5/8" Phillips Screws. (If the rack has square slots,
then use the #10-32 x 5/8" Cage Nuts with the Phillips Screws.)
Note: Keep 20 mm of clearance next to the ventilation
holes for adequate airflow.
3. Attach the top portion of the faceplate at a slight angle,
and then snap on the bottom portion. Secure the faceplate
to the TOUGHSwitch PoE CARRIER using the two M3x8
FlatheadScrews.
